Growatt MOD 6000TL3-X 3 Phase on Grid 3000W 5000W 6000W 8000W Solar Inverter with Wifi Growatt Solar Inverter

Specifications

Place of Origin :

Anhui, China

Model Number :

MOD 6000TL3-X

Brand Name :

Growatt

Input Voltage :

1100V

Output Voltage :

220V/380V, 230V/400V (340-440V)

Output Current :

10.0A

Output Frequency :

50/60 Hz (45-55Hz/55-65 Hz)

Output Type :

Three Phase

Size :

425/387/147mm

Type :

DC/AC Inverters

Inverter Efficiency :

98.3%

Weight :

12.5kg

Start voltage :

160V

Nominal voltage :

580V

MPPT voltage range :

140V-1000V

No. of MPP trackers :

No. of PV strings per MPP tracker :

Adjustable power factor :

0.8leading...0.8lagging

THDi :

<3%

AC grid connection type :

3W+N+PE

MPPT efficiency :

99.9%

Operating temperature range :

-25°C ... +60°C

MOQ :

1 piece

Price :

$450-550 / piece

Description

Products Description

MOD 6000TL3-X

* Max. efficiency 98.6%

* OLED and Touch button

* Type II SPD on DC and AC side

* String Monitoring

* AFCI optional

Product Paramenters

Datasheet	MOD 6000TL3-X
Input data (DC)
Max. recommended PV power (for module STC)	9000W
Max. DC voltage	1100V
Start voltage	160V
Nominal voltage	580V
MPPT voltage range	140V-1000V
No. of MPP trackers	2
No. of PV strings per MPP tracker	1
Max. input current per MPP tracker	13A
Max. short-circuit current per MPP tracker	16A
Output data (AC)
AC nominal power	6000W
Max. AC apparent power	6600VA
Nominal AC voltage(range*)	220V/380V, 230V/400V (340-440V)
AC grid frequency(range*)	50/60 Hz (45-55Hz/55-65 Hz)
Max. output current	10.0A
Adjustable power factor	0.8leading…0.8lagging
THDi	<3%
AC grid connection type	3W+N+PE
Efficiency
MAX. efficiency	98.3%
European efficiency	97.5%
MPPT efficiency	99.9%
General data
Dimensions (W / H / D)	425/387/147mm
Weight	12.5kg
Operating temperature range	–25°C ... +60°C
Nighttime power consumption	< 1W
Topology	Transformerless
Cooling	Natural convection
Protection degree	IP66
Relative humidity	0~100%
Altitude	4000m
DC connection	H4/MC4(Optional)
AC connection	Connector
Display	OLED+LED/WIFI+APP
Interfaces: USB/RS485/WiFi /GPRS/LAN/RF	yes/yes/Optional/Optional/Optional/Optional
Warranty: 5 / 10 years	Yes/Optional
CE, VDE0126, Greece, EN50549, C10/C11, UTE C 15-712, IEC62116, IEC61727, IEC 60068, IEC 61683, CEI0-21, N4105, TOR Erzeuger G98/G99, G100, AS4777, UNE217001, UNE206007, PO12.2
* The AC voltage range and frequency range may vary depending on specific country grid standard. All specifications are subject to change without notice.

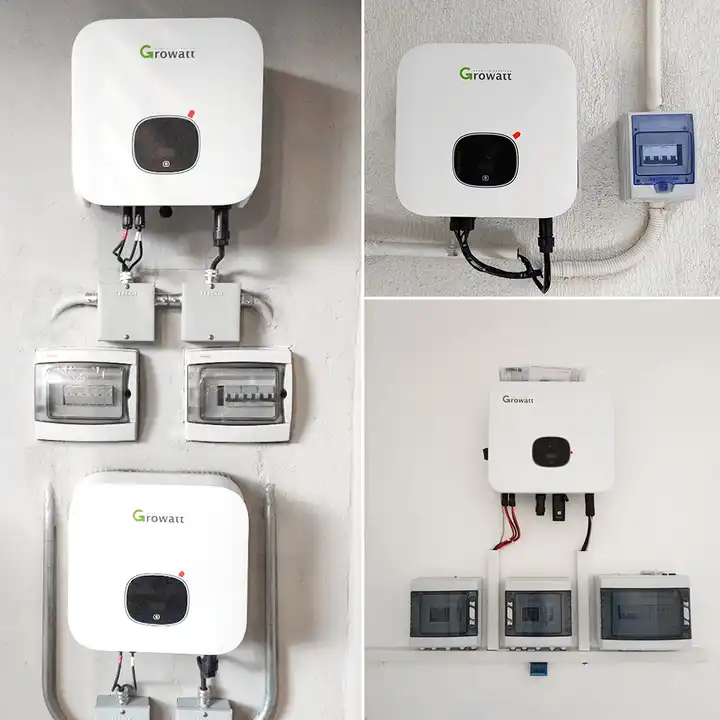

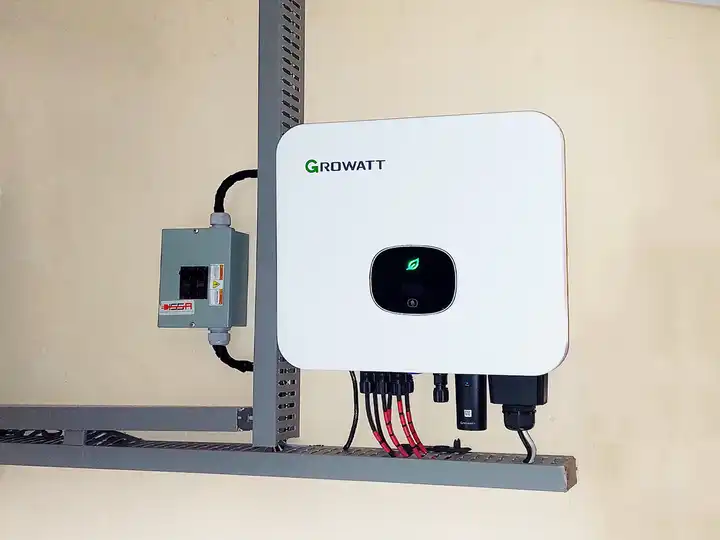

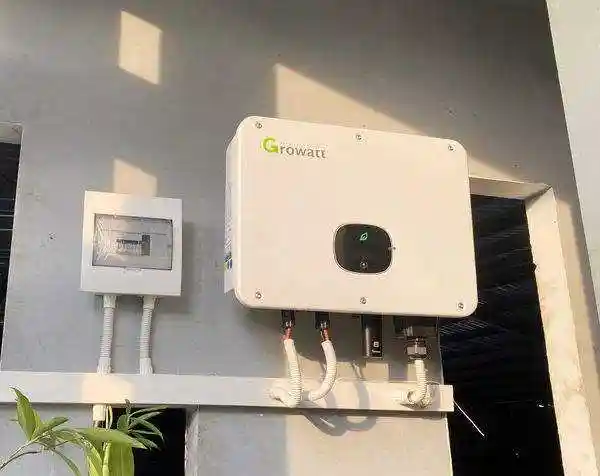

Project Case

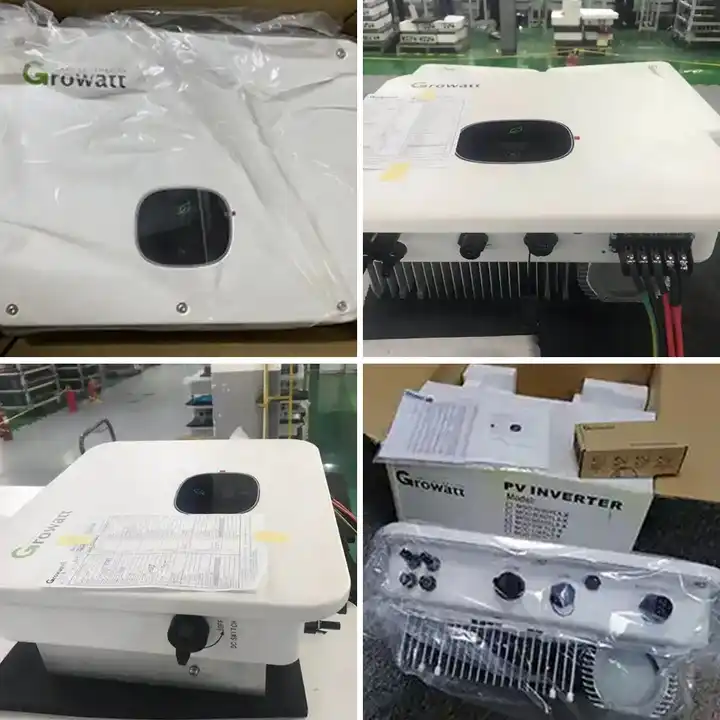

Packing & Delivery
