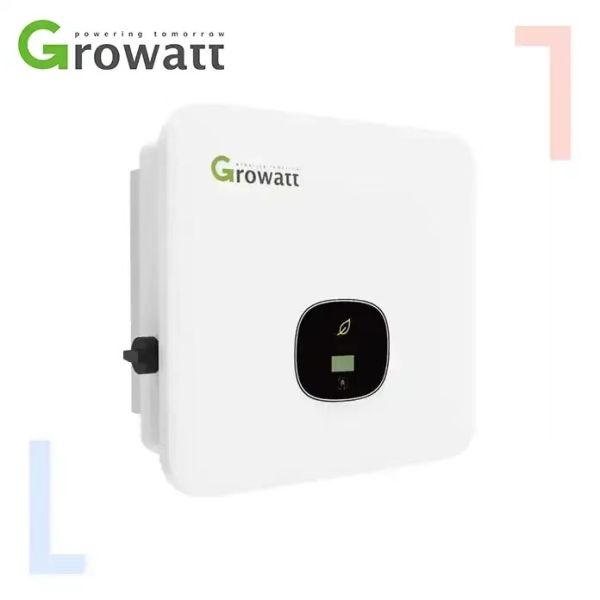

Growatt Solar Inverter 8KW MIN8000TL-X(E) Solar Product 8KW on Grid Growatt Solar Inverter for Smart Home

Specifications

Place of Origin :

Anhui, China

Model Number :

MIN8000TL-X

Brand Name :

Growatt

Input Voltage :

550 V

Output Voltage :

230V (180-280V)

Output Current :

11.9A

Output Frequency :

50 Hz / 60 Hz

Output Type :

Single

Size :

425*387*180mm

Type :

DC/AC Inverters

Inverter Efficiency :

97.0 %

Weight :

19kg

Topology :

Transformerless

Internal Consumption :

≤0.5W

Running Temperature :

-25 ~ +60 °C

Ingress Protection :

IP65

Noise Emission (Typical) :

< 46 dB

Cooling Concept :

Natural

Permissible Altitude (m) :

4000m

Display :

OLED+LED/WIFI+APP

Interface :

RS485/RS232/Wifi/LAN

Color :

white

MOQ :

1 piece

Price :

$460-500 / piece

Description

Products Description

Key Features

1.Maximum efficiency 98.1%

2. 2/3 MPP trackers

3.Type II SPD on DC side

4.Supports export control

5.Touch key and OLED display

Certificate

Product Paramenters

Datasheet	MIN7000TL-X(E)	MIN8000TL-X(E)	MIN9000TL-X	MIN10000TL-X
Input data(PV)
Max. recommended PV power (for module STC)	12000W	12000W	13500W	15000W
Max. DC voltage	600V
Start voltage	100V
Nominal voltage	360V
MPP voltage range	60-550V
No. of MPP trackers	2			3
No. of PV strings per MPP tracker	1/2			1/1/2
Max. input current per MPP tracker	13.5A/27A			13.5A/13.5A/27A
Max. short-circuit current per MPP tracker	16.9A/33.8A			16.9A/16.9A/33.8A
Output data(AC)
AC nominal power	7000W	8000W	9000W	10000W
Max. AC apparent power	7000VA	8000VA	9000VA	10000VA
Nominal AC voltage(range*)	Default:240V split-phase, optional:208V & 240V single phase , 183-228@208V 211-264V@240V
AC grid frequency(range*)	50Hz/60Hz(45Hz-55Hz/55Hz-65Hz)
Max. output current	33.5A	38.3A	43A	45.5A
Adjustable power factor	0.8leading.…0.8lagging
THD	<3%
AC grid connection type	Single phase
Efficiency
MAX.efficiency	98.1%
European efficiency	97.3%			97.6%
MPPT efficiency	99.5%
Profecfion devices
DC switch	Yes
DC reverse polarilty protection	Yes
AC/DC surge protection	Type III / Type III
Insulation resistance monitoring	Yes
AC short-circuit protection	Yes
Ground fauit monitoring	Yes
Grid monitoring	Yes
Anti-islanding protection	Yes
Residual-current monitoring unit	Yes
AFCI protection	Yes
Seneral data
Dimensions (W/H/D)	425/387/180mm
Weigh	18.2kg
Operating temperature range	-25℃ …+60℃
Nighttime power consumption	< 1W
Topolog	Transformerless
Cooling	Natural convection
Protection degree	IP 66
Relative humidity	0-100%
Altitude	4000m
DC Connection	H4/MC4(Optional
AC connection	Cable gland +OT terminal
Display	OLED+LED/WIFI+APP
Interfaces: RS485 / USB/Wi-Fi/GPRS/ RF/LAN	Yes/Yes/Optional/Optional/Optional /Optional
Wananty:5 yeas/10 yeans	Yes/Optional
CE, IEC 62116, IEC 61727,IEC62109,INMETRO,AS4777,UL1741,IEEE1547

Project Case

Product packaging

FAQ

1. Who are we?
We are based in Hefei, Anhui, China, established in 2018. We are proffesional Solar system and Products provider. For the past years, we have rich experience and lots of successful projects all around the world. We have whole supply chain on PV products and we have our own factory so we can provide OEM service for customer.

2. How can we guarantee quality?
We have proffesional technical team who can help customer to do the product test and technical trainning.Also, before mass order,we can have a sample order first.

3. What you can get from us?
Solar panels including the top brands and our own brand.Solar inverters including On-grid/Off-grid inverters and Hybrid inverters.Solar energy storage system including the batteries, the BMS platform and the integrated system.

4. Why choose us?
We have more than 10 years experience in PV industry. Also we sell the solar products all around the world since 2018.A proffesional team makes us having lots of successful projects during the past several years. Proffesinal technical team can maintain our service on technical support and after-sale service.Whole supply chain can maintain the requirments from customers.

5. Some features
Deliver Terms: EXW, FOB, CIF and etc.Payment Terms: T/T, L/C, MoneyGram, Paypal, WesternUnion and Cash.Export Ports: Ningbo,Shanghai, Shenzhen and Hongkong.
