Specifications
Brand Name :
DAWN
Model Number :
JKM580N-72HL4-V
Place of Origin :
Guangdong, China
Cell size :
182mmx182mm
Type :
Half Cell, N-TYPE
Panel Dimensions :
2278mm*1134mm*35mm
Panel Efficiency :
22.65%
Application :
Solar Power System
Product name :
Jjinko Solar Panel
Solar cell :
144 Cells
Junction Box :
IP68 Rated
Keyword :
Pv Module
Weight :
28kg
Frame :
Anodized Aluminium Alloy
OEM Order :
Acceptable
Name :
Jinko N-type 580w solar panel
Power :
565W-585W
MOQ :
10 pieces
Price :
$56-64 / piece
Description
Product Description

Jinko Solar Tiger Neo N-type 72HL4-( V) 565-585 Watt MONO-FACIAL MODULE N-Type Mono-crystalline Solar Panel
565-585 Watt Mono-facial Module N-Type 570w jinko Solar tiger Neo N-type Solar Panel
565-585 Watt Mono-facial Module N-Type 570w jinko Solar tiger Neo N-type Solar Panel
Cell Type N type Mono-crystalline
NO.of Half-cells 144 (6×24)
Dimensions 2278*1134*35mm (89.69*44.65*1.38 inch)
Weight 28kg (61.73 lbs)
Front Glass 3.2mm,Anti-Reflection Coating,
High Transmission, Low Iron, Tempered Glass
Frame Anodized Aluminium Alloy
Junction Box IP68 Rated
Output Cables TÜV 1x4.0mm2,(+) 400mm, (-) 200mm or Customized Length
Advantages of Tiger Neo N-type 72HL4-(V)
*Better light trapping and current collection to improve module power output and reliability
*The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID
*Certified to wishstand:wind load (2400 Pascal) and snow load (5400 Pascal)
*Excellent Anti-PID performance guarantee via optimized mass-production process and materials control
565-585 Watt Mono-facial Module N-Type 570w jinko Solar tiger Neo N-type Solar Panel

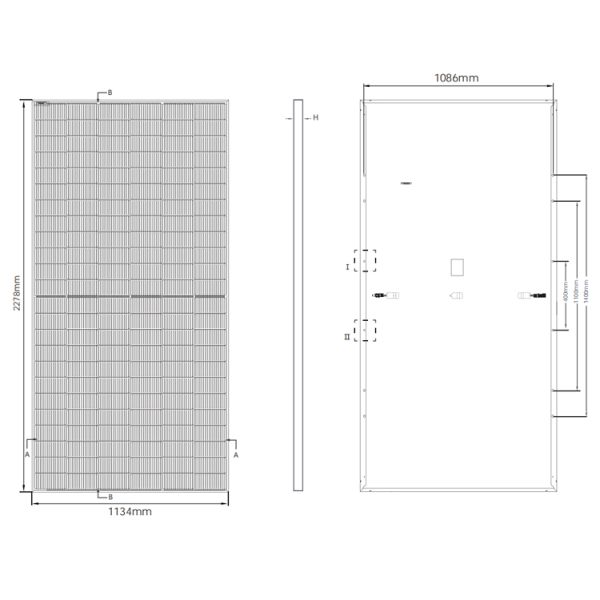

ENGINEER DRAWING
Jinko Solar Tiger Neo N-type 72HL4-( V) 565-585 Watt MONO-FACIAL MODULE N-Type Mono-crystalline Solar Panel
565-585 Watt Mono-facial Module N-Type 570w jinko Solar tiger Neo N-type Solar Panel

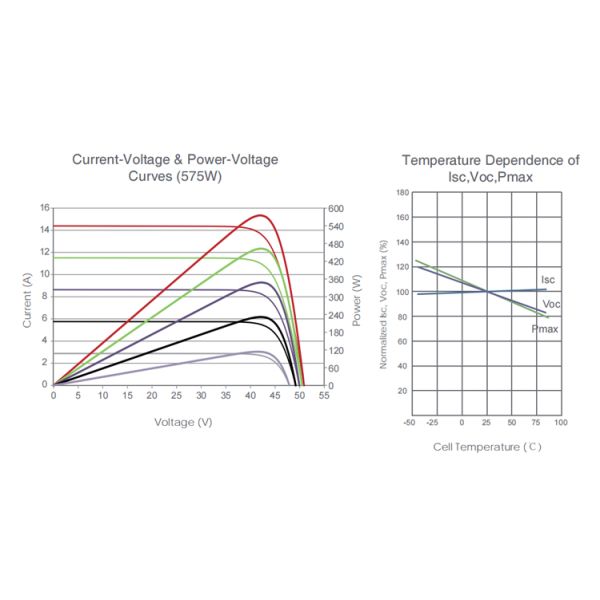

Electrical Performance&Temperature Dependence
Jinko Solar Tiger Neo N-type 72HL4-( V) 565-585 Watt MONO-FACIAL MODULE N-Type Mono-crystalline Solar Panel
565-585 Watt Mono-facial Module N-Type 570w jinko Solar tiger Neo N-type Solar Panel
Module Type
JKM565N-72HL4
JKM565N-72HL4-V
 JKM570N-72HL4
JKM570N-72HL4-V		 JKM575N-72HL4
JKM575N-72HL4-V		 JKM580N-72HL4
JKM580N-72HL4-V		 JKM585N-72HL4
JKM585N-72HL4-V
STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT
Maximum Power Pmax.(Wp) 565 425 570 429 575 430 580 436 585 440
Maximum Power Vmp(V) 41.92 39.38 42.07 39.53 42.2 39.60 42.37 39.69 42.52 39.81
Maximum Power Imp(A) 13.48 10.79 13.55 10.85 13.62 10.92 13.6 10.99 13.76 11.05
Open-circuit Voc(v) 50.60 48.60 50.74 48.20 50.88 48.33 51.02 48.46 51.16 48.60
Short-circuit Isc(A) 14.23 11.49 14.31 11.55 14.39 11.62 14.47 11.68 14.55 11.75
Module Efficiency 21.87%(STC) 22.07%(STC) 22.26%(STC) 22.45(STC) 22.65%(STC)
Operating Temperature(℃): -40℃~+85℃
Maximum Series Fuse Rating: 25A
Maximum System Voltage: 1000/1500VDC (IEC)
Temperature Coefficients of Pmax: -0.30%/℃
Power Tolerance: 0~+3%
Temperature Coefficients of Voc: -0.25/℃
Nominal Operating Cell Temperature(NOCT): 45±2℃
Temperature Coefficients of Isc: 0.046%/℃
More details and informations please contact us by WhatsApp/WeChat:+86 184 7691 5685
565-585 Watt Mono-facial Module N-Type 570w jinko Solar tiger Neo N-type Solar Panel
Packaging&Shipping
Packaging&Shipping
565-585 Watt Mono-facial Module N-Type 570w jinko Solar tiger Neo N-type Solar Panel
Model Jinko JKM565N -72HL4-JKM585N -72HL4
Modules per box 31pcs/pallets, 62pcs/stack
Modules per 40' HQ container 620PCS

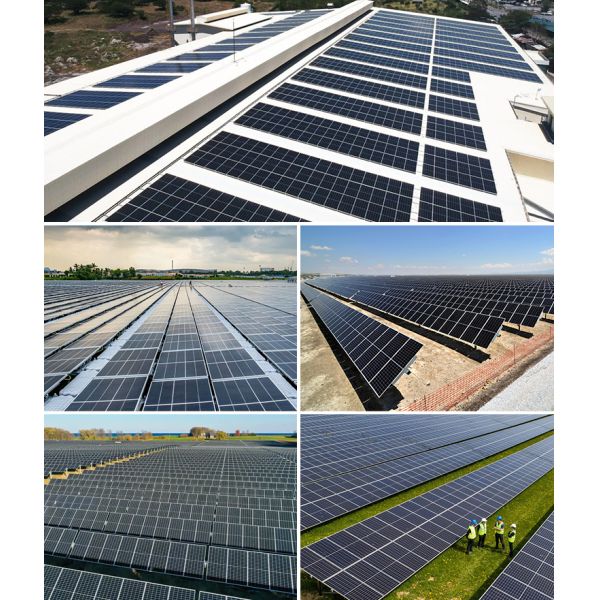

Application
Application
565-585 Watt Mono-facial Module N-Type 570w jinko Solar tiger Neo N-type Solar Panel
Installation Instructions
Installation Instructions
565-585 Watt Mono-facial Module N-Type 570w jinko Solar tiger Neo N-type Solar Panel
565-585 Watt Mono-facial Module N-Type 570w jinko Solar tiger Neo N-type Solar Panel
Certifications
Certifications
565-585 Watt Mono-facial Module N-Type 570w jinko Solar tiger Neo N-type Solar Panel
