Specifications
Brand Name :
Trina
Model Number :
Trina-460w
Place of Origin :
Guangdong, China
Cell size :
166mmx166mm
Type :
PERC, Half Cell, Bifacial, Double-glass, All Black, MWT, IBC, HJT, hbc, Flexible, BIPV
Panel Dimensions :
83.0 * 41.3 * 1.57 in
Panel Efficiency :
20.8%
Cell Type :
Mono-crystalline 166mm
Cell Arrangement :
144 cells (6 * 24)
Dimensions :
2102 *1040*35 mm (82.76 *40.94 * 1.38 inches)
Weight :
24.0 kg ( 52.9lb)
Front Cover :
3.2 mm (0.13 inches)
Frame :
35 mm ( 1.38 inches) Anodized Aluminium Alloy
J-Box :
IP68, 3 bypass diodes
Cable :
4 mm 2 (IEC), 12 AWG
Application Classification :
Class A
Product name :
Sola Panel
MOQ :
10000 watts
Price :
$0.10-0.11 / watt
Description
Product Description
Product Description
420W 460W 550W 585W 700W China Manufacturer Wholesale Trina PV Module 9BB 10BB Half-cut 144cell Mono Solar Panel
420W 460W 550W 585W 700W China Manufacturer Wholesale Trina PV Module 9BB 10BB Half-cut 144cell Mono Solar Panel
BIFACIAL DUAL GLASS 390W-415W 144 HALF-CELL MBB MODULE
Peak Power Watts-P MAX (Wp)*
435
440
445
450
455
460
Maximum Power Voltage-V MPP (V)
40.5
40.7
40.8
41.0
41.2
41.3
Maximum Power Current-I MPP (A)
10.74
10.82
10.90
10.98
11.06
11.13
Open Circuit Voltage-V OC (V)
49.0
49.2
49.4
49.6
49.8
50.0
Short Circuit Current-I SC (A)
11.31
11.39
11.46
11.53
11.61
11.68
Module Efficiency η m (%)
19.9
20.1
20.4
20.6
20.8
21.0
Power Output Tolerance-P MAX (W)
0 ~ +5
NMOT (Nominal Moudule Operating Temperature)
41°C (±3°C)
Temperature Coefficient of P MAX
-0.35%/°C
Temperature Coefficient of V OC
-0.25%/°C
Temperature Coefficient of I SC
0.04%/°C
Operational Temperature
-40~+85°C
Maximum SystemVoltage
1500V DC (IEC) 1500V DC (UL)
STC: Irradiance 1000W/m 2 , Cell Temperature 25°C, Air Mass AM1.5.
Measuring tolerance: ±3%
Product display
Product display
420W 460W 550W 585W 700W China Manufacturer Wholesale Trina PV Module 9BB 10BB Half-cut 144cell Mono Solar Panel
Glass
*Anti Reflective Glass
*Self-cleaning function
*Module efficiency is increased by 2%
*Service life is as long as25years(30years optional)
*Translucency of normal luminance is increased by 2%

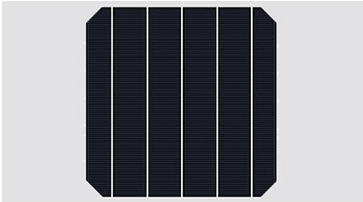

Solar Cell
* Anti-PID
* Appearance Consistency
* High Efficiency PV Cells
*Color sorting ensure consistent appearance on each module
420W 460W 550W 585W 700W China Manufacturer Wholesale Trina PV Module 9BB 10BB Half-cut 144cell Mono Solar Panel
420W 460W 550W 585W 700W China Manufacturer Wholesale Trina PV Module 9BB 10BB Half-cut 144cell Mono Solar Panel

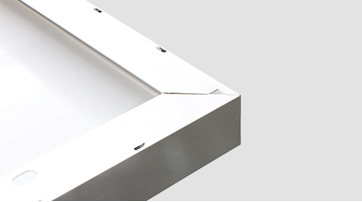

Frame
* Conventional frame
* Seal-lip designglue injection
* Silver or black frames are optional
* Serrated-clip design tensile strength
*Boost bearing capability and prolong service life

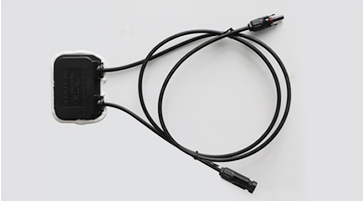

Junction box
*Heat dissipation
*Long service life
*IP68 protection level
*Quality diode ensures module running safety
*Conventional standalone edition and engineering custom edition
420W 460W 550W 585W 700W China Manufacturer Wholesale Trina PV Module 9BB 10BB Half-cut 144cell Mono Solar Panel
Our Factory
Our Factory
420W 460W 550W 585W 700W China Manufacturer Wholesale Trina PV Module 9BB 10BB Half-cut 144cell Mono Solar Panel
420W 460W 550W 585W 700W China Manufacturer Wholesale Trina PV Module 9BB 10BB Half-cut 144cell Mono Solar Panel
420W 460W 550W 585W 700W China Manufacturer Wholesale Trina PV Module 9BB 10BB Half-cut 144cell Mono Solar Panel
420W 460W 550W 585W 700W China Manufacturer Wholesale Trina PV Module 9BB 10BB Half-cut 144cell Mono Solar Panel
Installation Instructions
Installation Instructions
420W 460W 550W 585W 700W China Manufacturer Wholesale Trina PV Module 9BB 10BB Half-cut 144cell Mono Solar Panel
100% Cells Sorting
Ensure Colour and Power Difference.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.
100% Inspection
Before and After Lamination.
Most stringent acceptance criteria and tightest tolerance,
Intelligent alarm and stop mechanism in case of any deviation or errors.
420W 460W 550W 585W 700W China Manufacturer Wholesale Trina PV Module 9BB 10BB Half-cut 144cell Mono Solar Panel
420W 460W 550W 585W 700W China Manufacturer Wholesale Trina PV Module 9BB 10BB Half-cut 144cell Mono Solar Panel
100% EL Testing
Before and Following Lamination
Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and
panel.
100% Optimal Testing
Ensure 3% Positive Power Tolerance
Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow
constantly.
420W 460W 550W 585W 700W China Manufacturer Wholesale Trina PV Module 9BB 10BB Half-cut 144cell Mono Solar Panel

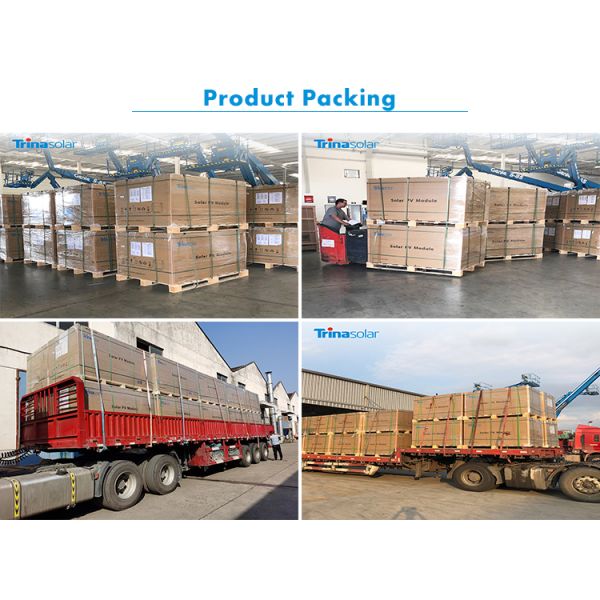

Product packaging
Product packaging
420W 460W 550W 585W 700W China Manufacturer Wholesale Trina PV Module 9BB 10BB Half-cut 144cell Mono Solar Panel
Model
SW460M-144
Modules per box
30 pieces
Modules per 40' container
660 pieces

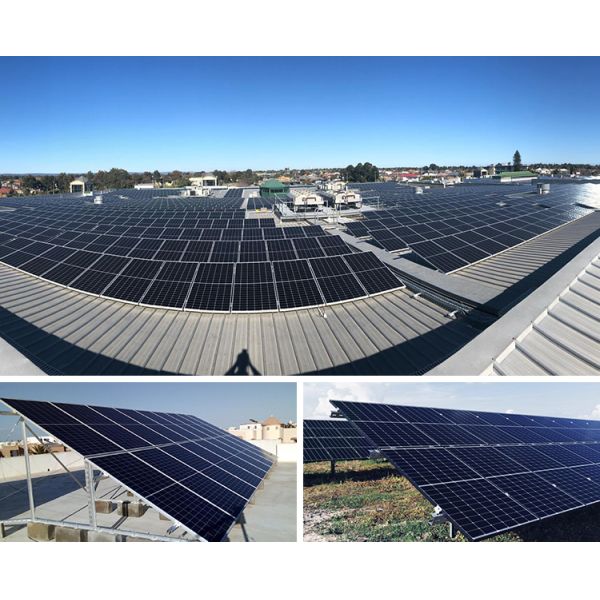

Application
Application
420W 460W 550W 585W 700W China Manufacturer Wholesale Trina PV Module 9BB 10BB Half-cut 144cell Mono Solar Panel
Company Profile
Company Profile
420W 460W 550W 585W 700W China Manufacturer Wholesale Trina PV Module 9BB 10BB Half-cut 144cell Mono Solar Panel
Certifications
Certifications
420W 460W 550W 585W 700W China Manufacturer Wholesale Trina PV Module 9BB 10BB Half-cut 144cell Mono Solar Panel
