Specifications
Brand Name :
Trina
Model Number :
TSM-NEG9RC.27
Place of Origin :
Guangdong, China
Cell size :
182*210mm
Type :
N-TYPE, TOPCON, Bifacial, Double-glass, Half Cell
Panel Dimensions :
1762*1134*30mm
Panel Efficiency :
22.3%
Product name :
Photovoltaic Solar Panels
Application :
Home Use
Keyword :
Trina Solar Panel
Certificate :
TUV/IEC61215/IEC61730/CE
Frame :
30mm(1.18inches)Anodized Aluminium Alloy. Black
Junction Box :
IP 68 Rated
Connector :
M C4 EVO2 / TS4*
Solar cell :
144cells
Name :
trina vertex solar panels
Warranty :
30 years
MOQ :
20 pieces
Price :
$45.60 / piece
Description
Product Description

Trina 700W 710W PV Module Neg9rc.27 435Wp 440w 450W 420Watt Bifacial Double Glass Monocrystalline Solar Panels
Trina 700W 710W PV Module Neg9rc.27 435Wp 440W 450W 420Watt Bifacial Double Glass Monocrystalline Solar Panels
Product Parameter

Solar Cells N-type Monocrystalline
NO. of cells 144 cells

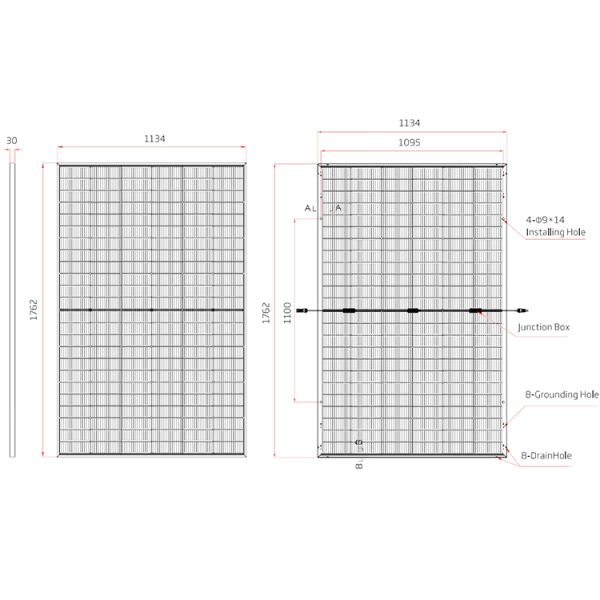

Module Dimensions 1762*1134*30 mm (69.06*43.15*1.18 inches)
Weight 21.0 kg (46.30 lb)
Front Glass 1.6 mm (0.06 inches),High Transmission, AR Coated Heat Strengthened Glass
Encapsulant material POE/EVA
Back Glass 1.6 mm (0.06 inches), Heat Transmission,Heat Strengthened Glass
ELECTRICAL DATA (STC & NOCT )
Testing Condition STC NOCT STC NOCT STC NOCT
Peak Power Watts-PMAX(Wp) 415 317 420 321 425 325
Maximum Power Voltage-VMPP(V 42.1 39.3 42.5 39.7 42.9 40.0
Maximum Power Current-IMPP(A) 9.86 8.03 9.89 8.07 9.92 8.09
Open Circuit Voltage-VOC(V 50.1 47.6 50.5 47.9 50.9 48.3
Short Circuit Current-ISC(A) 10.50 8.46 10.53 8.49 10.56 8.51
Module Efficiency η m (%) 20.8 21.0 21.3
Power Tolerance-PMAX(W) 0 ~ +5
ELECTRICAL DATA (STC & NOCT )
Testing Condition STC NOCT STC NOCT STC NOCT STC NOCT
Peak Power Watts-PMAX(Wp) 430 328 438 332 440 336 445 338
Maximum Power Voltage-VMPP(V 43.2 40.4 43.6 40.7 44.0 41.0 44.3 41.3
Maximum Power Current-IMPP(A) 9.96 8.11 9.99 8.15 10.01 8.17 10.05 8.20
Open Circuit Voltage-VOC(V 51.4 48.8 51.8 49.2 52.2 49.5 52.6 49.9
Short Circuit Current-ISC(A) 10.59 8.53 10.64 8.57 10.67 8.60 10.71 8.63
Module Efficiency η m (%) 21.5 21.8 22.0 22.3
Power Tolerance-PMAX(W) 0 ~ +5
