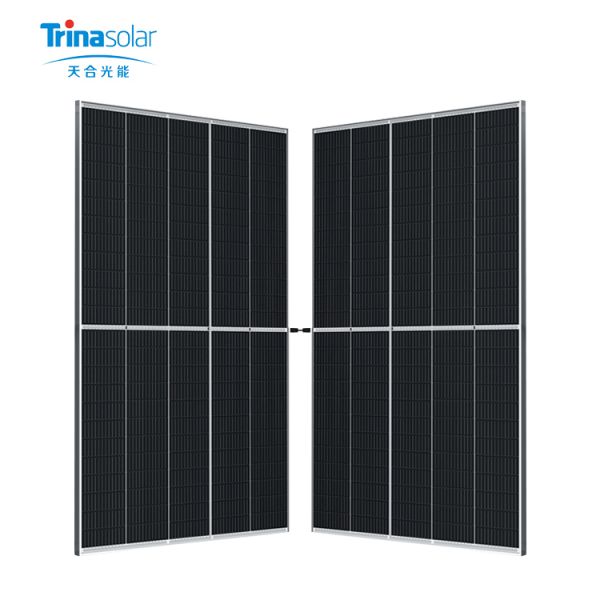

30 Years Warranty Chinese Tier 1 Brand Trina 400W 410W Half Cell Solar Panel Photovoltaic Module
30 Years Warranty Chinese Tier 1 Brand Trina 400W 410W Half Cell Solar Panel Photovoltaic Module
30 Years Warranty Chinese Tier 1 Brand Trina 400W 410W Half Cell Solar Panel Photovoltaic Module
30 Years Warranty Chinese Tier 1 Brand Trina 400W 410W Half Cell Solar Panel Photovoltaic Module
30 Years Warranty Chinese Tier 1 Brand Trina 400W 410W Half Cell Solar Panel Photovoltaic Module
30 Years Warranty Chinese Tier 1 Brand Trina 400W 410W Half Cell Solar Panel Photovoltaic Module
30 Years Warranty Chinese Tier 1 Brand Trina 400W 410W Half Cell Solar Panel Photovoltaic Module
30 Years Warranty Chinese Tier 1 Brand Trina 400W 410W Half Cell Solar Panel Photovoltaic Module
30 Years Warranty Chinese Tier 1 Brand Trina 400W 410W Half Cell Solar Panel Photovoltaic Module
30 Years Warranty Chinese Tier 1 Brand Trina 400W 410W Half Cell Solar Panel Photovoltaic Module
30 Years Warranty Chinese Tier 1 Brand Trina 400W 410W Half Cell Solar Panel Photovoltaic Module
30 Years Warranty Chinese Tier 1 Brand Trina 400W 410W Half Cell Solar Panel Photovoltaic Module
30 Years Warranty Chinese Tier 1 Brand Trina 400W 410W Half Cell Solar Panel Photovoltaic Module
30 Years Warranty Chinese Tier 1 Brand Trina 400W 410W Half Cell Solar Panel Photovoltaic Module
Specifications
Brand Name :
TRINA
Model Number :
TSM-DE09
Place of Origin :
Jiangsu, China
Cell size :
210mmx210mm
Type :
PERC, Half Cell, All Black
Panel Dimensions :
1754*1096*35mm(69.06*43.15*1.38in)
Panel Efficiency :
21.10%
Brand Name: :
Trina solar
Weight :
21kg
Technology :
Multi-busbar technology
Frame :
Anodized Aluminium Alloy
Junction Box :
IP68,3 diodes
Output Cables :
4mm, Length 300mm
Connector type :
M C4 compatible
Efficiency :
21%
Application :
Solar Home System
Warranty :
30 years
MOQ :
100000 watts
Price :
$0.24-0.28 / watt
Description
Product Description
Product Description
30 Years Warranty Chinese Tier 1 Brand Trina 400W 410W Half Cell Solar Panel Photovoltaic Module
30 Years Warranty Chinese Tier 1 Brand Trina 400W 410W Half Cell Solar Panel Photovoltaic Module
30 Years Warranty Chinese Tier 1 Brand Trina 400W 410W Half Cell Solar Panel Photovoltaic Module
30 Years Warranty Chinese Tier 1 Brand Trina 400W 410W Half Cell Solar Panel Photovoltaic Module
Specifications
Specifications
ELECTRICAL DATA (STC)
Peak Power Watts-PMAX (Wp)
390
395
400
405
Maximum Power Voltage-VMPP (V)
33.8
34.0
34.2
34.4
Maximum Power Current-IMPP (A)
11.54
11.62
11.70
11.77
Open Circuit Voltage-VOC (V)
40.8
41.0
41.2
41.4
Short Circuit Current-ISC (A)
12.14
12.21
12.28
12.34
Module Effciency η m (%)
20.3
20.5
20.8
21.1
Power Tolerance-PMAX (W)
0 ~ +5
Front Glass
3.2mm (0.13 inches), High Transmission, AR Coated Heat Strengthened Glass
Frame
30mm(1.18 inches) Anodized Aluminium Alloy

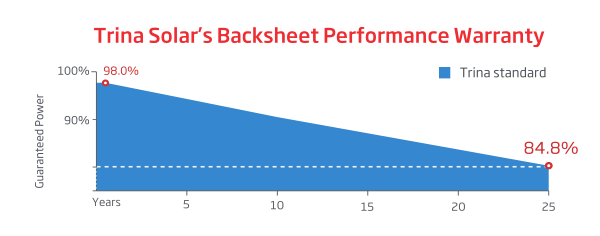

WARRANTY
12 year Product Workmanship Warranty,25 year Power Warranty
PACKAGING CONFIGURATION
Modules per box: 36 pieces,Modules per 40’ container: 936 pieces
ELECTRICAL DATA (NOCT)
Maximum Power-PMAX (Wp)
295
298
302
306
Maximum Power Voltage-VMPP (V)
31.8
32.0
32.2
32.5
Maximum Power Current-IMPP (A)
9.26
9.32
9.38
9.41
Open Circuit Voltage-VOC (V)
38.4
38.6
38.8
38.9
Short Circuit Current-ISC (A)
9.78
9.84
9.90
9.95
Module Dimensions
1754 ×1096×30 mm (69.06×43.15×1.18 inches)
Factory Display
Factory Display
30 Years Warranty Chinese Tier 1 Brand Trina 400W 410W Half Cell Solar Panel Photovoltaic Module
30 Years Warranty Chinese Tier 1 Brand Trina 400W 410W Half Cell Solar Panel Photovoltaic Module
30 Years Warranty Chinese Tier 1 Brand Trina 400W 410W Half Cell Solar Panel Photovoltaic Module
30 Years Warranty Chinese Tier 1 Brand Trina 400W 410W Half Cell Solar Panel Photovoltaic Module
Product Packaging
Product Packaging
30 Years Warranty Chinese Tier 1 Brand Trina 400W 410W Half Cell Solar Panel Photovoltaic Module
30 Years Warranty Chinese Tier 1 Brand Trina 400W 410W Half Cell Solar Panel Photovoltaic Module
30 Years Warranty Chinese Tier 1 Brand Trina 400W 410W Half Cell Solar Panel Photovoltaic Module
Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing
with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.
