Specifications
Brand Name :
Jinko
Model Number :
JKM460N-60HL4
Place of Origin :
Anhui, China
Cell size :
182mmx182mm
Type :
Half Cell, N-TYPE
Panel Dimensions :
1903mm*1134mm*30mm
Panel Efficiency :
22.24%
Application :
Solar Power System
Product name :
Jinko Solar Panel
Solar cell :
120 Cells
Junction Box :
IP68 Rated
Keyword :
Pv Module
Weight :
24.2kg
Frame :
Anodized Aluminium Alloy
OEM Order :
Acceptable
Name :
Jinko N-type 480w solar panel
Power :
460W-480W
MOQ :
16600 watts
Price :
$0.08-0.10 / watt
Description
Product Description

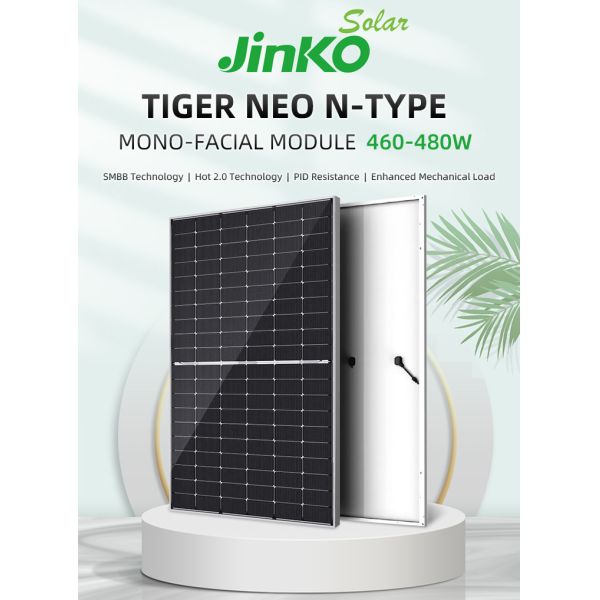

Jinko Solar Tiger Neo N-type 60HL4-( V) 460-480 Watt MONO-FACIAL MODULE N-Type Mono-crystalline Solar Panel
Photovoltaic Pv Panels 460w Jinko Solar Module 460w 465w 480w Tracking Solar Panel for Home Residential Use
Cell Type
N type Mono-crystalline
No.of Half-cells
120 (6×20)
Dimensions
1903*1134*30mm (74.92*44.65*1.18 inch)
Weight
24.2kg (53.35 lbs)
Front Glass
3.2mm,Anti-Reflection Coating,
High Transmission, Low Iron, Tempered Glass
Frame
Anodized Aluminium Alloy
Junction Box
IP68 Rated
Output Cables
TÜV 1x4.0mm2,(+) 400mm, (-) 200mm or Customized Length
Advantages of Tiger Neo N-type 60HL4-(V)
*Better light trapping and current collection to improve module power output and reliability
*The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID
*Certified to wishstand:wind load (2400 Pascal) and snow load (5400 Pascal)
*Excellent Anti-PID performance guarantee via optimized mass-production process and materials control
Photovoltaic Pv Panels 460w Jinko Solar Module 460w 465w 480w Tracking Solar Panel for Home Residential Use

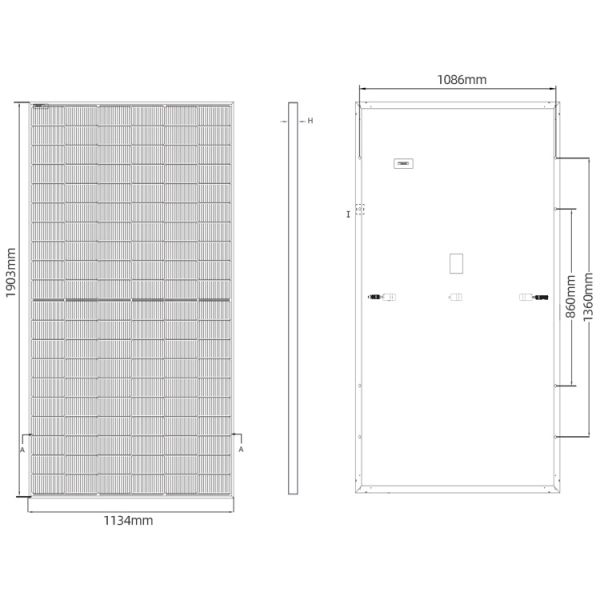

ENGINEER DRAWING
Jinko Solar Tiger Neo N-type 60HL4-( V) 460-480 Watt MONO-FACIAL MODULE N-Type Mono-crystalline Solar Panel
Photovoltaic Pv Panels 460w Jinko Solar Module 460w 465w 480w Tracking Solar Panel for Home Residential Use

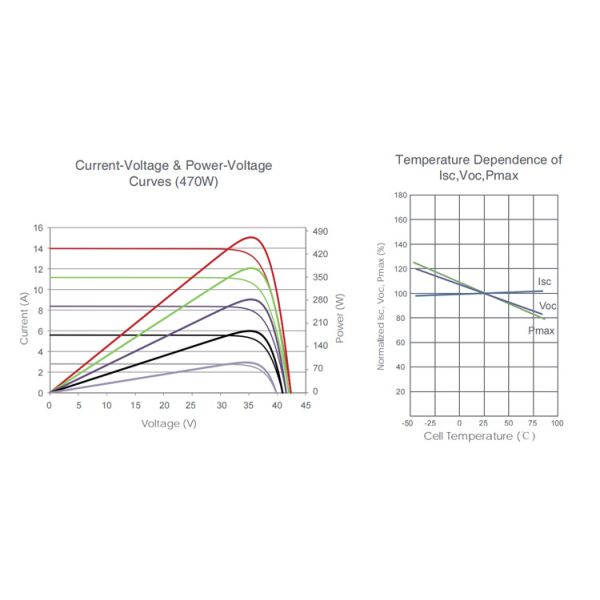

Electrical Performance&Temperature Dependence
Jinko Solar Tiger Neo N-type 60HL4-( V) 460-480 Watt MONO-FACIAL MODULE N-Type Mono-crystalline Solar Panel
Photovoltaic Pv Panels 460w Jinko Solar Module 460w 465w 480w Tracking Solar Panel for Home Residential Use
Module Type
JKM460N-60HL4
JKM460N-60HL4-V
JKM465N-60HL4
JKM465N-60HL4-V
JKM470N-60HL4
JKM470N-60HL4-V
JKM475N-60HL4
JKM475N-60HL4-V
JKM480N-60HL4
JKM480N-60HL4-V
STC
NOCT
STC
NOCT
STC
NOCT
STC
NOCT
STC NOCT
Pmax.(Wp)
460
346
465
350
470
353
475
357
480 361
Vmp(V)
34.72
32.60
34.89
32.77
35.05
32.94
35.21
33.10
35.38 32.27
Imp(A)
13.25
10.61
13.33
10.67
13.41
10.73
13.49
10.79
13.57 10.85
Voc(v)
42.05
39.94
42.22
40.10
42.38
40.25
42.54
40.41
42.71 40.57
Isc(A)
13.99
11.29
14.07
11.36
14.15
11.42
14.23
11.49
14.31 11.55
Module Efficiency
21.32%(STC)
21.55%(STC)
21.78(STC)
22.01%(STC)
22.24%(STC)
Operating Temperature(℃): -40℃~+85℃
Maximum System Voltage: 1000/1500VDC (IEC)
Maximum Series Fuse Rating: 25A
Power Tolerance: 0~+3%
Temperature Coefficients of Pmax: -0.29%/℃
Temperature Coefficients of Voc: -0.25/℃
Temperature Coefficients of Isc: 0.045%/℃
Nominal Operating Cell Temperature(NOCT): 45±2℃
Photovoltaic Pv Panels 460w Jinko Solar Module 460w 465w 480w Tracking Solar Panel for Home Residential Use
Photovoltaic Pv Panels 460w Jinko Solar Module 460w 465w 480w Tracking Solar Panel for Home Residential Use
Model
Jinko JKM460N -60HL4-JKM480N -60HL4
Modules per box
36pcs/pallets, 72pcs/stack,
Modules per 40' HQ container
864PCS
Photovoltaic Pv Panels 460w Jinko Solar Module 460w 465w 480w Tracking Solar Panel for Home Residential Use
Photovoltaic Pv Panels 460w Jinko Solar Module 460w 465w 480w Tracking Solar Panel for Home Residential Use

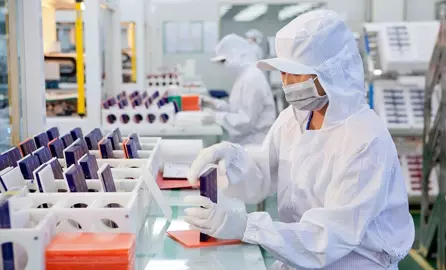

100% Cells Sorting
Ensure Colour and Power Difference.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.
100% Inspection
Before and After Lamination.
Most stringent acceptance criteria and tightest tolerance,
Intelligent alarm and stop mechanism in case of any deviation or errors.
Photovoltaic Pv Panels 460w Jinko Solar Module 460w 465w 480w Tracking Solar Panel for Home Residential Use
Photovoltaic Pv Panels 460w Jinko Solar Module 460w 465w 480w Tracking Solar Panel for Home Residential Use

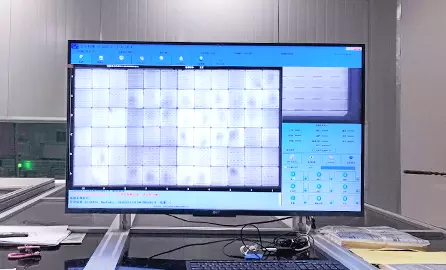

100% EL Testing
Before and Following Lamination
Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and
panel.

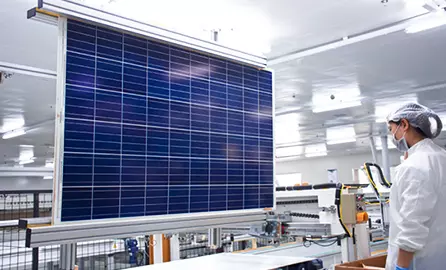

100% Optimal Testing
Ensure 3% Positive Power Tolerance
Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow
constantly.
