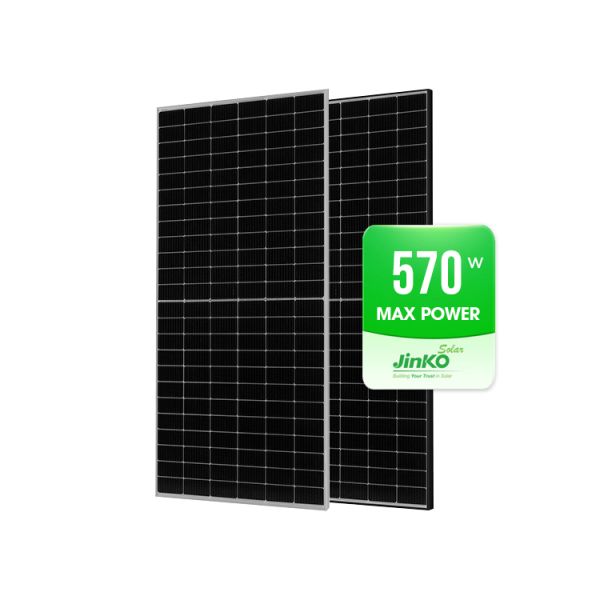

Jinko Monocrystalline High Efficiency Tiger Pro Pannelli Solari 550W 540W PV Panels Jinko 550 540 Solar Panels JKM540M-72HL4

Specifications

Brand Name :

Jinko

Model Number :

JKM550-570M-72HL4

Place of Origin :

Anhui, China

Cell size :

182mmx182mm

Type :

PERC, Half Cell

Panel Dimensions :

2278*1134*30mm

Panel Efficiency :

22.07%

Glass :

3.2mm AR Coating Tempered Glass

Junction Box :

IP68,with Bypass Diodes

Connector :

PV Compatiple

Application :

Solar Power System

OEM Order :

Acceptable

Brand :

Jinko Solar

Solar cell :

Half Cut Cell

Product name :

Half Cell Monocrystalline Solar Panel

Weight :

27kg

Keyword :

Jinko Tiger Pro Solar Panel

MOQ :

100000 watts

Price :

$0.10-0.12 / watt

Description

Product Description

Tiger Pro 72HC 550-570 Watt MONO-FACIAL MODULE P-Type Solar Panel

High Efficiency Jinko 530w 550W A-grade Monocrystalline Solar Power Panel with Certification for House Energy System

Cell Type	P type Mono-crystalline
NO.of Half-cells	144 (6×24)
Dimensions	2278113430mm (89.69×44.65×1.18 inch)
Weight	27 KG (59.52 lbs)
Front Glass	3.2mm,Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
Frame	Anodized Aluminium Alloy
Output Cables	TÜV 1x4.0mm2,(+) 400mm, (-) 200mm or Customized Length
Junction Box	IP68 Rated

KEY FEATURES:

Multi Busbar Technology
Better light trapping and current collection to improve module power output and reliability.

Longer Life-time Power Yield
0.55% annual power degradation and 25 year linear power warranty.

Reduced Hot Spot Loss
Optimized electrical design and lower operating current for reduced hot spot loss and better temperature coefficient.

Enhanced Mechanical Load
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).

Durability Against Extreme Environmental Conditions
High salt mist and ammonia resistance.

LINEAR PERFORMANCE WARRANTY
20 Year Product Warranty
25 Year Linear Power Warranty
0.55% Annual Degradation Over 25 years

Product Parameters

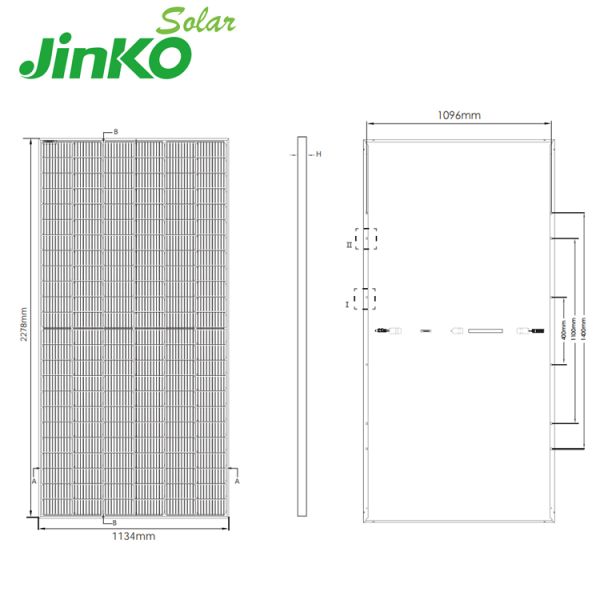

ENGINEER DRAWING

Tiger Pro 72HC 550-570 Watt MONO-FACIAL MODULE P-Type Solar Panel

Electrical Performance&Temperature Dependence

Tiger Pro 72HC 540 Watt MONO-FACIAL MODULE P-Type Solar Panel

Module Type	JKM550M -72HL4(-V)		JKM555M -72HL4(-V)		JKM560M -72HL4(-V)		KM565M -72HL4(-V)		KM570M -72HL4(-V)
	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power Pmax.(Wp)	550	409	555	413	5560	417	565	420	570	424
Maximum Power Vmp(V)	40.9	38.42	40.99	38.59	41.09	38.69	41.21	38.74	41.34	38.84
Maximum Power Imp(A)	13.45	10.65	13.54	10.70	13.63	10.77	13.71	10.85	13.79	10.92
Open-circuit Voc(v)	49.62	46.84	49.72	46.93	49.82	47.02	49.93	47.13	50.04	47.23
Short-circuit Isc(A)	14.03	11.33	14.12	11.40	14.21	11.48	14.30	11.55	14.39	11.62
Module Efficiency	21.29%(STC)		21.48%(STC)		21.68%(STC)		21.87%(STC)		22.07%(STC)
Operating Temperature(℃): -40℃~+85℃
Maximum Series Fuse Rating: 25A
Maximum System Voltage: 1000/1500VDC (IEC)
Temperature Coefficients of Pmax: -0.30%/℃
Power Tolerance: 0~+3%
Temperature Coefficients of Voc: -0.25/℃
Nominal Operating Cell Temperature(NOCT): 45±2℃
Temperature Coefficients of Isc: 0.046%/℃
More Details and Informations Please Contact Us by WhatsApp/WeChat:+86 17872859803

STC: Irradiance 1000W/m2 Cell Temperature 25°C AM=1.5

NOCT: Irradiance 800W/m2 Ambient Temperature 20°C AM=1.5 Wind Speed 1m/s

Packaging & Shipping

PACKAGE CONFIGURATION
Container	JKM550M-72HL4-JKM570M-72HL4
Pallet	36PCS
40'HQ	720PCS

Certifications
