Specifications
Brand Name :
Jinko Solar
Model Number :
JKM545M-72HL4-BDVP
Place of Origin :
Guangdong, China
Cell size :
182mmx182mm
Type :
PERC, Half Cell, Bifacial, Double-glass
Panel Dimensions :
2278mm*1134mm*30mm
Panel Efficiency :
21.48%
Product Name :
Jinko Bificial Solar Panel PV Module
Application :
Solar Power Energy System
Keyword :
Jinko Tiger Pro PV Module
Max. Power :
555W/555Watts/555Wp
Cell Type :
P type Mono-crystalline
Weight :
31 kg
Connector :
Compatible MC-4/Male/Female/Fuse
Frame :
Anodized Aluminium Alloy
Key Features :
Multi Busbar Technology
No. of cells :
144 (6*24)
MOQ :
20 pieces
Price :
$53.80-57.80 / piece
Description
Product Description

Tier 1 Jinko Tiger Neo N-type 78HL4-BDV 550W 580W 590 Watt 700W Bifacial PV Module Solar Panel with Dual Glass
Tier 1 Jinko Tiger Neo N-type 78HL4-BDV 550W 580W 590 Watt 700W Bifacial PV Module Solar Panel with Dual Glass
Cell Type P type Mono-crystalline
NO.of Half-cells 144 (6×24)
Dimensions 2274×1134×30mm (89.53×44.65×1.18 inch)
Weight 32KG (70.55 lbs)
Front Glass 2.0mm, Anti-Reflection Coating
Back Glass 2.0mm, Heat Strengthened Glass
Frame nodized Aluminium Alloy
Output Cables TÜV 1x4.0mm2,(+) 290mm, (-) 145mm or Customized Length
Junction Box IP68 Rated
KEY FEATURES:
Multi Busbar Technology
Better light trapping and current collection to improve module power output and reliability.

Longer Life-time Power Yield
0.45% annual power degradation and 30 year linear power warranty.

PID Resistance
Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.

Low-light Performance
Advanced glass and cell surface textured design ensure excellent performance in low-light environment.

Enhanced Mechanical Load
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).

Higher Power Output
Module power increases 5-25% generally, bringing significantly lower LCOE and higher IRR.
LINEAR PERFORMANCE WARRANTY
20 Year Product Warranty
30 Year Linear Power Warranty
0.45% Annual Degradation Over 30 years
Tier 1 Jinko Tiger Neo N-type 78HL4-BDV 550W 580W 590 Watt 700W Bifacial PV Module Solar Panel with Dual Glass
Tier 1 Jinko Tiger Neo N-type 78HL4-BDV 550W 580W 590 Watt 700W Bifacial PV Module Solar Panel with Dual Glass
ENGINEER DRAWING

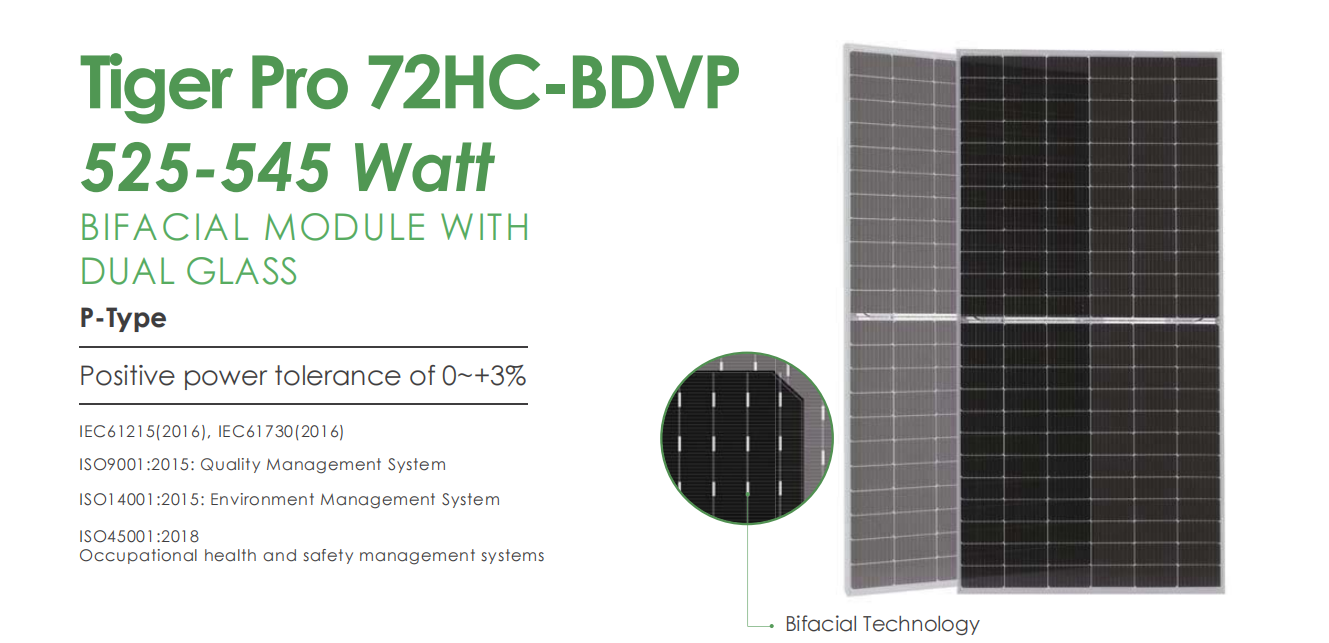

Jinko Tiger Pro 72HC-BDVP 525-545 Watt BIFACIAL MODULE SOLAR PANEL WITH DUAL GLASS P-Type
Tier 1 Jinko Tiger Neo N-type 78HL4-BDV 550W 580W 590 Watt 700W Bifacial PV Module Solar Panel with Dual Glass
Electrical Performance&Temperature Dependence
Jinko Tiger Pro 72HC-BDVP 535 Watt BIFACIAL MODULE SOLAR PANEL WITH DUAL GLASS P-Type
Tier 1 Jinko Tiger Neo N-type 78HL4-BDV 550W 580W 590 Watt 700W Bifacial PV Module Solar Panel with Dual Glass
Module Type JKM525M
-72HL4-BDVP		 JKM530M
-72HL4-BDVP		 JKM535M
-72HL4-BDVP		 JKM540M
-72HL4-BDVP		 JKM545M
-72HL4-BDVP
STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT
Maximum Power Pmax.(Wp) 525 391 530 394 535 398 540 402 545 405
Maximum Power Vmp(V) 40.80 37.81 40.87 37.88 40.94 37.94 41.13 38.08 41.32 38.25
Maximum Power Imp(A) 12.87 10.33 12.97 10.41 13.07 10.49 13.13 10.55 13.19 10.60
Open-circuit Voc(v) 49.42 46.65 49.48 46.70 49.54 46.76 49.73 46.94 49.92 47.12
Short-circuit Isc(A) 13.63 11.01 13.73 11.09 13.83 11.17 13.89 11.22 13.95 11.27
Module Efficiency 20.36%(STC) 20.55%(STC) 20.75%(STC) 20.94%(STC) 21.13%(STC)
Operating Temperature(℃): -40℃~+85℃
Maximum Series Fuse Rating: 20A
Maximum System Voltage: 1000/1500VDC (IEC)
Temperature Coefficients of Pmax: -0.30%/℃
Power Tolerance: 0~+3%
Temperature Coefficients of Voc: -0.25/℃
Nominal Operating Cell Temperature(NOCT): 45±2℃
Temperature Coefficients of Isc: 0.046%/℃
More Details and Informations Please Contact Us by WhatsApp/WeChat:+86 184 7691 5685
STC: Irradiance 1000W/m2 Cell Temperature 25°C AM=1.5
NOCT: Irradiance 800W/m2 Ambient Temperature 20°C AM=1.5 Wind Speed 1m/s
Tier 1 Jinko Tiger Neo N-type 78HL4-BDV 550W 580W 590 Watt 700W Bifacial PV Module Solar Panel with Dual Glass
Tier 1 Jinko Tiger Neo N-type 78HL4-BDV 550W 580W 590 Watt 700W Bifacial PV Module Solar Panel with Dual Glass
Packing/Packing list
Tier 1 Jinko Tiger Neo N-type 78HL4-BDV 550W 580W 590 Watt 700W Bifacial PV Module Solar Panel with Dual Glass
Packaging & Shipping

Tier 1 Jinko Tiger Neo N-type 78HL4-BDV 550W 580W 590 Watt 700W Bifacial PV Module Solar Panel with Dual Glass
PACKAGE CONFIGURATION
Container JKM525M-72HL4-BDVP-JKM545M-72HL4-BDVP
Pallet 36PCS
40'HQ 720PCS
Certifications

Tier 1 Jinko Tiger Neo N-type 78HL4-BDV 550W 580W 590 Watt 700W Bifacial PV Module Solar Panel with Dual Glass
