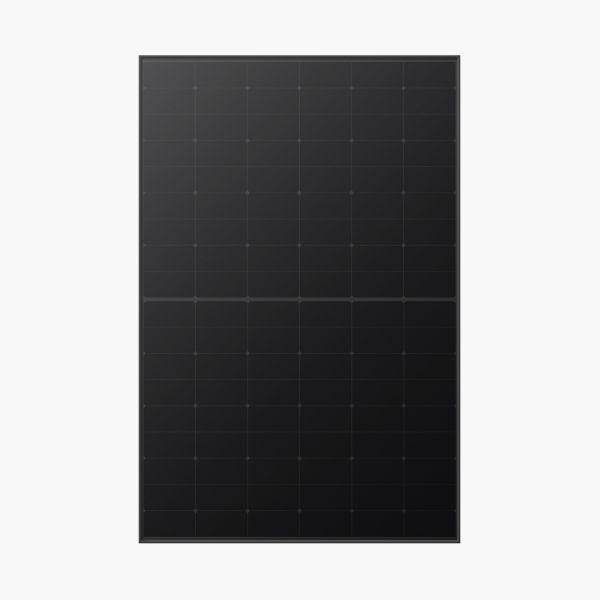

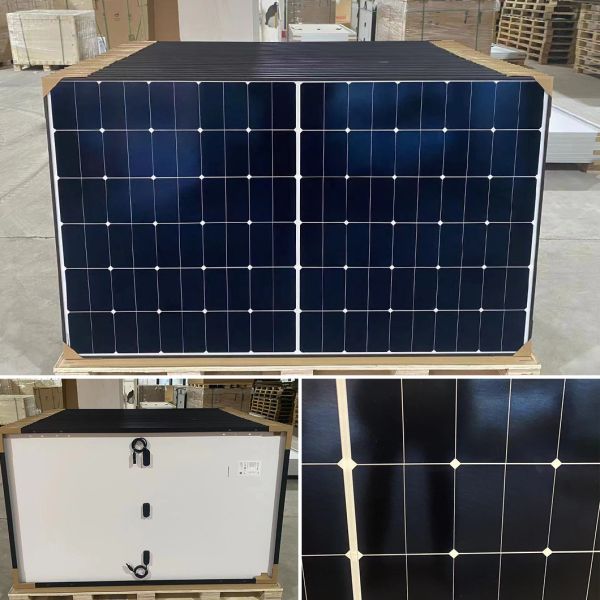

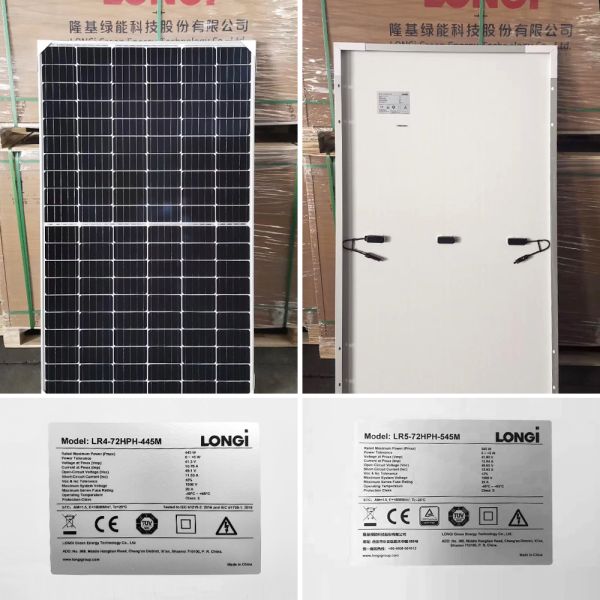

EU Warehouse Hi-MO6 Longi Bifacial Solar Panel PV 525w 530w 540w 550w Rooftop Solar Energy System
EU Warehouse Hi-MO6 Longi Bifacial Solar Panel PV 525w 530w 540w 550w Rooftop Solar Energy System
EU Warehouse Hi-MO6 Longi Bifacial Solar Panel PV 525w 530w 540w 550w Rooftop Solar Energy System
EU Warehouse Hi-MO6 Longi Bifacial Solar Panel PV 525w 530w 540w 550w Rooftop Solar Energy System
EU Warehouse Hi-MO6 Longi Bifacial Solar Panel PV 525w 530w 540w 550w Rooftop Solar Energy System
EU Warehouse Hi-MO6 Longi Bifacial Solar Panel PV 525w 530w 540w 550w Rooftop Solar Energy System
EU Warehouse Hi-MO6 Longi Bifacial Solar Panel PV 525w 530w 540w 550w Rooftop Solar Energy System
EU Warehouse Hi-MO6 Longi Bifacial Solar Panel PV 525w 530w 540w 550w Rooftop Solar Energy System
EU Warehouse Hi-MO6 Longi Bifacial Solar Panel PV 525w 530w 540w 550w Rooftop Solar Energy System
EU Warehouse Hi-MO6 Longi Bifacial Solar Panel PV 525w 530w 540w 550w Rooftop Solar Energy System
EU Warehouse Hi-MO6 Longi Bifacial Solar Panel PV 525w 530w 540w 550w Rooftop Solar Energy System
EU Warehouse Hi-MO6 Longi Bifacial Solar Panel PV 525w 530w 540w 550w Rooftop Solar Energy System
EU Warehouse Hi-MO6 Longi Bifacial Solar Panel PV 525w 530w 540w 550w Rooftop Solar Energy System
EU Warehouse Hi-MO6 Longi Bifacial Solar Panel PV 525w 530w 540w 550w Rooftop Solar Energy System
Specifications
Brand Name :
Longi
Model Number :
LR5 - 72HBD 520~545W
Place of Origin :
Fujian, China
Cell size :
210mmx210mm
Type :
PERC, Half Cell, Bifacial, Double-glass, Mono
Panel Dimensions :
2256x1133x35mm
Panel Efficiency :
20.3%~21.3%
Product Name :
Solar panels bifacial
Solar Cells :
Monocrystalline
Cell Orientation :
144(6x24)
Weight :
32.3kg
Junction Box :
IP68,three diods
Frame :
Anodized aluminum alloy frame
Cables :
4mm2 ,length can be customized
Glass :
Dual Glass3.2.0mm Coated Tempered Glass
Application :
Solar Power system
Package :
31pcs/pallets,155pcs/20'GQ,620pcs/40'HC
MOQ :
100 watts
Price :
$0.11-0.13 / watt
Description
Product Description

EU Warehouse Hi-MO6 Longi Bifacial Solar Panel PV 525w 530w 540w 550w Rooftop Solar Energy System
EU Warehouse Hi-MO6 Longi Bifacial Solar Panel PV 525w 530w 540w 550w Rooftop Solar Energy System
EU Warehouse Hi-MO6 Longi Bifacial Solar Panel PV 525w 530w 540w 550w Rooftop Solar Energy System
EU Warehouse Hi-MO6 Longi Bifacial Solar Panel PV 525w 530w 540w 550w Rooftop Solar Energy System
EU Warehouse Hi-MO6 Longi Bifacial Solar Panel PV 525w 530w 540w 550w Rooftop Solar Energy System
Product Parameter

Electrical Characteristic
Module Type LR5-72HPH 520~545M
Rated output (Pmp/Wp) 520 525 530 535 540 545
Open Circuit Voltage(Voc) 48.9 49.05 49.20 49.35 49.50 49.65
Short Circuit Current(Isc) 13.57 13.65 13.71 13.78 13.85 13.92
Maximum Power Voltage(Vmpp) 41.05 41.20 41.35 41.50 41.65 41.80
Maximum Power Current(Impp) 12.67 12.75 12.82 12.90 12.97 13.04
Module efficiency(%) 20.3% 20.5% 20.7% 20.9% 21.1% 21.3%
Mechanical Characteristic
NO.of Cells 144(6x24)
Weight 32.3kg
Dimension 2256x1133x35mm
Junction Box IP68,three diodes
Output Cables 4mm2,positive 400mm /negative 200mm ,length can be customized
Glass Dual glass,3.2mm coated tempered glass
Frame Anodized aluminum alloy frame
Temperature Coefficient of Isc(α-jsc) +0.050%/℃
Temperature Coefficient of Voc(β_Voc) -0.284%/℃
Temperature Coefficient of Pmax(γ_Pmp) 0.350%/℃
EU Warehouse Hi-MO6 Longi Bifacial Solar Panel PV 525w 530w 540w 550w Rooftop Solar Energy System
Packaging & Shipping

EU Warehouse Hi-MO6 Longi Bifacial Solar Panel PV 525w 530w 540w 550w Rooftop Solar Energy System
EU Warehouse Hi-MO6 Longi Bifacial Solar Panel PV 525w 530w 540w 550w Rooftop Solar Energy System
EU Warehouse Hi-MO6 Longi Bifacial Solar Panel PV 525w 530w 540w 550w Rooftop Solar Energy System
Project Cases

EU Warehouse Hi-MO6 Longi Bifacial Solar Panel PV 525w 530w 540w 550w Rooftop Solar Energy System
Certifications

EU Warehouse Hi-MO6 Longi Bifacial Solar Panel PV 525w 530w 540w 550w Rooftop Solar Energy System
FAQ

1. Who are we?
We are based in Shenzhen, China, establish in 2015,our products sold to Northern Europe(4.00%),Eastern Europe(6.00%),Western Europe(18.00%),Domestic Market(8.00%),Mid East(8.00%),Southern Europe(11.00%),Central America(8.00%),South America(5.00%),North America(11.00%),Africa(8.00%),Eastern Asia(1.00%),Oceania(5.00%),Southeast Asia(5.00%),South Asia(2.00%). There are total about 200 staffs in our company.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
100% final Inspection before shipment.

3.What can you buy from us?
Solar Inverters, Solar Panels,Energy Storage Batteries, Solar Systems with battery or withiout battery.

4. Why should you buy from us not from other suppliers?
New energy integrated company, more than 11 years experience in PV industry, with complete supply chain for battery,solar modules, inverters,etc. Also, provide the whole system design, development and implementation.

5. What services can we provide?
Accepted Delivery Terms: EXW,FOB,CIF,CFR,DDP,DDU,Express Delivery,etc;
Accepted Payment Currency:USD,EUR,AUD,CNY,RMB,CAD,SGD,etc;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,etc.
Language Spoken:English,French,Spanish,Italian,German,Arabic,Chinese,Russian,etc.
