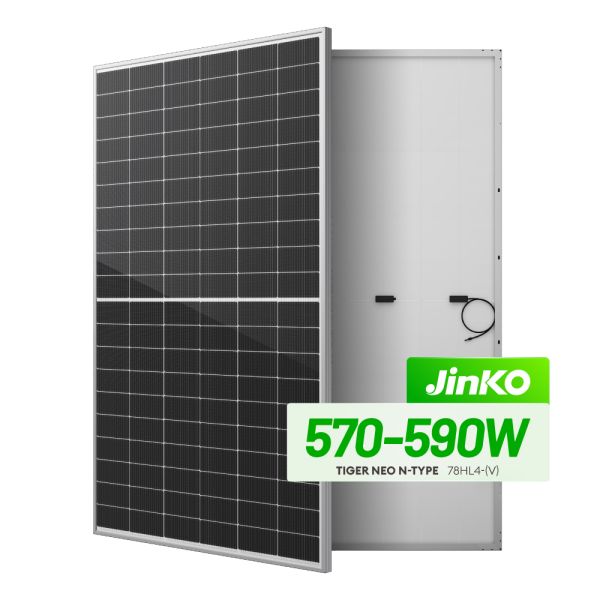

Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels
Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels
Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels
Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels
Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels
Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels
Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels
Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels
Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels
Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels
Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels
Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels
Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels
Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels
Specifications
Brand Name :
Jinko Solar
Model Number :
Tiger Neo N-type 72HL4-BDV 570-590
Place of Origin :
Guangdong, China
Cell size :
182mmx182mm
Type :
PERC, Half Cell, Bifacial, Double-glass, All Black, HJT, N-TYPE, TOPCON
Panel Dimensions :
2278*1134*35
Panel Efficiency :
23%
Cell Type :
N type Mono-crystalline
No. of cells :
144 (6*24)
Front Side Glass :
High transparency solar glass 2.0mm
Frame :
Anodized Aluminium Alloy
Junction Box :
IP68 Rated, 3 Diodes
Cable :
4.0mm2, Portrait: 300mm / Landscape: 1200mm
Wind/Snow Load :
2400Pa/5400Pa
Connector :
MC Compatible
Application :
Residencial,Commercial & Industry
Certificate :
CE TUV IEC
MOQ :
5000 watts
Price :
$0.09-0.12 / watt
Description
Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels

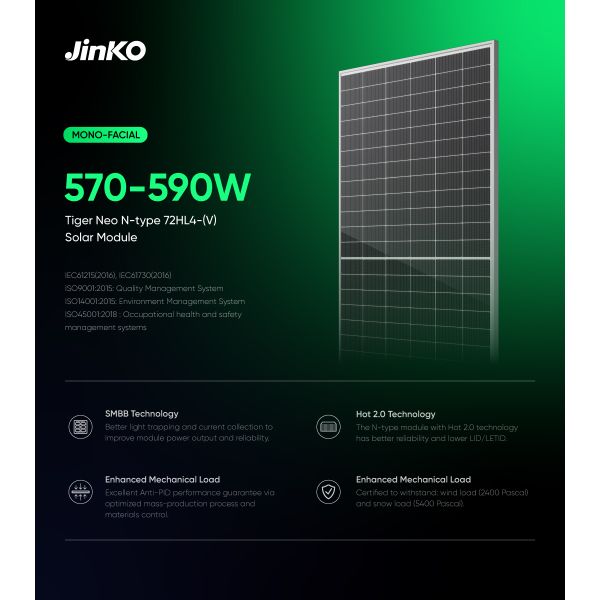

Product Description

Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels
Product Parameter

Module Type: JKMxxxN-72HL4M 570 575 580 585 590
Maximum Power (Pmax/W) 570 575 580 5585 590
Maximum Power Voltage (Vmp/V) 42.99 43.17 43.35 43.53 43.71
Maximum Power Current (Imp/A) 13.26 13.32 13.38 13.44 13.50
Open-circuit Voltage (Voc/V) 51.99 52.15 52.31 52.47 52.63
Short-circuit Current (Isc/A) 13.89 13.95 14.01 14.07 14.13
Module Efficiency STC (%) 22.07 22.26 22.45 22.65 22.84
Operating Temperature -40°C~+85°C
Maximum system voltage 1500VDC (IEC)
Maximum series fuse rating 30A
Power tolerance 0~+3%
Temperature coefficients of Pmax -0.29%/°C
Temperature coefficients of Voc -0.25%/°C
Temperature coefficients of Isc -0.45%/°C
Refer. Bifacial Factor 80±5%
Related Products

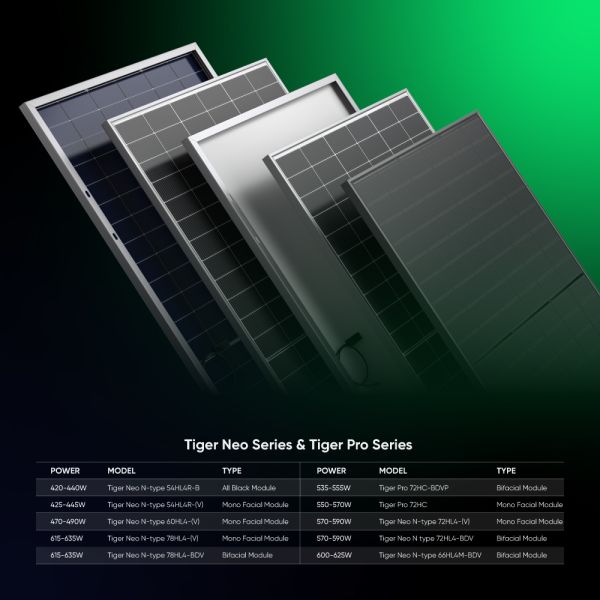

Tiger Neo & Tiger Pro Series
Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels
Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels
Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels

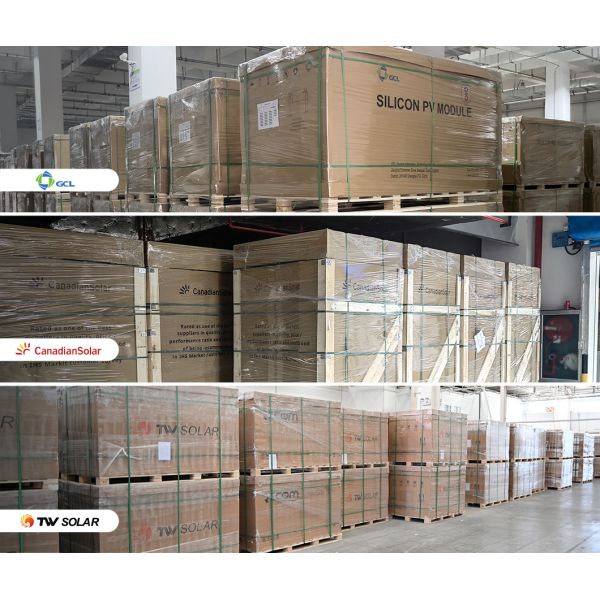

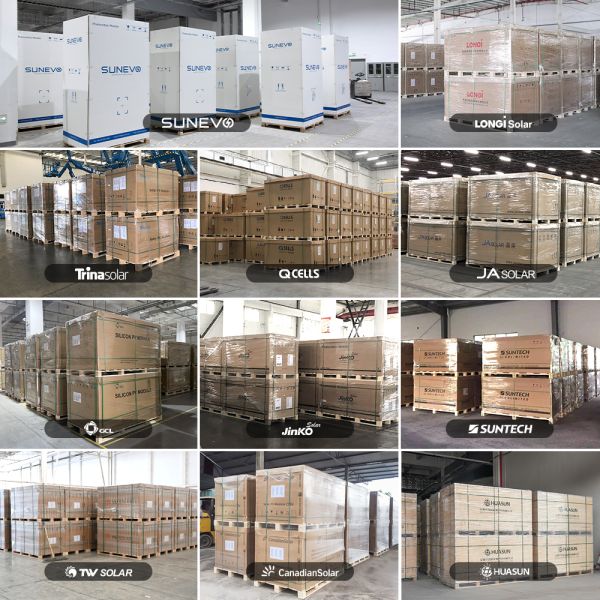

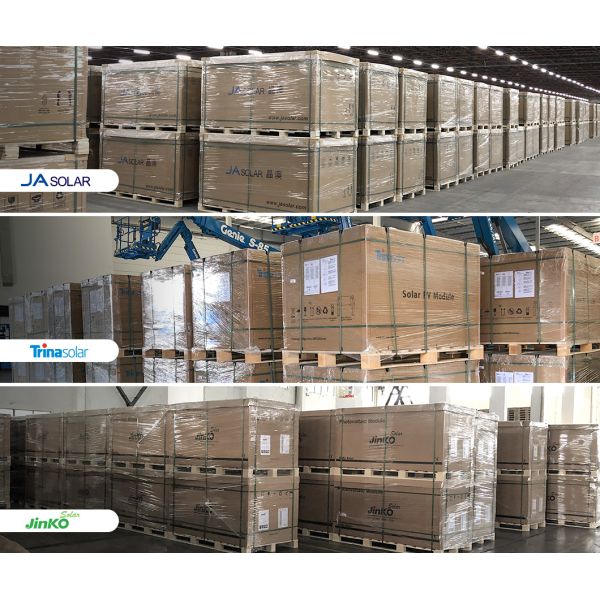

Packaging & Shipping

Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels
Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels
Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels
Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels
Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels
Certifications

Jinko N Type a Grade 72HL4-(V) Tiger Neo 570W 575W 580W 585W 590 700W Watt Photovoltaic Module PV Solar Panels
