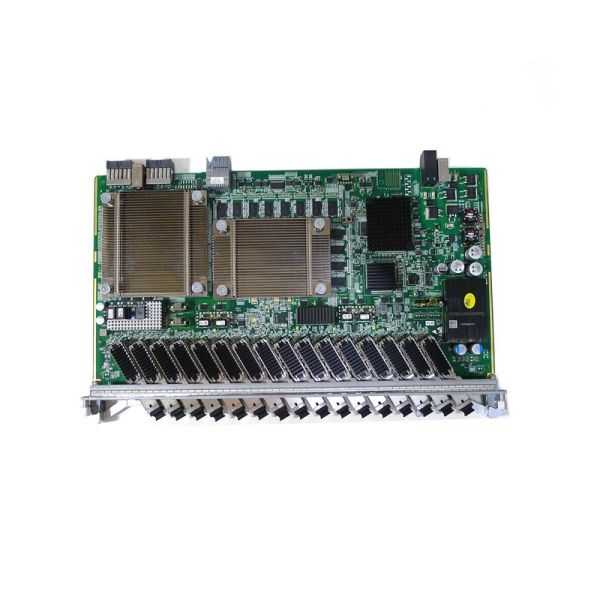

GFBH OLT ZTE 16 Port XG PON & GPON Combo Interface Board For C600 C650 C680
GFBH OLT ZTE 16 Port XG PON & GPON Combo Interface Board For C600 C650 C680
Specifications
Brand Name :
ZTE
Model Number :
GFBH
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$997
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
50 pcs
Delivery Time :
3-5 working days
Packaging Details :
Box
Condition :
Original New
Power Supply :
Dual AC/DC redundant power supply
Uplink Interfaces :
10GE/GE SFP+
Maximum Ports :
16 PON ports
Application :
FTTH, FTTB, FTTC network deployments
Management :
SNMP, CLI, Web GUI
Supported Pon Standards :
GPON, XG-PON, XGS-PON
Model :
ZXA10 C300
Product Type :
Optical Line Terminal (OLT)
Fan :
Intelligent fan with adjustable speed
Manufacturer :
ZTE Corporation
Security Features :
MAC filtering, port isolation, encryption
Dimensions :
440mm x 420mm x 44mm
Downlink Interfaces :
GPON/EPON ports
Operating Temperature :
-5°C to 55°C
Description

ZTE GFBH 16 port GPON & XG PON Combo interface board suitable for C600 (include 10GE SFP module)

ZTE GFBH Service Board is 16-port XG-PON & GPON Combo service card. This board is applied to ZTE ZXA10 C600/C650/C680 GPON OLT. And could support 16 XG-PON & GPON SFP+ hybrid interfaces and Maximum optical split ratio of GPON: 1:128 & Maximum optical split ratio of XG-PON: 1:128 ZXA10 C600 is a large capacity optical access equipment based on the TITAN platform. It meets the full-scenario access needs of ultra-high band width, big video, FMC and network re architecture, as well as carrier-class QoS and security. ZXA10 C680 is ultra-large capacity optical access equipment based on theTITAN platform.It meets the full-scenario access needs of ultra-high bandwidth, big video, FMC and network re architecture, as well as carrier-class QoS and security. ZXA10 C680 is 60S high optical access equipment, which has industry’s highest 36 line card slots and provide 576 GPON/10G PON ports.


Quick Specification:


Brand

ZTE

Model Name

GFBH

Port

16-port

Interface

XG-PON & GPON Combo

Function

XG-PON & GPON service access

Specification

XG-PON & GPON Combo SFP+ interface, with built-in internal multiplexing, SC/UPC optical connector

Management and control module

Configures, controls, and manages the card.

PONMAC module

Implements all the functions on the GPON layer defined in ITU-T G.984.3 and the XGS-PON layer defined by ITU-T G.989.3 and ITU-T G.987.3.

NP module

Implements data processing on the service layer, including service bandwidth and QoS processing based on service types and user needs to meet the SLA requirements. The data processing function complies with TR156.

Optical module

Provides a GPON optical interface that complies with ITU-T G.984.2 or an XGS-PON optical interface that complies with ITU-T G.9807.

Clock module

Processes the system clock in compliance with ITU-T G.8262, G.8264, and G.781.

Weight

1.72 kg

Dimensions (L x H x W)

393.1 mm × 23.9 mm × 214 mm
