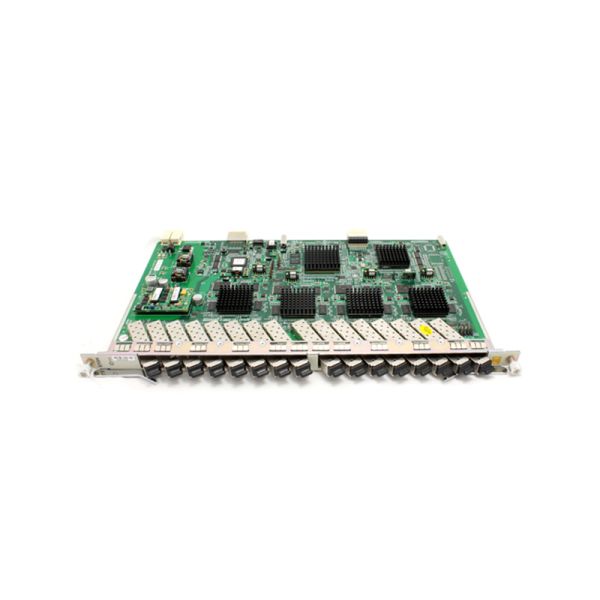

MPCP ETGH OLT ZTE EPON Network Interface NIC 16 Port Board With PX20++ Modules
MPCP ETGH OLT ZTE EPON Network Interface NIC 16 Port Board With PX20++ Modules
Specifications
Brand Name :
ZTE
Model Number :
ETGH
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$428
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100 pcs
Delivery Time :
3-5 working days
Packaging Details :
Box
Detail :
ZTE ETGH EPON 16 Ports Board With 16 PX20+ PX20++ Modules For C300 C320 OLT
Condition :
In Stock
Model :
ZXA10 C300
Upstream_Speed :
1.25 Gbps (GPON), 1.25 Gbps (EPON)
Downstream_Speed :
2.5 Gbps (GPON), 1.25 Gbps (EPON)
Power_Supply :
AC/DC redundant power supply
Fiber_Type :
Single-mode fiber
Operating_Temperature :
-5°C to 55°C
Max_Users_Supported :
Up to 2048 ONTs
Interface_Type :
Gigabit Ethernet, 10 Gigabit Ethernet
Max_Ports :
16 PON ports
Pon_Technology :
GPON/EPON
Type :
Optical Line Terminal
Features :
High reliability, easy maintenance, flexible networking
Management_Protocol :
SNMP, CLI, Web
Dimensions :
440mm x 440mm x 44mm
Description

ZTE ETGH EPON 16 Ports Board With 16 PX20+ PX20++ Modules For C300 C320 OLT

ZTE ETGH Service Board is designed to increase the number of subscriber units (ONT / ONUs) connected to ZTE optical line terminals (OLTs) like C300 and C320 platforms. ZTE ETGH Service Board contains 16 optical ports for connecting subscriber devices via the EPON interface (GEPON). In each port, we can install an optical transceiver (transceiver) SFP GEPON OLT PX20 (28dB) or SFP GEPON OLT PX20 + (33dB), transmitting/receiving data with the asymmetric speed of up to 1.25 Gbit / s over a distance of 20 km. The modules use lasers with wavelengths of 1490 nm (transmission) and 1310 nm (reception). The division ratio of each port is 1:64. PON MAC Module

Quick Specification

Brand

ZTE

Model

ETGH

GPON Port

16-EPON Port

Operating Wavelength

Tx: 1490 nm, Rx: 1310 nm

Encapsulation Type

PX 20 PX 20+ PX 20++

Port Rate

Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s

Optical Connector Type

SC/PC

Optical Fiber Type

Single-mode

Reach

20.00 km

Extinction Ratio

8.2 dB

Weight

1.5KG

Dimensions (W x D x H)

22.86 mm x 237.00 mm x 395.40 mm

ETGH Service Board Product Features:

• Formation/disbandment of personnel
• interaction between the ONU and the OLT using the Multipoint Exchange Control Protocol (MPCP); Organization of a MAC port for broadcasting a single copy (SCB);
• dynamic bandwidth allocation (DBA);
• automatic detection, registration and remote testing of subscriber devices (ONU); encryption data using a triple swirl (AES-128);
• direct error correction (FEC);
• administration and maintenance during operation;
• Alarm support between OLT and ONU;
• statistics generation (the number of received/transmitted packets, detected errors

ETGH Service Board and More Service Boards:

GTGO

8 ports GPON board with 8 B+ modules.

GTGO

8 ports GPON board with 8 C+ modules.

GTGO

8 ports GPON board with 8 C++ modules.

GTGH

16 ports GPON board with 16 B+ modules.

GTGH

16 ports GPON board with 16 C+ modules.

GTGH

16 ports GPON board with 16 C++ modules.

GTTO

8 ports 10G GPON board with 8 10G GPON modules

GTXO

8 ports 10G GPON board with 8 10G GPON modules

ETGO

8 ports EPON board with 8 modules.

ETGH

16 ports EPON board with 16 modules
