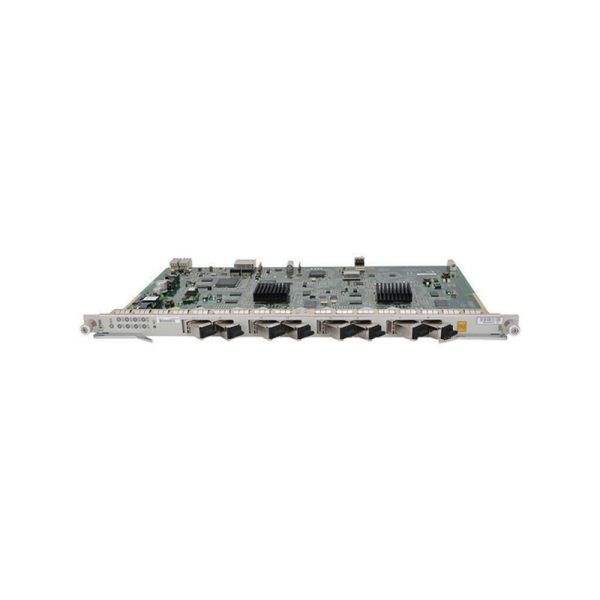

ZTE ETGO EPON 8 Ports Board With 8 Modules For C300 C320 OLT

ZTE ETGO service interface board is an 8-bit C-connected C board of ZTE ZXA10 C300 equipment to provide EPON service access. ZTE ZXA10 C300 OLT is an optical-access platform with large capacity and high density. Numerous access approaches are supported and the triple-play services can be realized. The customized scenarios are provided for various networks demands. ZTE ZXA10 C320 OLT (ZTE C320) is a compact, dense full-service xPON converged optical access platform for next-generation optical access networks, and it supports GPON/EPON/P2P/10GEPON/XG-PON1 common platform access, ZTE ZXA10 C320 supports HSI, VolP, IPTV, CATV, mobile backhaul, WiFi and other full-service access aggregation and management control, providing carrier-class QoS and security reliability.

Quick Specification

ETGO Service Board Product Features:

• 8 EPON SFP ports;
• A maximum of 1:128 split ratio;
• PX20+ optical modules;
• Received signal strength indicator (RSSI) detection and controlled optical signal transmission of the optical module;
• ONU-based shaping;
• Optical performance monitor (OPM);
• Automatic power shutdown in case of high temperature.

ETGO Service Board and More Service Boards:

CICC Common Interface Card
CICG Common Interface Card
CICK Common Interface Card
CTBB 32 ports E1 balance interface card
CTEUA Type A 32 ports E1 un-balance interface card
CTLA 2 STM-1 ports CES interface card
CTTB 32 ports T1 interface card
CTUB 32 ports E1 unbalance interface card
ETGH 16-port EPON PON card
ETGO 8-port EPON OLT line card
ETTD 2-port 10G EPON symmetry PON card
ETTO Type D 8 ports EPON OLT line card
ETTQ 10G EPON PON card
ETTS 2-port 10G EPON PCM PON card
ETXD 2-port 10G EPON unsymmetric PON card
FTGH Type A 16 ports GE PTP Ethernet interface card
FTGHA Type A 16 ports GE PTP Ethernet interface card
FTGK 48-ports PTP Ethernet interface card
FUFQ 4FE Fiber Uplink Card
GDFO 8-ports ethernet uplink interface card
GDFOU 8-ports ethernet P2P Card
GTGH 16-port GPON PON card
GTGO 8-port GPON OLT line card
GTGQ 4-port GPON OLT line card
GTTO Type K 8-port XGPON OLT line card
GTXD XG-GPON OLT line card
GTXO 8 ports XGPON OLT line card
GTXQ XG-GPON OLT line card
GTXT Gpp ASIC test card
GUFQ 4GE Fiber Uplink Card
GUSQ 2GE Fiber & 2GE Electrical Uplink Card
GUTQ 4-port Electrical Uplink Card
HDTT 2-ports 10GE and 8-ports GE PTP Ethernet interface card
HUGQ 2-port GE and 2-port FE optical Ethernet interface card
HULQ 2-port 10GE and 2-port FE optical Ethernet interface card
HUTQ 2-port 10GE and 2-port GE optical Ethernet interface card
HUVQ 2-port 10GE and 2-port GE optical Ethernet interface card
HUWQ 2-port 10GE and 2-port GE optical Ethernet interface card supporting SyncE
WTBS 2-port 10G EPON WDM PON card
XDTD 2-port 10GE optical Ethernet interface card
XDTS 1-port 10GE optical Ethernet interface card
XUTQ 4-port 10GE optical Ethernet interface card
XUXQ 4-port 10GE optical Ethernet interface card
