ZTE C320 OLT 8-port 48V DC 2U compact 10GE GPON OLT with 10Gb uplink and dual power supply
ZTE C320 OLT 8-port 48V DC 2U compact 10GE GPON OLT with 10Gb uplink and dual power supply
ZTE C320 OLT 8-port 48V DC 2U compact 10GE GPON OLT with 10Gb uplink and dual power supply
ZTE C320 OLT 8-port 48V DC 2U compact 10GE GPON OLT with 10Gb uplink and dual power supply
ZTE C320 OLT 8-port 48V DC 2U compact 10GE GPON OLT with 10Gb uplink and dual power supply
ZTE C320 OLT 8-port 48V DC 2U compact 10GE GPON OLT with 10Gb uplink and dual power supply
Specifications
Brand Name :
ZTE
Model Number :
C320 DC
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$995
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100 pcs
Delivery Time :
3-5 working days
Packaging Details :
Box
Detail :
ZTE ZXA10 mini C320 10GE GPON OLT
Condition :
In Stock
Description

ZTE 10gig Olt 8 port C320 smart mini olt 48v SMXA-A31 10Gb zxa10 board chasis

Condition: Original In New Box

ZTE ZXA10 C320 is a small size, full-service optical access convergent platform and provides carrier-class QoS and reliable network to meet the requirements for small-scale implementation of FTTx services.



TE ZXA10 C320 OLT Product Overview

ZTE ZXA10 C320 OLT (ZTE C320) is a compact, dense full-service xPON converged optical access platform for next-generation optical access networks, and it supports GPON/EPON/P2P/10GEPON/XG-PON1 common platform access, ZTE ZXA10 C320 supports HSI, VolP, IPTV, CATV, mobile backhaul, WiFi and other full-service access aggregation and management control, providing carrier-class QoS and security reliability.

ZXA10 C320 is new-generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capability, single-frame can provide 32 G/EPON ports and 96 channels P2P GE port; ZTE C320 supports GPON/EPON/P2P/10G EPON/XG-PON1 with the same platform access, and will also support TWDM-PON technology; unified bearer voice, high-speed Internet access, IPTV, traditional TDM and mobile backhaul services. Integrated access; adopts large-scale OLT hardware and software architecture, supports architecture evolution, is compatible with ZXA10 C300 service boards, and saves board costs.

Brand

ZTE

Model

ZXA10 C320

Backplane capacity

420 Gbit/s

Switching capacity

84 Gbit/s

Number of service cards

2 (GPON/P2P/XG-PON1)

Number of combined control cards

2

Number of power supply cards

1

Number of uplink cards

1 (10GE/GE/FE/E1/T1)

Maximum number of GPON subscribers

4096

Management Interfaces

CLI, SSH, SNMP, telnet

Power

-48 V (DC), 230V (AC)

Working temperature and humidity

-25°C – +55°C, 5% – 95%

Split Ratio

up to 1:128

Range

20-60 km

Maximum attenuation

SFP B+ 28 dB, SFP C+ 32 dB

Dynamic Bandwidth Allocation

NSR-DBA, SR-DBA

Support

FEC, AES128, SCB, OLS

Dimensions

86.1 mm (height) x 482.6 mm (width) x 270 mm (depth)

Power Supply

Dual DC: 48V/60VAC: 100V~240V

Cabinet

Indoor: 2200mm x 600mm x 300mm standard cabinet

Outdoor: EC90EB, EC70E

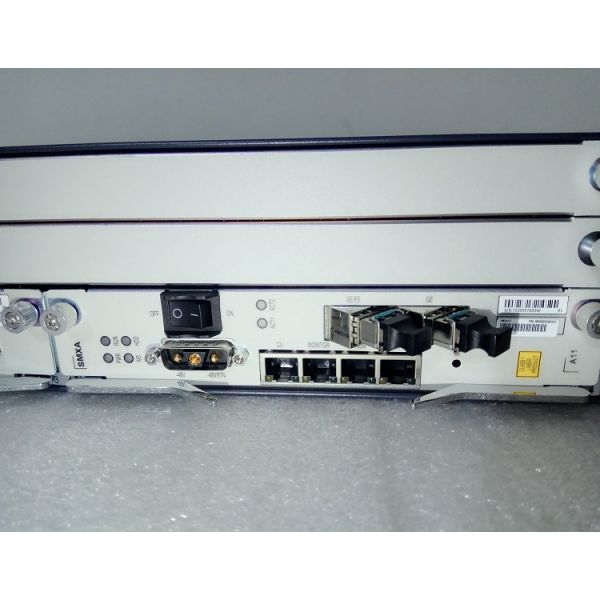

Main-Control Switching Card SMXA

Panel interfaces: 1*10GE/GE(optical)+1*GE/FE(Optical)+

1*GE/FE(electrical) +1*serial port+ 1*management FE+

1*environment detecting port

Ethernet uplink port: MAX. 2*10GE+4*GE or 6*GE

Service Card (2 slots)

GTGO(8*GPON) /GTGH(16*GPON)/FTGK(48*P2P)

GTXO(8*XG-PON1)
