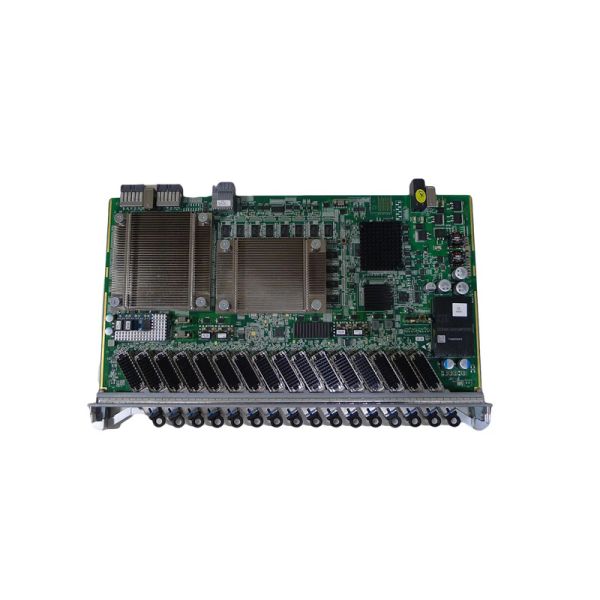

10G ZTE GFXH GPON Board OLT Interface Board With N1 N2a Module OEM
10G ZTE GFXH GPON Board OLT Interface Board With N1 N2a Module OEM
Specifications
Brand Name :
ZTE
Model Number :
GFXH
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$1140
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
20 pcs
Delivery Time :
3-5 working days
Packaging Details :
Box
Condition :
New; In Stock
Compliance :
ITU-T G.984, IEEE 802.3ah, IEEE 802.3av
Fan :
Intelligent fan cooling system
Manufacturer :
ZTE Corporation
Model :
Various models (e.g., ZXA10 C300, ZXA10 C320)
Operating Temperature :
-5°C to 55°C
Max Ports :
Up to 16/32/64 PON ports depending on model
Management :
SNMP, CLI, Web GUI, Telnet
Security :
Supports encryption and authentication protocols
Dimensions :
Varies by model, typically 440mm x 420mm x 44mm
Uplink Interface :
10G/1G Ethernet ports
Power Supply :
AC/DC redundant power supply options
Type :
Optical Line Terminal (OLT)
Interface :
GPON, EPON, XG-PON, XGS-PON
Application :
Fiber to the Home (FTTH), Fiber to the Building (FTTB)
Description

ZTE GFXH 16-port XG-PON OLT interface board with N1/N2a Module For ZTE ZXA10 C600/C650/C680

ZTE GFXH Service Board is an 16-port 10G GPON OLT interface board, which cooperates with ONU to realize GPON access service. ZTE ZXA10 C600 OLT is a 19-inch, 11U height unified platform with 17 service slots that supports multiple access technologies including GPON, XG-PON, XGS-PON, Combo PON, 10G-EPON and GE P2P, as well as smooth migration to 50G PON, and provides L2 switch, VLAN service, L3 routing protocol and service processing capabilities, supporting flexible configurations and suits multiple application scenarios. This OLT comes chassis with 2xcontrol board, 8x10GE uplink, 2xDC power board and 2PCS DC power cables, 1PCS earth cable.

Quick Specification




Brand

ZTE

Item

GFXH

Port

16

Type

N1 Module: Single Fiber Bidirectional Optical Module N1

N2a Module: Single Fiber Bidirectional Optical Module N2a

Operating Wavelength

Tx: 1577 nm, Rx: 1270 nm

Encapsulation Type

SFP+

Port Rate

Tx: 10 Gbit/s, Rx: 2.488 Gbit/s

Minimun Output Optical Power

N1 Module: 2dBm

N2a Module: 4dBm

Maximum Output Optical Power

N1 Module: 6dBm

N2a Module: 8dBm

Maximum Receiver Sensitivity

N1 Module: -27.5dBm

N2a Module: -29.50dBm

Optical Connector Type

SC/UPC

Optical Fiber Type

Single-mode

Reach

20.00 km

Saturation optical power

N1 Module: -7dBm

N2a Module: -9dBm

Extinction ratio

8.2dB

Weight

1.68kg

Dimensions (W x D x H)

393.1 mm(H) × 23.9 mm(W) × 214 mm(D)

Product Features:



• Provide redundant control & switch card on the control plane, and supports dual matrix load balancing on the forwarding plane.
• Support ISSU and NSR.
• Support 16-port GPON cards, 16-port XGS-PON/ XG-PON/Combo PON/10G-EPON cards, 16-port 10GE cards and 48-port GE P2P cards.
• Support multiple services including VoIP, HSI, IPTV, VPN, and mobile backhaul.
• Support CFM functions defined by 802.1ag.
• Support Type-B/C PON protection, Ethernet and IP service protection, and redundant protection of the switch & control cards, power cards, fans, and uplink interfaces.
• Provide enriched equipment security, system security, network security and service security features.







GFXH Service Board Product and More Service Boards:


PON

XG-PON

XGS-PON

XG-PON and GPON Combo

XGS-PON and GPON Combo

Port

ZTE

C300/C320/C350

GTGO

GTXO

GTTO

GTBO

8

GTGH



16

C600/C650/C680

GFGH

GFXH

GFTH

GFBN/GFBH

GFCH

16
