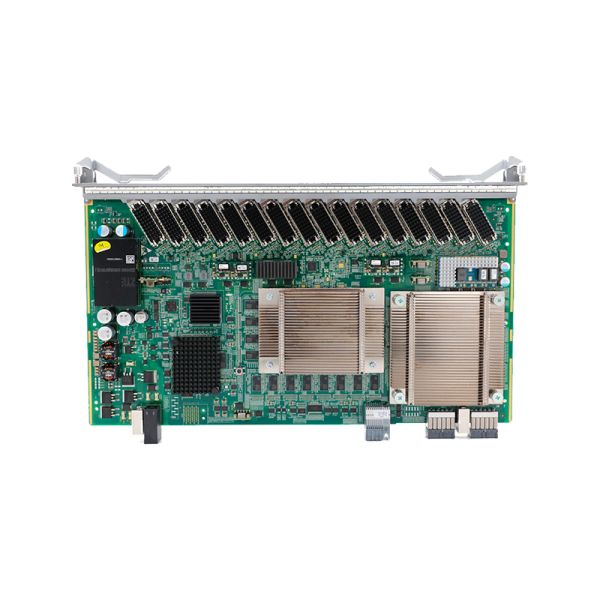

16port GFTH OLT ZTE Optical Line Terminal Board 10G XG-PON & GPON Combo
16port GFTH OLT ZTE Optical Line Terminal Board 10G XG-PON & GPON Combo
Specifications
Brand Name :
ZTE
Model Number :
GFTH
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$1200
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
17pcs
Delivery Time :
3-5 working days
Packaging Details :
Box
Condition :
Original ; In Stock
Maximum Ports :
Up to 128 PON ports
Product Type :
Optical Line Terminal
Dimensions :
Varies by model, e.g., 440mm x 440mm x 44mm
Manufacturer :
ZTE Corporation
Compliance Standards :
ITU-T G.984, IEEE 802.3ah
Operating Temperature :
-5°C to 55°C
Upstream Bandwidth :
1.25 Gbps (GPON), 2.5 Gbps (XG-PON)
Model :
Various models (e.g., ZXA10 C300, ZXA10 C320)
Power Supply :
AC/DC redundant power supply
Fiber Type :
Single-mode fiber
Applications :
FTTx, broadband access, triple-play services
Management :
SNMP, CLI, Web GUI
Downstream Bandwidth :
2.5 Gbps (GPON), 10 Gbps (XG-PON)
Interface Types :
GPON, EPON, 10G PON
Description

ZTE GFTH 16 port 10G GPON interface board For C600

ZTE GFTH Service Board is a 16-port XGS-PON OLT interface board with N1/N2a module, which can be used in the ZTE OLT ZXA10 C600/C650/C680. ZXA10 C680 is a 60S high optical access convergence device, 36 line card slot, the industry’s most, can provide 576 GPON/10G PON ports. ZXA10 C650 is a 6U high device with 7 line card slots and can support 112*GPON/10GPON ports. It is a medium-sized optical access OLT device based on the TITAN platform, which can meet the needs of ultra-high bandwidth access, large video, fixed-mobile convergence, network reconfiguration, carrier-grade QoS and security assurance. ZXA10 C600 is an 11U high-optical access device with 17/15 line card slots and can support 272/240 GPON/10G PON ports.

Quick Specification




Brand

ZTE

Model

GFTH

Port

16-port

Interface

XG-PON & GPON Combo

Function

XG-PON & GPON service access

Specification

XG-PON & GPON Combo SFP+ interface, with built-in internal multiplexing, SC/UPC optical connector

Weight

1.72 kg

Dimensions (L x H x W)

393.1 mm × 23.9 mm × 214 mm

GFTH Service Board Product and More Service Boards:


ZTE GFGN Service Board GPON16-port service board with C+/C++ module suitable for C600

ZTE GFGL Service Board GPON 16-port service board with C+/C+ + module suitable for C600

ZTE GFGH Service Board GPON 16-port service board with C+/C+ + module suitable for C600

ZTE GFGM Service Board GPON 16-port service board with C+/C++ module suitable for C600

ZTE EFGH Service Board 16 EPON interface board for C600

ZTE GFTH Service Board 16 port 10G GPON interface board for C600

ZTE GFXH Service Board 16 port XG-PON interface board for C600

ZTE GFBH Service Board 16 port GPON & XG PON Combo interface board suitable for C600

ZTE GFCH Service Board 16 port GPON & XGS- PON Combo interface board for C600

ZTE GFBL Service Board 16 port GPON & XG PON Combo interface board suitable for C600

ZTE GFBN Service Board 16 port GPON & XG-PON Combo connect to C board, suitable for C600

ZTE GFBT Service Board 16 port GPON & XG PON Combo interface board for C600
