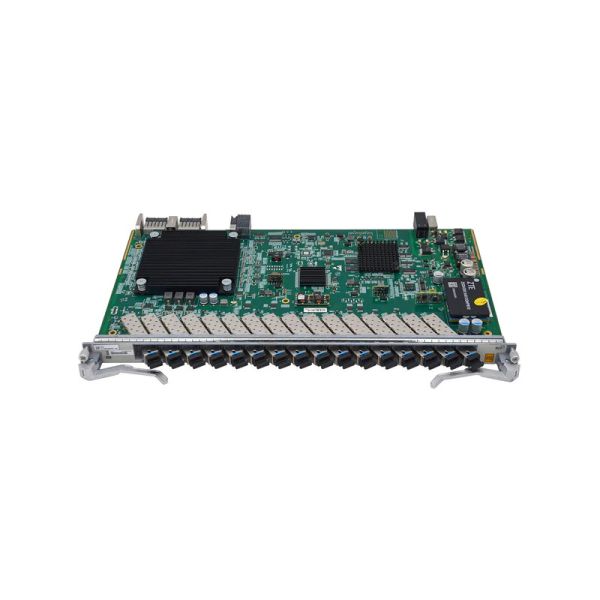

FTTx ZTE GFGL GPON Card OLT Service Board C+ Module For ZXA10 C600 C650
FTTx ZTE GFGL GPON Card OLT Service Board C+ Module For ZXA10 C600 C650
Specifications
Brand Name :
ZTE
Model Number :
GFGL
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$550
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100 pcs
Delivery Time :
3-5 working days
Packaging Details :
Box
Detail :
ZTE ZXA10 C600 C650 C680 16-port GPON OLT interface board (full with C+ modules)
Condition :
Original; In Stock
Manufacturer :
ZTE Corporation
Management :
SNMP, CLI, Web GUI
Product Type :
Optical Line Terminal
Compliance Standards :
ITU-T G.984, IEEE 802.3ah
Maximum Ports :
Up to 128 PON ports
Uplink Interface :
10G/1G Ethernet ports
Application :
FTTx, broadband access network
Model :
Various models (e.g., ZXA10 C300, ZXA10 C320)
Operating Temperature :
-5°C to 55°C
Security Features :
MAC filtering, encryption, authentication
Fiber Type :
Single-mode fiber
Power Supply :
AC/DC redundant power supply
Dimensions :
Varies by model, e.g., 440mm x 440mm x 44mm
Interface Type :
GPON, EPON
Description

ZTE GFGL ZXA10 C600 C650 C680 16-port GPON OLT interface board (full with C+ modules)

ZTE GFGL Service Board is GPON 16-port service board with C+/C+ + module suitable for C600


Quick Specification:


Model

ZTE GFGL

GPON Port

16-GPON Port

Type

C+ Module : Single Fiber Bidirectional Optical Module, Class C+

Operating Wavelength

Tx: 1490 nm, Rx: 1310 nm

Encapsulation Type

SFP

Port Rate

Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s

Minimun Output Optical Power

C+ Module : 3.00 dBm

Maximum Output Optical Power

C+ Module : 7.00 dBm

Maximum Receiver Sensitivity

C+ Module : -32.00 dBm

Optical Connector Type

SC/PC

Optical Fiber Type

Single-mode

Reach

20.00 km

Overload Optical Power

C+ Module : -12.0 dBm

Extinction Ratio

8.2 dB

Weight

1.46kg

Dimensions (W x D x H)

393.1 mm × 23.9 mm × 214 mm

GFGL Service Board Product and More Service Boards:


ZTE GFGN Service Board GPON16-port service board with C+/C++ module suitable for C600

ZTE GFGL Service Board GPON 16-port service board with C+/C+ + module suitable for C600

ZTE GFGH Service Board GPON 16-port service board with C+/C+ + module suitable for C600

ZTE GFGM Service Board GPON 16-port service board with C+/C++ module suitable for C600

ZTE EFGH Service Board 16 EPON interface board for C600

ZTE GFTH Service Board 16 port 10G GPON interface board for C600

ZTE GFXH Service Board 16 port XG-PON interface board for C600

ZTE GFBH Service Board 16 port GPON & XG PON Combo interface board suitable for C600

ZTE GFCH Service Board 16 port GPON & XGS- PON Combo interface board for C600

ZTE GFBL Service Board 16 port GPON & XG PON Combo interface board suitable for C600

ZTE GFBN Service Board 16 port GPON & XG-PON Combo connect to C board, suitable for C600

ZTE GFBT Service Board 16 port GPON & XG PON Combo interface board for C600
