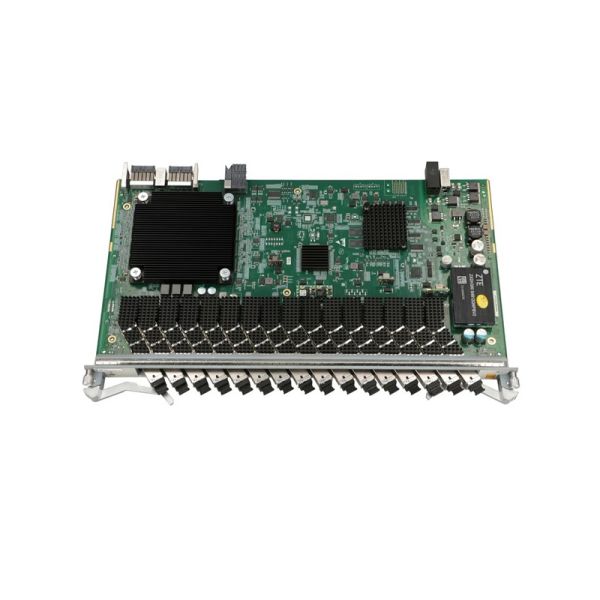

ZTE GFCH OLT Card 16 port XGS PON & GPON Combo ITU T Standard
ZTE GFCH OLT Card 16 port XGS PON & GPON Combo ITU T Standard
Specifications
Brand Name :
ZTE
Model Number :
GFCH
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$1570
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
20 pcs
Delivery Time :
3-5 working days
Packaging Details :
Box
Detail :
ZTE ZXA10 C600 C650 C620 16-port XGS-PON&GPON Combo GPON OLT service card GFCH
Condition :
New
Max Ports :
up to 128 PON ports
Management :
SNMP, CLI, Web GUI
Fiber Distance :
up to 20 km
Security Features :
Supports encryption and authentication
Power Supply :
Dual AC/DC redundant power
Qos Support :
Yes, supports multi-level QoS
Olt Capacity :
Supports up to 16,000 ONTs
Model :
ZXA10 C300
Pon Type :
GPON, XG-PON, XGS-PON
Operating Temperature :
-5°C to 55°C
Uplink Interface :
10G/1G Ethernet ports
Dimensions :
440mm x 440mm x 44mm
Weight :
Approx. 7kg
Type :
Optical Line Terminal
Description

ZTE GFCH ZXA10 C600 C650 C620 16-port XGS-PON&GPON Combo GPON OLT service card

ZTE GFCH Service Board is 16-port XGS-PON and GPON Combo OLT interface board with N1/B+ or N2/C+ module used for ZTE ZXA10 C600 Serie OLT ZXA10 C680 is a 60S high optical access convergence device, 36 line card slot, the industry’s most, can provide 576 GPON/10G PON ports. ZXA10 C650 is a 6U high device with 7 line card slots and can support 112*GPON/10GPON ports. It is a medium-sized optical access OLT device based on the TITAN platform, which can meet the needs of ultra-high bandwidth access, large video, fixed-mobile convergence, network reconfiguration, carrier-grade QoS and security assurance. ZXA10 C600 is an 11U high-optical access device with 17/15 line card slots and can support 272/240 GPON/10G PON ports. It is a large-capacity optical access OLT equipment based on TITAN platform. It can meet the needs of ultra-high bandwidth access, big video, fixed-mobile convergence, network reconfiguration, and carrier-grade QoS and security assurance.


Quick Specification:


Brand

ZTE

Model Name

GFCH

Port

16-port

Interface

XG-PON & GPON Combo

Function

XG-PON & GPON service access

Specification

XG-PON & GPON Combo SFP+ interface, with built-in internal multiplexing, SC/UPC optical connector

Management and control module

Configures, controls, and manages the card.

PONMAC module

Implements all the functions on the GPON layer defined in ITU-T G.984.3 and the XGS-PON layer defined by ITU-T G.989.3 and ITU-T G.987.3.

NP module

Implements data processing on the service layer, including service bandwidth and QoS processing based on service types and user needs to meet the SLA requirements. The data processing function complies with TR156.

Optical module

Provides a GPON optical interface that complies with ITU-T G.984.2 or an XGS-PON optical interface that complies with ITU-T G.9807.

Clock module

Processes the system clock in compliance with ITU-T G.8262, G.8264, and G.781.

Weight

1.72 kg

Dimensions (L x H x W)

393.1 mm × 23.9 mm × 214 mm

GFCH Service Board Product Features:



• Configures, controls, and manages the card.

• Implement all the functions on the GPON layer defined in ITU-T G.984.3 and the XGS-PON layer defined by ITU-T G.989.3 and ITU-T G.987.3.

• Implement data processing on the service layer, including service bandwidth and QoS processing based on service types and user needs to meet the SLA requirements. The data processing function complies with TR156.

• Provide a GPON optical interface that complies with ITU-T G.984.2 or an XGS-PON optical interface that complies with ITU-T G.9807.

• Process the system clock in compliance with ITU-T G.8262, G.8264, and G.781.


GFCH Service Board Product and More Service Boards:


ZTE GFGN Service Board GPON16-port service board with C+/C++ module suitable for C600

ZTE GFGL Service Board GPON 16-port service board with C+/C+ + module suitable for C600

ZTE GFGH Service Board GPON 16-port service board with C+/C+ + module suitable for C600

ZTE GFGM Service Board GPON 16-port service board with C+/C++ module suitable for C600

ZTE EFGH Service Board 16 EPON interface board for C600

ZTE GFTH Service Board 16 port 10G GPON interface board for C600

ZTE GFXH Service Board 16 port XG-PON interface board for C600

ZTE GFBH Service Board 16 port GPON & XG PON Combo interface board suitable for C600

ZTE GFCH Service Board 16 port GPON & XGS- PON Combo interface board for C600

ZTE GFBL Service Board 16 port GPON & XG PON Combo interface board suitable for C600

ZTE GFBN Service Board 16 port GPON & XG-PON Combo connect to C board, suitable for C600

ZTE GFBT Service Board 16 port GPON & XG PON Combo interface board for C600
