GTGH GPON OLT ZTE Interface Board G22 K00 Placa B+ C+ C++ ODM
GTGH GPON OLT ZTE Interface Board G22 K00 Placa B+ C+ C++ ODM
Specifications
Brand Name :
ZTE
Model Number :
GTGH
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$142
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
50pcs
Delivery Time :
3-5 working days
Packaging Details :
Box
Condition :
Orignal New
Uplink Interface :
10GE, 1GE, 10G Ethernet
Model :
Various models (e.g., ZXA10 C300, ZXA10 C320, ZXA10 C600)
Operating Temperature :
-5°C to 55°C
Interface Type :
GPON, EPON
Compliance :
ITU-T G.984, IEEE 802.3ah
Product Type :
Optical Line Terminal
Max Ports :
Up to 128 PON ports
Weight :
Varies by model (e.g., 8kg)
Power Supply :
AC/DC redundant power supply
Management :
SNMP, CLI, Web GUI
Functions :
OLT management, ONU management, bandwidth control, QoS
Application :
FTTx networks, broadband access, fiber to the home (FTTH)
Manufacturer :
ZTE Corporation
Dimensions :
Varies by model (e.g., 440mm x 440mm x 88mm)
Description

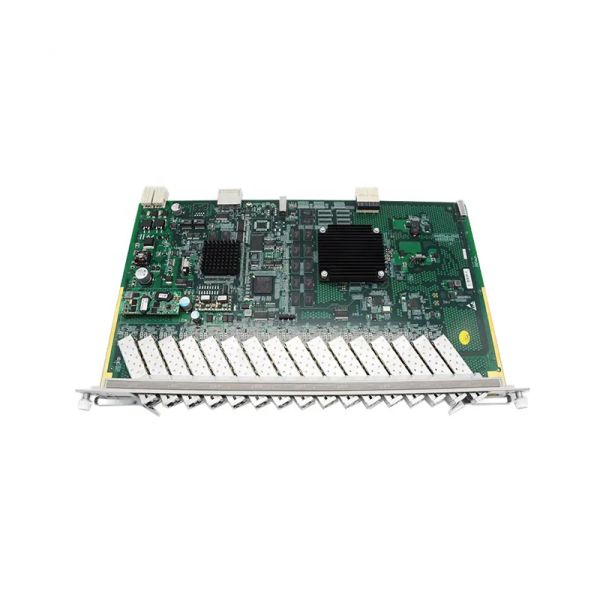

ZTE GTGH ZXA10 C320 C350 C300 16-port GPON OLT interface board

ZXA10 C320 is new-generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capability, single-frame can provide 32 G/EPON ports and 96 channels P2P GE port; ZTE C320 supports GPON/EPON/P2P/10G EPON/XG-PON1 with the same platform access, and will also support TWDM-PON technology; unified bearer voice, high-speed Internet access, IPTV, traditional TDM and mobile backhaul services. Integrated access; adopts large-scale OLT hardware and software architecture, supports architecture evolution, is compatible with ZXA10 C300 service boards, and saves board cost.

Quick Specification:

Brand

ZTE

Model

GTGH

GPON Port

16-GPON Port

Type

C++ Module: Single Fiber Bidirectional Optical Module, Class C++

Operating Wavelength

Tx: 1490 nm, Rx: 1310 nm

Encapsulation Type

SFP

Port Rate

Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s

Minimun Output Optical Power

C++ Module : 4.50 dBm

Maximum Output Optical Power

C++ Module : 8.00 dBm

Maximum Receiver Sensitivity

C++ Module : -30 dBm @10E-10

Maximum Output Optical Power

-32 dBm @10E-10

Optical Connector Type

SC/PC

Optical Fiber Type

Single-mode

Reach

20.00 km

Overload Optical Power

C++ Module : -12.0 dBm

Extinction Ratio

8.2 dB

Weight

1kg

Dimensions (W x D x H)

22.86 mm x 237.00 mm x 395.40 mm

GTGH Service Board Product Features:

·ŸHigh Density:

– 16 GPON ports per card, up to 1:128 split ratio

·ŸGPON Function:

– Support ONU power saving management defined in G.987.3

– 1024 T-CONTs per PON port, 4096 GEM ports per PON port Ÿ

·High TM Performance:

– Support H-QOS

– 1024 queues and 356 schedulers per PON port

– Support color-sensitive RED and WRED discard algorithm Ÿ

·Clock / Time Function:

– Receive 1PPS+TOD signals and send them to the ONU through a PON channel

·ŸLow Power Consumption:

– Newly developed lower power GPON MAC chip

– Reduce 30% power consumption on industry average

GTGH Service Board Product and More Service Boards:

GTGO

8 ports GPON board with 8 B+ modules

GTGO

8 ports GPON board with 8 C+ modules

GTGO

8 ports GPON board with 8 C++ modules

GTGH

16 ports GPON board with 16 B+ modules

GTGH

16 ports GPON board with 16 C+ modules

GTGH

16 ports GPON board with 16 C++ modules

GTTO

8 ports 10G GPON board with 8 10G GPON modules

GTXO

8 ports 10G GPON board with 8 10G GPON modules

ETGO

8 ports EPON board with 8 modules

ETGH

16 ports EPON board with 16 modules

ETTO

8 ports 10G EPON board with 8 10G EPON modules
