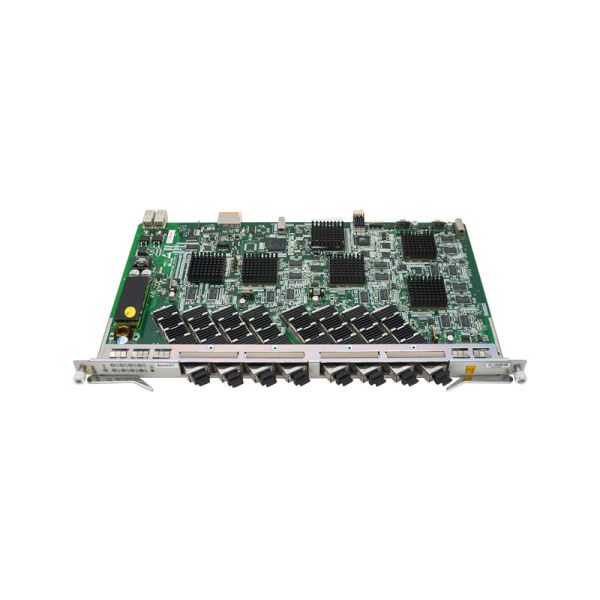

GTXO OLT ZTE Network Interface Card 40Gbit 8 Port With ONU
GTXO OLT ZTE Network Interface Card 40Gbit 8 Port With ONU
Specifications
Brand Name :
ZTE
Model Number :
GTXO
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$280
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
80 pcs
Delivery Time :
3-5 working days
Packaging Details :
Box
Detail :
ZTE GTXO ZXA10 C320 C350 C300 8-port XG-PON OLT interface board (full with C+ modules)
Condition :
Original New; In Stock
Downstream_Rate :
2.488 Gbps (GPON), 1.25 Gbps (EPON)
Weight :
Approx. 3.5 kg
Upstream_Rate :
1.244 Gbps (GPON), 1.25 Gbps (EPON)
Model :
ZXA10 C320
Type :
Optical Line Terminal
Operating_Temperature :
-5°C to 55°C
Management :
SNMP, CLI, Web GUI
Pon_Technology :
GPON/EPON
Compliance :
ITU-T G.984, IEEE 802.3ah
Interface_Type :
Gigabit Ethernet, 10 Gigabit Ethernet
Fiber_Type :
Single-mode fiber
Power_Supply :
AC/DC redundant power supply
Max_Ports :
up to 16 PON ports
Dimensions :
440mm x 220mm x 44mm
Description

ZTE GTXO ZXA10 C320 C350 C300 8-port XG-PON OLT interface board (full with C+ modules)


ZTE GTXO Service Board is an 8-port 10G GPON OLT interface board, which cooperates with ONU to realize GPON access service.ZXA10 C320 is new-generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capability, single-frame can provide 32 G/EPON ports and 96 channels P2P GE port. ZTE C320 supports GPON/EPON/P2P/10G EPON/XG-PON1 with the same platform access, and will also support TWDM-PON technology; unified bearer voice, high-speed Internet access, IPTV, traditional TDM and mobile backhaul services. Integrated access; adopts large-scale OLT hardware and software architecture, supports architecture evolution, is compatible with ZXA10 C300 service boards, and saves board costs.


Quick Specification:



Brand

ZTE

Model

GTXO

Port

8

Forwarding Rate

40Gbit/s

Maximum differential fibre distance (km)

40

Board supporting downstream FEC

Yes

CAR

Yes

MAX Split ratio

0.219444444

Port Rate

Send:9.95Gbit/s

Receive:2.49Gbit/s

Working temperature

-40℃~+65℃

Board supporting upstream FEC

Yes

D-CCAP

Yes

GTXO Service Board Product Features:



• High Density, energy Saving, low power consumption, support 2048 access users.
• Manually shutdown of idle PON port to avoid power waste.
• Supporting the maximum distance difference between two ONUs and PON ports under the same PON port 40 km,simplified network planning.
• Intelligent Management Channel.
• Level 4 HQoS to Improve User Experience.
• Easy to operate and maintain.
• Real-time hooligans ONU detection and isolation to ensure stable operation of the business.


GTXO Service Board and More Service Boards:


GTGO

8 ports GPON board with 8 B+ modules.

GTGO

8 ports GPON board with 8 C+ modules.

GTGO

8 ports GPON board with 8 C++ modules.

GTGH

16 ports GPON board with 16 B+ modules.

GTGH

16 ports GPON board with 16 C+ modules.

GTGH

16 ports GPON board with 16 C++ modules.

GTTO

8 ports 10G GPON board with 8 10G GPON modules

GTXO

8 ports 10G GPON board with 8 10G GPON modules

ETGO

8 ports EPON board with 8 modules.

ETGH

16 ports EPON board with 16 modules

ETTO

8 ports 10G EPON board with 8 10G EPON modules
