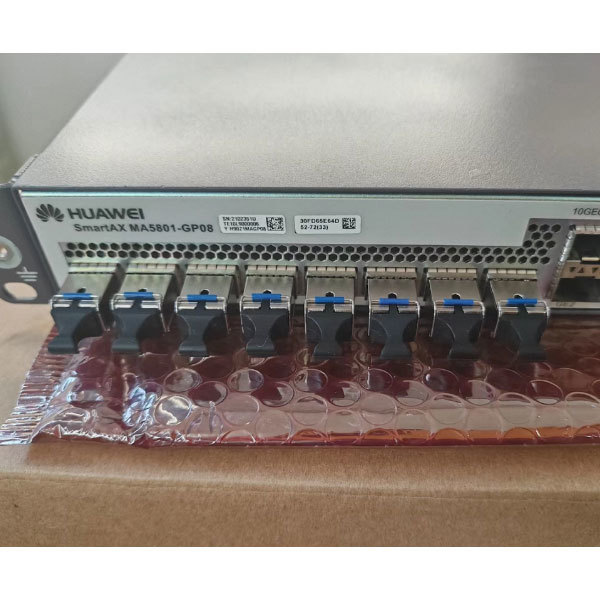

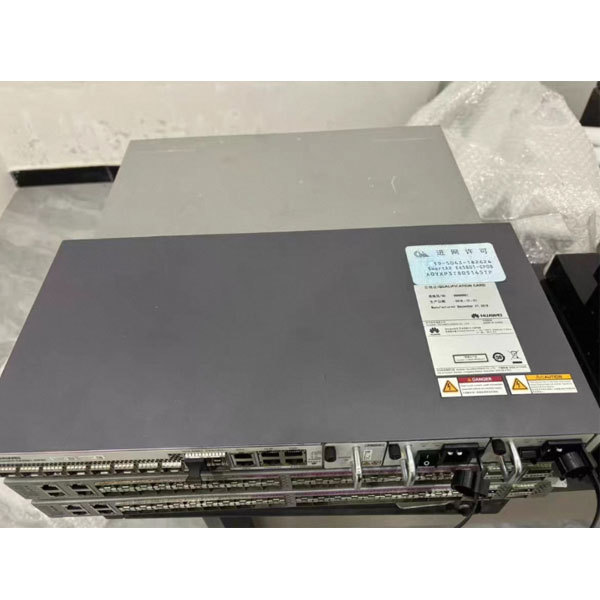

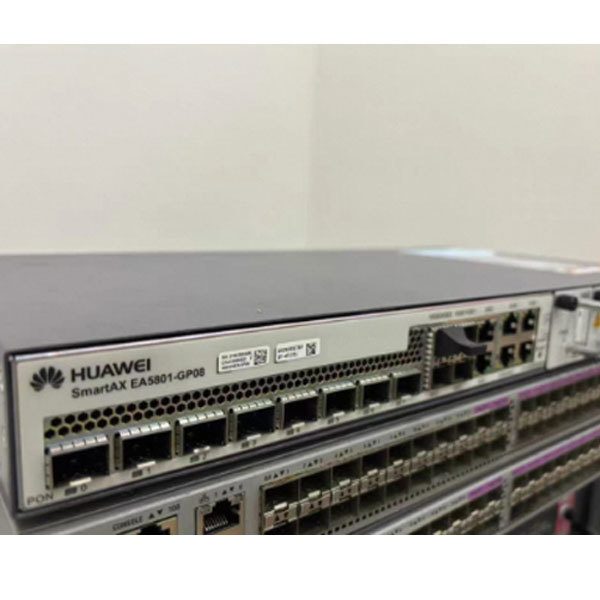

Huawei MA5801-GP08​ OLT with 8 GPON Interfaces in Compact 1 U Installation Space
Huawei MA5801-GP08​ OLT with 8 GPON Interfaces in Compact 1 U Installation Space
Huawei MA5801-GP08​ OLT with 8 GPON Interfaces in Compact 1 U Installation Space
Huawei MA5801-GP08​ OLT with 8 GPON Interfaces in Compact 1 U Installation Space
Huawei MA5801-GP08​ OLT with 8 GPON Interfaces in Compact 1 U Installation Space
Huawei MA5801-GP08​ OLT with 8 GPON Interfaces in Compact 1 U Installation Space
Huawei MA5801-GP08​ OLT with 8 GPON Interfaces in Compact 1 U Installation Space
Huawei MA5801-GP08​ OLT with 8 GPON Interfaces in Compact 1 U Installation Space
Specifications
Brand Name :
Huawei
Model Number :
EA5801-CG08-DC
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$1022
Payment Terms :
T/T,Western Union
Supply Ability :
20pcs
Delivery Time :
2 - 4 working days
Packaging Details :
Huawei box
Condition :
Original New
Dimension :
43.6 mm × 442 mm × 222.3 mm
Description

Overview


EA5801-GP08-DC ETSI is the Huawei EA5801 OLT, with 8 GPON interfaces and DC Power. The Huawei SmartAX EA5801 is a compact and low-density box-shaped OLT. It provides GPON or XG-PON&GPON combo access, and supports passive optical LAN (POL) and fiber to the home (FTTH) solutions. It carries all services over one fiber network, simplifying network architecture and reducing OPEX. The EA5801 houses integrated control and service module, 1 pluggable fan module and 2 pluggable power modules.

Quick Specification


Model

Huawei SmartAX EA5801-GP08-DC ETSI

Dimensions (H x W x D)

Without mounting ears: 43.6 mm x 442 mm x 222.3 mm

With IEC-standard mounting ears: 43.6 mm x 482.6 mm x 222.3 mm

With ETSI-standard mounting ears: 43.6 mm x 535 mm x 222.3 mm

Power Supply Mode

DC power supply (dual for backup)

Working Voltage Range

DC power supply: -38.4V to -72V

Rated Voltage

DC power supply: -48V/-60V

Maximum Input Current

DC power supply: 6A

MAC Addresses

32,768

ARP Table

16,384

GE Upstream Ports

2 optical/electrical combo ports

10 GE/GE Upstream Ports

2

Number of Service Ports

8 x GPON

Features Huawei SmartAX EA5801-GP08-DC provides:


★ Light-Weight OLT, Adapting to Various Scenarios
The EA5801 is a box-shaped OLT that requires 1 U installation space, making it applicable to access point convergence on a small scale. It is suitable for lightweight deployment in enterprises. One OLT can meet the service carrying requirements for an enterprise or campus.
★ PON Combo Technology
The EA5801-CG04 supports the PON combo technology, and can work with the built-in WDM1r optical module to support smooth evolution from GPON to XG-PON.
★ Rapid Deployment, Facilitating Installation and Saving Engineering Cost
The EA5801 can be installed in indoors or outdoors cabinets. When installed outdoors, it can be easily deployed in high temperatures, conserving man power and cabinet space.


Compare To Similar Items:


Model

EA5801-GP08-AC

EA5801-GP08-DC

EA5801-CG04-AC

EA5801-CG04-DC

Power Supply Mode

AC power supply (dual for backup)

DC power supply (dual for backup)

AC power supply (dual for backup)

DC power supply (dual for backup)

Working Voltage Range

AC power supply: 100V to 240V

DC power supply: -38.4V to -72V

AC power supply: 100V to 240V

DC power supply: -38.4V to -72V

Rated Voltage

AC power supply: 110V/220V

DC power supply: -48V/-60V

AC power supply: 110V/220V

DC power supply: -48V/-60V

Maximum Input Current

AC power supply: 2.5A

DC power supply: 6A

AC power supply: 2.5A

DC power supply: 6A

MAC Addresses

32,768

32,768

32,768

32,768

ARP Table

16,384

16,384

16,384

16,384

GE Upstream Ports

2 optical/electrical combo ports

2 optical/electrical combo ports

2 optical/electrical combo ports

2 optical/electrical combo ports

10 GE/GE Upstream Ports

2

2

2

2

Number of Service Ports

8 x GPON

8 x GPON

4 x G-PON and GPON combo

4 x G-PON and GPON combo
