Huawei SmartAX EA5801 OLT Switch with 8 PON Ports GPON and GPON Combo and Dual Power Modules
Huawei SmartAX EA5801 OLT Switch with 8 PON Ports GPON and GPON Combo and Dual Power Modules
Huawei SmartAX EA5801 OLT Switch with 8 PON Ports GPON and GPON Combo and Dual Power Modules
Huawei SmartAX EA5801 OLT Switch with 8 PON Ports GPON and GPON Combo and Dual Power Modules
Huawei SmartAX EA5801 OLT Switch with 8 PON Ports GPON and GPON Combo and Dual Power Modules
Huawei SmartAX EA5801 OLT Switch with 8 PON Ports GPON and GPON Combo and Dual Power Modules
Specifications
Brand Name :
Huawei
Model Number :
EA5801-CG04-DC
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$1022
Payment Terms :
T/T,Western Union
Supply Ability :
20pcs
Delivery Time :
2 - 4 working days
Packaging Details :
Huawei box
Condition :
Original Refurb New
Dimension :
43.6 mm × 442 mm × 222.3 mm
Description

Overview

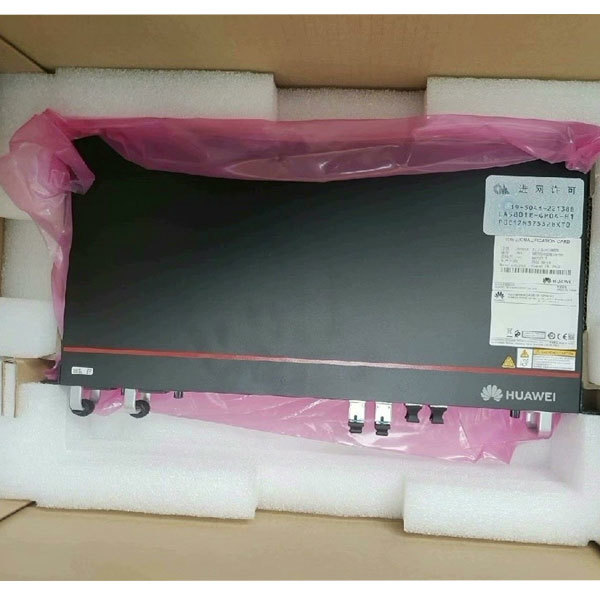

EA5801-CG04-DC ETSI is the Huawei EA5801 OLT, with 4 x G-PON and GPON combo and DC Power. The Huawei SmartAX EA5801 is a compact and low-density box-shaped OLT. It provides GPON or XG-PON&GPON combo access, and supports passive optical LAN (POL) and fiber to the home (FTTH) solutions. It carries all services over one fiber network, simplifying network architecture and reducing OPEX. The EA5801 houses integrated control and service module, 1 pluggable fan module and 2 pluggable power modules.


Specific Data Sheet:


Model

Huawei SmartAX EA5801-CG04-DC ETSI

Dimensions (H x W x D)

Without mounting ears: 43.6 mm x 442 mm x 222.3 mm

With IEC-standard mounting ears: 43.6 mm x 482.6 mm x 222.3 mm

With ETSI-standard mounting ears: 43.6 mm x 535 mm x 222.3 mm

Power Supply Mode

DC power supply (dual for backup)

Working Voltage Range

DC power supply: -38.4V to -72V

Rated Voltage

DC power supply: -48V/-60V

Maximum Input Current

DC power supply: 6A

Ambient Temperature

-40°C to +65°C* (normal operation), Minimum startup temperature: -25°C
*+65°C indicates the temperature of the air intake vent of the service subrack

Ambient Humidity

5% RH to 95% RH

Atmospheric Pressure

70 kPa to 106 kPa

Altitude

< 4,000m**
**The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude.

MAC Addresses

32,768

ARP Table

16,384

GE Upstream Ports

2 optical/electrical combo ports

10 GE/GE Upstream Ports

2

Number of Service Ports

4 x G-PON and GPON combo
