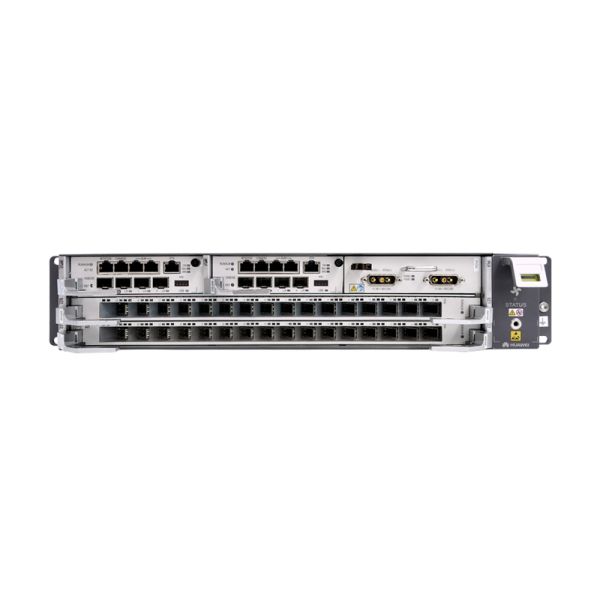

Huawei SmartAX OLT EA5800-X2 Optical Line Terminal with 2U High 19 Inches Wide and 100 Gbit/s Throughput
Huawei SmartAX OLT EA5800-X2 Optical Line Terminal with 2U High 19 Inches Wide and 100 Gbit/s Throughput
Huawei SmartAX OLT EA5800-X2 Optical Line Terminal with 2U High 19 Inches Wide and 100 Gbit/s Throughput
Huawei SmartAX OLT EA5800-X2 Optical Line Terminal with 2U High 19 Inches Wide and 100 Gbit/s Throughput
Huawei SmartAX OLT EA5800-X2 Optical Line Terminal with 2U High 19 Inches Wide and 100 Gbit/s Throughput
Huawei SmartAX OLT EA5800-X2 Optical Line Terminal with 2U High 19 Inches Wide and 100 Gbit/s Throughput
Huawei SmartAX OLT EA5800-X2 Optical Line Terminal with 2U High 19 Inches Wide and 100 Gbit/s Throughput
Huawei SmartAX OLT EA5800-X2 Optical Line Terminal with 2U High 19 Inches Wide and 100 Gbit/s Throughput
Specifications
Brand Name :
HUAWEI
Model Number :
MA5800X2
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$895
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100 pcs
Delivery Time :
3 -5 working days

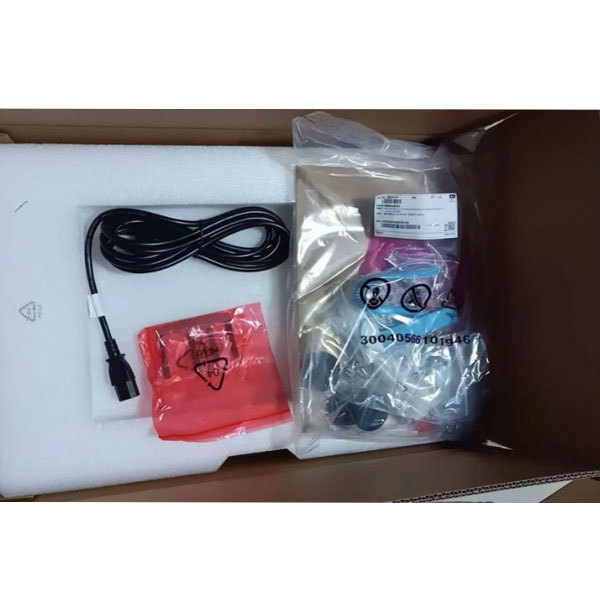

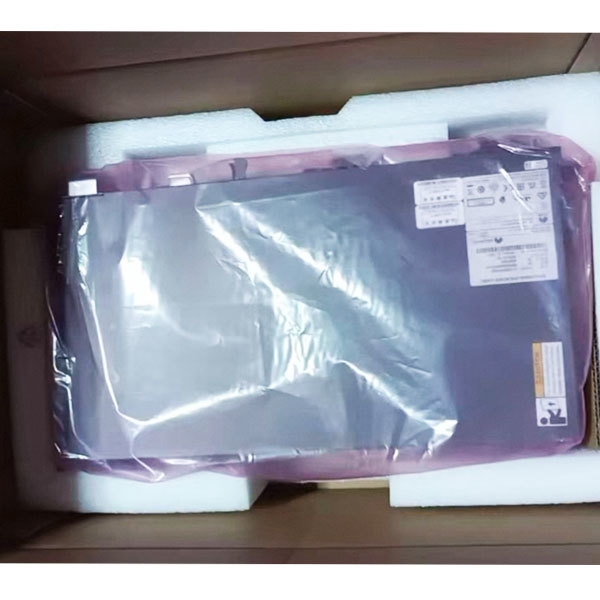

Packaging Details :
Sealed Box
Condition :
Original; Sealed New
Description

Overview


Huawei SmartAX EA5800 X2 provides a unified carrying platform for multiple services over one fibre network like broadband, wireless, video, and monitoring. Huawei SmartAX EA5800 X2 provides GPON, XG-PON, XGS-PON, P2P GE, and 10GE access, and supports POL, FTTH, FTTB, and FTTC network construction modes. Therefore, it simplifies network architecture and reduces OPEX.


Huawei SmartAX OLT EA5800-X2 Optical Line Terminal with 2U High 19 Inches Wide and 100 Gbit/s Throughput

Huawei SmartAX OLT EA5800-X2 Optical Line Terminal with 2U High 19 Inches Wide and 100 Gbit/s Throughput

Slot Type

Slot No.

Total

Control board (SCU) slot

2,3

2

Power board slot

0

1

Service board slot

1,2

2


Quick Specification


Model

Huawei SmartAX EA5800-X2 IEC

Supported Cabinets

N63E-22

Dimensions

2U high and 19 inches wide

Dimensions (H x W x D)

Excluding mounting brackets: 442 mm x 268.7 mm x 88.1 mm

Including IEC mounting brackets: 482.6 mm x 268.7 mm x 88.1 mm

Including ETSI mounting brackets: 535 mm x 268.7 mm x 88.1 mm

Maximum Weight (including mounting brackets)

9.4 kg

Power Supply Mode

DC power supply (dual backup)

AC power supply + battery for backup

Maximum Input Current

DC power supply: 20A

AC power supply: 8A

Features Huawei SmartAX EA5800-X2 provides:


★ Distributed Architecture: High Performing and Non-blocking
The EA5800 distributes service processing on the control board to every service board, improving system switching capacity and performance. Each slot can support a throughput of up to 100 Gbit/s, ensuring smooth services without interruption. The EA5800 supports distributed caching for channel zapping and fast starting of HD videos.
★ Software Hitless Upgrade: Upgrade Anytime
In the distributed architecture, control and forwarding are isolated, ensuring that services are not interrupted during device upgrades. This also reduces user complaints. Devices can be upgraded at daytime.
★ High Reliability
The EA5800 supports multiple protection mechanisms.
• Type B/type C dual-homing implements remote disaster recovery.
• 2 control boards and 2 power boards for redundancy.
• Dual-uplink protection.
★ Integrated Multiple Access Technologies
The EA5800 supports multiple access technologies, such as GPON, XG-PON, XGS-PON and P2P. Thus it is possible to carry multiple services on one optical network and save network construction costs.


The Accessories For SmartAX EA5800-X2 IEC:

Boards and Fan Tray:


Model name

Description

H902MPLAE

Huawei SmartAX EA5800 Main Processing Board

H901MPSCE

Huawei SmartAX EA5800 Main Processing Board

H901CIUA

Huawei SmartAX EA5800 Combo Interface Transfer Board

H901XGHDE

Huawei SmartAX EA5800 8-port Advanced XG-PON OLT Interface Board

H9010GHK

Huawei SmartAX EA5800 48-port Advanced GE/FE Optical Interface Board

H9010XHD

Huawei SmartAX EA5800 8-port Advanced 10GE Optical Interface Board

H9020XHD

Huawei SmartAX EA5800 8-port Advanced 10GE Optical Interface Board

H901GPSFE

Huawei SmartAX EA5800 16-port GPON OLT Interface Board

H9010XEG

Huawei SmartAX EA5800 24 port Aggregationed 10GE/GE Optical Interface Board

H901TWEDE

Huawei SmartAX EA5800 8-port Enhanced XGS-PON OLT Interface Board

H901XSHF

Huawei SmartAX EA5800 16-port XGS-PON OLT Interface Board

H902GPHFE

Huawei SmartAX EA5800 16-port GPON OLT Interface Board

H901NXED

Huawei SmartAX EA5800 8-port Enhanced 10GE Uplink Interface Board

H901PILA

Huawei SmartAX EA5800 Power Transfer Board

H901PISA

Huawei SmartAX EA5800 Power Transfer Board

H901PISB

Huawei SmartAX EA5800 Power Transfer Board

H902PISB

Huawei SmartAX EA5800 Power Transfer Board

H901FMSA

Huawei SmartAX EA5800 EA5800-X2 fan tray


Compare To Similar Items:


Parameters

MA5800-X17

MA5800-X15

MA5800-X7

MA5800-X2

Board Configuration

Control board slots: 9, 10
Service board or upstream interface board slots: 1 to 8, 11 to 19
Universal interface board slot: 0
Power board slots: 20, 21

Control board slots: 8, 9
Service board or upstream interface board slots: 1 to 7, 10 to 17
Universal interface board slot: 0
Power board slots: 18, 19

Control board slots: 8, 9
Service board or upstream interface board slots: 1 to 7
Universal interface board slot: 0
Power board slots: 10, 11

Control board slots: 3, 4
Service board or upstream interface board slots: 1 to 2
Does not support universal interface board
Power board slot: 0

Switching Capacity of the Control Board (load sharing mode)

3.6 Tbit/s

3.6 Tbit/s

3.6 Tbit/s

480 Gbit/s

Maximum Bandwidth per Service Slot (load sharing mode)

100 Gbit/s

100 Gbit/s

100 Gbit/s

80 Gbit/s

System Layer 2 Packet Forwarding Rate (load sharing mode)

5,298 Mpps

5,298 Mpps

5,298 Mpps

714 Mpps

Maximum Number of Concurrent 4K Video Users

16,000

16,000

8,000

2,000

Maximum Number of MAC Addresses

262,143

262,143

262,143

262,143

Maximum Number of ARP/Routing Entries

131,072

131,072

131,072

131,072

GPON Ports/ XG(S)-PON Ports

272

240

112

32

GE/FE Ports

816

720

336

96

10 GE Ports

408

360

168

16
