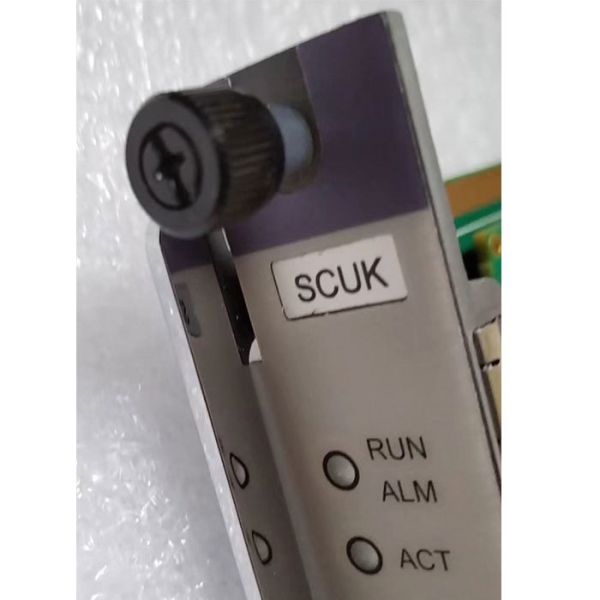

4x10GE Huawei oLT SCUK Control Board H801SCUK 960Gbit For MA5600T MA5603T
4x10GE Huawei oLT SCUK Control Board H801SCUK 960Gbit For MA5600T MA5603T
Specifications
Brand Name :
Huawei
Model Number :
SCUK
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$109
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100 pcs
Delivery Time :
3-5 working days
Packaging Details :
Box
Detail :
Huawei SmartAX MA5600T Super Control Unit Board
Condition :
Original New
Securityfeatures :
MAC address filtering, encryption, authentication
Main Control Board :
SCUN
Ac Power Support :
100V to 240V
Pon Capacity :
8-32Ports
Model :
MA5800-X7
Size :
19
Type :
Optical Line Terminal
Powersupply :
Dual AC/DC redundant power supply
Chassis :
2U
Dc Power Supply :
-38.4V to -72V
Pon Board :
XGHD,GPSF
Qosfeatures :
Traffic shaping, priority scheduling
Product Status :
Stock
Application :
FTTH FTTB FTTX Network
Dimensions :
442 mm x 420 mm x 44 mm
Description

Overview


The H801SCUK board is an integrated optical-copper super control unit board. It is the core for system control and service switching and aggregation, and is used for MA5600T / MA5603T subracks.




Quick Specification


Model

H801SCUK

LAN switch

24 x GE + 4 x 10GE

Switching capacity

• 480 Gbit/s (active/standby mode)

• 960 Gbit/s (load sharing mode)

Bandwidth per slot

• 10 Gbit/s (active/standby mode)

• 20 Gbit/s (load sharing mode)

MAC address table

32768

Access ONT

8192

Multicast user

8192

Product Details:


H801SCUK provides these benefits:
· Supports integrated optical copper access for GPON, P2P, xDSL, and voice services
· Supports up to 960 Gbit/s switching capacity
· Supports active/standby mode and load sharing mode, doubling processing performance
· Supports ISSU, saving the upgrade interruption time
· Supports 1588v2, and 1588 ACR by working together with the H801CKMD daughter board
H801SCUK provides these external interfaces:
· Management interfaces
- CON (RJ-45): RS-232 serial port
- ETH (RJ-45): 10/100M Base-T maintenance network port
- ESC (RJ-45): RS-485 monitoring serial port
· Communication Interfaces
- TX0 RX0 to TX3 RX3 (4 x SFP GE ports): Used for upstream transmission or cascading

Compare to Similar Items:


Model

H801SCUK

H801SCUH

LAN switch

24 x GE + 4 x 10GE

48 x10GE

Switching capacity

• 480 Gbit/s (active/standby mode)

• 960 Gbit/s (load sharing mode)

• 960 Gbit/s (active/standby mode)
• 1920 Gbit/s (load sharing mode)

Bandwidth per slot

• 10 Gbit/s (active/standby mode)

• 20 Gbit/s (load sharing mode)

• 20 Gbit/s (active/standby mode)
• 40 Gbit/s (load sharing mode)

MAC address table

32768

131072

Access ONT

8192

16384
