MA5600T MA5608T 2 uplink 1G MCUD1 MCUD mini Huawei Olt Board Mini Control Unit 256Gbit ODM
MA5600T MA5608T 2 uplink 1G MCUD1 MCUD mini Huawei Olt Board Mini Control Unit 256Gbit ODM
Specifications
Brand Name :
Huawei
Model Number :
MCUD1
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$510
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100 pcs
Delivery Time :
3-5 working days
Packaging Details :
Box
Detail :
Huawei SmartAX MA5600T Control Unit Board (GE/10GE Uplink)
Condition :
Original New
Application :
FTTH FTTB FTTX Network
Pon Capacity :
8-32Ports
Maxusersperport :
256 users
Pon Port Board :
GPBD,GPHD,GPFD,EPSD,EPBD，EPFD
Operatingtemperature :
-5°C to 55°C
Support :
L2/L3 Features
Dc Power Supply :
-38.4V to -72V
Compatibility :
Huawei, ZTE,BDCOM,Raisecom onus
Control Board :
2 x SCUN
Securityfeatures :
MAC address filtering, port isolation, encryption
Max Users :
136 x 10G GPON/10G EPON
Demension :
442mm*268.7mm*88.1mm
Backplanecapacity :
1.28 Tbps
Humidity :
5%~95% (non-condensing)
Chassis :
2U
Description

Overview

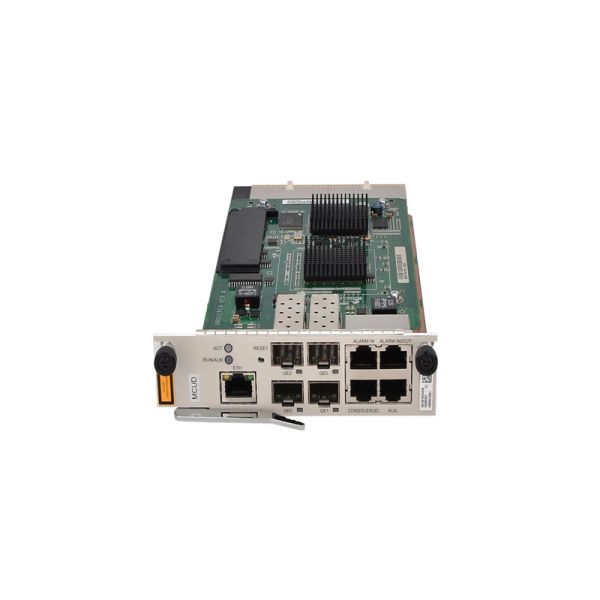

The H801MCUD1 board is an integrated optical-copper mini control unit board. It is the core for system control and service switching and aggregation, and is used for MA5608T subrack.




Quick Specification


Model

H801MCUD1

LAN switch

24 x GE + 4 x 10GE

Switching capacity

• 128 Gbit/s (active/standby mode)

• 256 Gbit/s (load sharing mode)

Bandwidth per slot

• 10 Gbit/s (active/standby mode)

• 20 Gbit/s (load sharing mode)

MAC address table

32768

Access ONT

• Before the V800R015C10 version: 2048

• V800R015C10 and later versions: 4096

Multicast user

4096

Product Details:


H801MCUD1 provides these benefits:
· Supports up to 256 Gbit/s switching capacity
· Supports active/standby mode and load sharing mode, doubling processing performance
· Supports ISSU, saving the upgrade interruption time
· Supports synchronization Ethernet, 3-stratum clock and 1588v2
H801MCUD1 provides these external interfaces:
· Management interfaces
- CONSOLE/ESC (RJ-45): CONSOLE: RS-232 serial port; ESC: RS-485 monitoring serial port
- ETH (RJ-45): 10/100M Base-T maintenance network port
- BITS/TOD (RJ-45): 1 input and 1 output of BITS clock signals. 1 input and 1 output of 1PPS+TOD time signals.
- ALARM IN/OUT (RJ-45): 7 alarm digital inputs and 1 alarm digital output
· Communication Interfaces
- GE0, GE1 (2 x SFP GE ports)
- 10GE0/GE2, 10GE1/GE3 (2 x SFP+ 10GE/GE ports): Used for upstream transmission or cascading

Compare to Similar Items:


Model

H801MCUD1

H801SCUH

LAN switch

24 x GE + 4 x 10GE

48 x10GE

Switching capacity

• 128 Gbit/s (active/standby mode)

• 256 Gbit/s (load sharing mode)

• 960 Gbit/s (active/standby mode)
• 1920 Gbit/s (load sharing mode)

Bandwidth per slot

• 10 Gbit/s (active/standby mode)

• 20 Gbit/s (load sharing mode)

• 20 Gbit/s (active/standby mode)
• 40 Gbit/s (load sharing mode)

MAC address table

32768

131072

Access ONT

• Before the V800R015C10 version: 2048

• V800R015C10 and later versions: 4096

16384
