10Gbit Gpon Card Huawei ETHB For OLT SmartAX MA5600T
10Gbit Gpon Card Huawei ETHB For OLT SmartAX MA5600T
10Gbit Gpon Card Huawei ETHB For OLT SmartAX MA5600T
10Gbit Gpon Card Huawei ETHB For OLT SmartAX MA5600T
Specifications
Brand Name :
Huawei
Model Number :
ETHB
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$72
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100 pcs
Delivery Time :
3-5 working days
Packaging Details :
Box
Detail :
Huawei SmartAX MA5600T Ethernet Service Access Board
Management Protocols :
SNMP, CLI, Web-based management
Port Count :
Typically 4 to 16 ports per board
Application :
FTTx, broadband access, enterprise network
Compatibility :
Compatible with Huawei MA5800 series OLT chassis
Dimensions :
Varies by model, typically standard board size for Huawei OLT chassis
Manufacturer :
Huawei
Data Rate :
Up to 10 Gbps per port
Power Supply :
AC/DC power options
Product Type :
Optical Line Terminal Board
Warranty :
Typically 1 to 3 years depending on purchase agreement
Operating Temperature :
-5°C to 55°C
Interface Type :
GPON, XG-PON, XGS-PON, EPON
Features :
High integration, low latency, energy efficient
Description

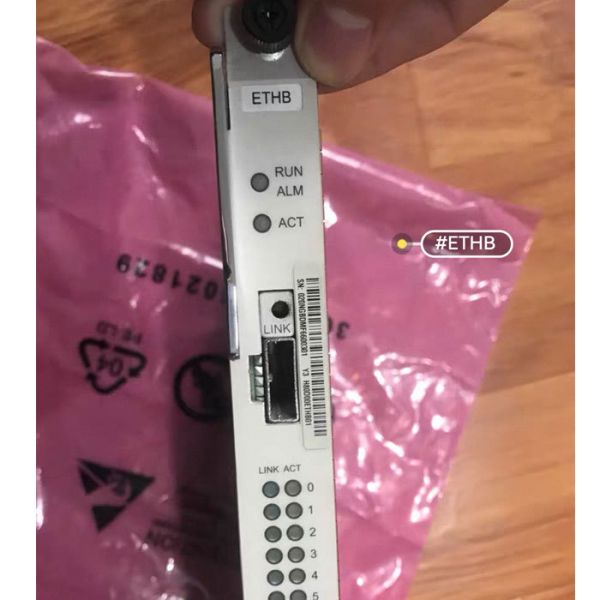

Huawei ETHB For Huawei OLT SmartAX MA5600T

Overview

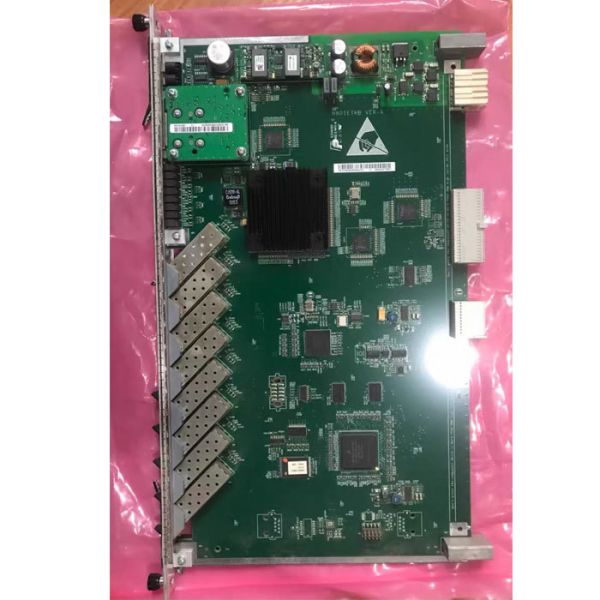

The H801ETHB board is an Ethernet service access board and has an optical or electrical module installed to support Ethernet upstream transmission and cascading.

Quick Specification

Model

H801ETHB

Forwarding capability

10 Gbit/s

MAC number

8192

Maximum frame size

• 2052 bytes
• 9216 bytes (jumbo frame enabled)

VLAN forwarding

VLAN+MAC

Ethernet cascading

Supported

Shaping in outband management

Supported

Clock synchronization

1588ACR

Link aggregation

Supported at Inter-board and Intra-board

MSTP ring network protection

Supported

Protection group

Supported

Smart link

Supported

Product Details:

H801ETHB provides these benefits:

· Intelligent management channel

- Shaping in outbound management, providing high-quality data and video services
- 9216 jumbo frames, greatly improving transmission efficiency
· Easy OAM: GE remote extended subrack cascading, reducing O&M costs
· High reliability
- Inter-board link aggregation
- Intra-board link aggregation
- MSTP ring network protection
- Protection group
- Smart link

H801ETHB provides these external interfaces:

· Tx0 Rx0 - Tx7 Rx7: 8*GE optical or electrical ports, which support uplink or cascading
· Inter-board interconnected port (HiGig port): If the MABC VER.A or MABH VER.B is used as the backplane, this port connects two H801ETHB boards

Compare to Similar Items:

Product Code

H801SPUF

H801ETHB

Forwarding capability

40 Gbit/s

10 Gbit/s

MAC number

32768

8192

Maximum frame size

• 2052 bytes
• 9216 bytes (jumbo frame enabled)

• 2052 bytes
• 9216 bytes (jumbo frame enabled)

VLAN forwarding

VLAN+MAC

VLAN+MAC

Shaping in outband management

Supported

Supported
