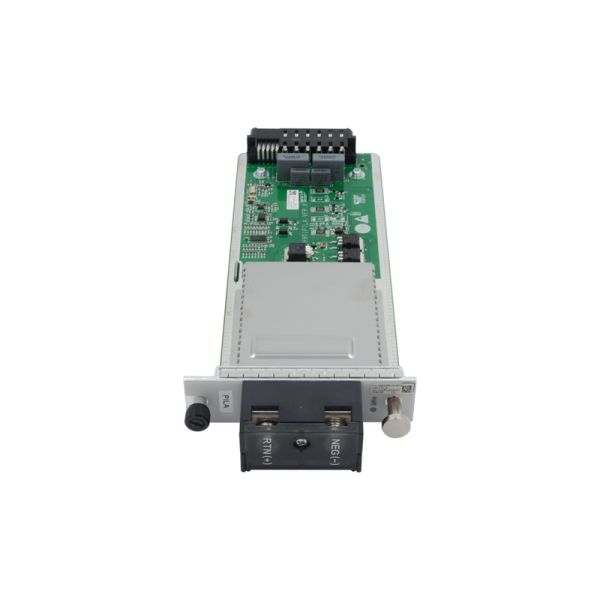

MA5800 Huawei OLT Board PILA H901PILA DC Power Board -48V -60V
MA5800 Huawei OLT Board PILA H901PILA DC Power Board -48V -60V
Specifications
Brand Name :
Huawei
Model Number :
PILA
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$76
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100 pcs
Delivery Time :
3-5 working days
Packaging Details :
Box
Detail :
H901PILA - Huawei MA5800-X7 Broadband Board
Humidity :
5%~95% (non-condensing)
Type :
Optical Line Terminal
Size :
19
Energyefficiency :
Complies with IEEE 802.3az
Ac Power Supply :
100V to 240V
Model :
MA5800-X7
Material :
Metal
Dc Power Supply :
-38.4V to -72V
Warranty :
2year
Managementprotocol :
SNMP, CLI, Web
Pon Port Board :
GPBD,GPHD,GPFD,EPSD,EPBD，EPFD
Control Board :
2 x SCUN
Main Control Board :
SCUN
Ac Power Support :
100V to 240V
Mac Addresses :
Huawei XG-PON OLT
Description

Overview


The H901PILA board leads in one -48 V or -60 V DC power through two 100 A OT terminals, and transfers the power to the protection circuit, then to the filter circuit, and finally to the backplane, supplying power to the service subrack and other boards.


Quick Specification



Board

H901PILA

Description

Connect Power Board

Discount Category

Broadband Board

Product Line

Networking

Sub Product Family

FTTx and Cable

UOM

PCS

Net Dimension(D*W*H mm)

253*24*97

Typic Power(W)

2.3

Product Details:


The H901PILA board supports the following features and specifications:

· One -48 V or -60 V DC power input (input voltage range: -38.4 V to -72 V)
· Filtering and current-limiting for the power input port
· Power input detection and protection fuse fault detection
· Reporting of the protection alarm and board online signal


The Accessories For H901PILA

Supported Platforms:


Model

Description

EA5800-X17

Huawei SmartAX EA5800-X17, large-capacity, ETSI, supports 17 service slots

EA5800-X15

Huawei SmartAX EA5800-X15, large-capacity, IEC, supports 15 service slots

EA5800-X7

Huawei SmartAX EA5800-X7, medium-capacity, supports 7 service slots

EA5800-X2

Huawei SmartAX EA5800-X2, small-capacity, supports 2 service slots
