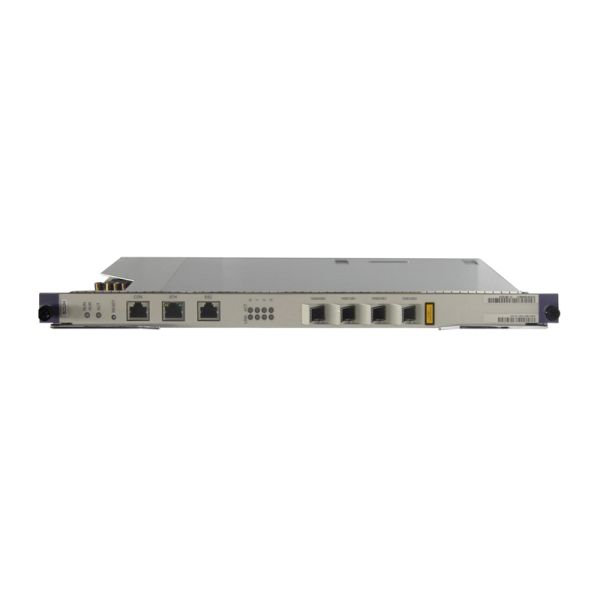

H801SCUH Olt Huawei Smartax MA5600T Control Board 1920 Gbit/S Supporting ISSU
H801SCUH Olt Huawei Smartax MA5600T Control Board 1920 Gbit/S Supporting ISSU
Specifications
Brand Name :
Huawei
Model Number :
SCUH
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$650
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100pcs
Delivery Time :
3-5 working days
Packaging Details :
Box
Detail :
Huawei SmartAX MA5600T Super Control Unit Board
Ac Power Support :
100V to 240V
Maxports :
16 PON ports
Setup Interface :
English
Condition :
Original new
Maxusers :
Up to 64,000 users
Support :
L2/L3 Features
Humidity :
5%~95% (non-condensing)
Compliancestandards :
ITU-T G.984, IEEE 802.3ah
Material :
Metal
Model :
MA5800-X7
Qosfeatures :
Traffic shaping, priority scheduling
Backplanecapacity :
Up to 1.6 Tbps
Size :
57*48*45cm
Powersupply :
Dual AC/DC redundant power supply
Managementprotocol :
SNMP, CLI, Web GUI
Description

Overview


The H801SCUH board is an integrated optical-copper super control unit board. It is the core for system control and service switching and aggregation, and is used for MA5600T/MA5603T subracks.




Quick Specification


Model

H801SCUH

LAN switch

48 x10GE

Switching capacity

• 960 Gbit/s (active/standby mode)
• 1920 Gbit/s (load sharing mode)

Bandwidth per slot

• 20 Gbit/s (active/standby mode)
• 40 Gbit/s (load sharing mode)

MAC address table

131072

Access ONT

16384

Multicast user

16384

Product Details:


H801SCUH provides these benefits:
· Supports up to 1920 Gbit/s switching capacity
· Supports active/standby mode and load sharing mode, doubling processing performance
· Supports ISSU, saving the upgrade interruption time
· Supports synchronization Ethernet
· Supports 1588v2
H801SCUH provides these external interfaces:
· Management interfaces
- CON (RJ-45): RS-232 serial port
- ETH (RJ-45): 10/100/1000M Base-T maintenance network port
- ESC (RJ-45): RS-485 monitoring serial port
· Communication Interfaces
- 10GE0/GE0 to 10GE3/GE3 (4 x SFP+ 10GE/GE ports): Used for upstream transmission or cascading

Compare to Similar Items:


Model

SCUH

SCUV

Description

an integrated optical-copper super control unit board

a super control unit board for optical access

LAN switch

48 x10GE

48 x10GE

Switching capacity

• 960 Gbit/s (active/standby mode)
• 1920 Gbit/s (load sharing mode)

• 960 Gbit/s (active/standby mode)

• 1920 Gbit/s (load sharing mode)

Bandwidth per slot

• 20 Gbit/s (active/standby mode)
• 40 Gbit/s (load sharing mode)

• 20 Gbit/s (active/standby mode)

• 40 Gbit/s (load sharing mode)

MAC address table

131072

131072

Access ONT

16384

16384
