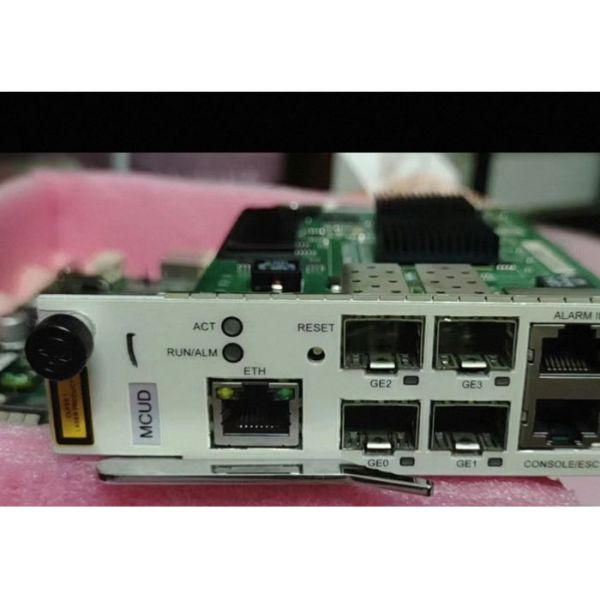

H801MCUD Huawei MCUD MA5600T Control Board 256 Gbit/s 24 x GE
H801MCUD Huawei MCUD MA5600T Control Board 256 Gbit/s 24 x GE
Specifications
Brand Name :
Huawei
Model Number :
MCUD
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$70
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100 pcs
Delivery Time :
3-5 working days
Packaging Details :
Box
Condition :
Original New; In Stock
Demension :
442mm*268.7mm*88.1mm
Ac Power Supply :
100V to 240V
Uplink Interface :
4 *GE (Optical )+2*GE(Electronic)
Pon Board :
XGHD,GPSF
Application :
FTTH FTTB FTTX Network
Humidity :
5%~95% (non-condensing)
Maxports :
16 PON ports
Securityfeatures :
Encryption, Authentication, ACL
Product Status :
Stock
Uplinkinterface :
10GE/40GE/100GE
Qos :
Supports multiple QoS policies
Support :
L2/L3 Features
Pon Capacity :
8-32Ports
Main Control Board :
SCUN
Type :
Optical Line Terminal
Description

Overview


The H801MCUD board is an integrated optical-copper mini control unit board. It is the core for system control and service switching and aggregation, and is used for MA5608T subrack.




Quick Specification


Model

H801MCUD

LAN switch

24 x GE + 4 x 10GE

Switching capacity

• 128 Gbit/s (active/standby mode)

• 256 Gbit/s (load sharing mode)

Bandwidth per slot

• 10 Gbit/s (active/standby mode)

• 20 Gbit/s (load sharing mode)

MAC address table

32768

Access ONT

• Before the V800R015C10 version: 2048

• V800R015C10 and later versions: 4096

Multicast user

4096

Product Details:


H801MCUD provides these benefits:
· Supports up to 256 Gbit/s switching capacity
· Supports active/standby mode and load sharing mode, doubling processing performance
· Supports ISSU, saving the upgrade interruption time
· Supports synchronization Ethernet
H801MCUD provides these external interfaces:
· Management interfaces
- CONSOLE/ESC (RJ-45)
- CONSOLE: RS-232 serial port.
- ESC: RS-485 monitoring serial port
- ETH (RJ-45): 10/100M Base-T maintenance network port
- AUX (RJ-45), Reserved
- ALARM IN/OUT (RJ-45): 7 alarm digital inputs and 1 alarm digital output
· Communication Interfaces
- GE0 to GE3 (4 x SFP GE ports): Used for upstream transmission or cascading

Compare to Similar Items:


Model

H801MCUD

H801SCUH

LAN switch

24 x GE + 4 x 10GE

48 x10GE

Switching capacity

• 128 Gbit/s (active/standby mode)

• 256 Gbit/s (load sharing mode)

• 960 Gbit/s (active/standby mode)
• 1920 Gbit/s (load sharing mode)

Bandwidth per slot

• 10 Gbit/s (active/standby mode)

• 20 Gbit/s (load sharing mode)

• 20 Gbit/s (active/standby mode)
• 40 Gbit/s (load sharing mode)

MAC address table

32768

131072

Access ONT

• Before the V800R015C10 version: 2048

• V800R015C10 and later versions: 4096

16384
