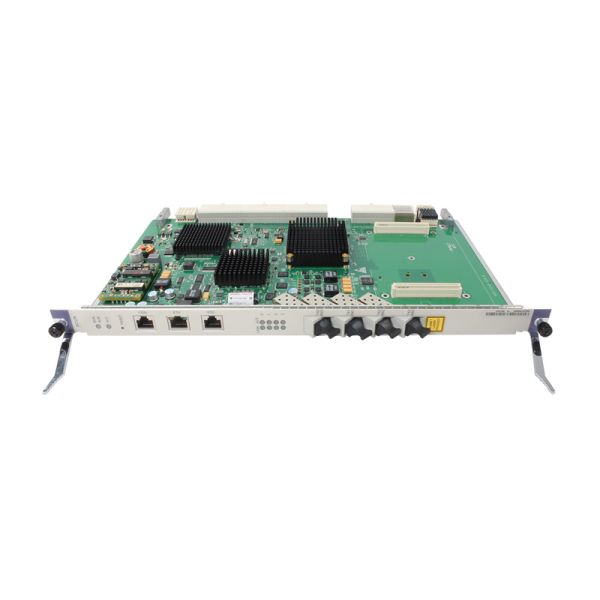

SCUN OLT Huawei Board H801SCUN Voip Module for Huawei OLT MA5603 MA5608
SCUN OLT Huawei Board H801SCUN Voip Module for Huawei OLT MA5603 MA5608
Specifications
Brand Name :
Huawei
Model Number :
SCUN
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$64
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100 pcs
Delivery Time :
3-5 working days
Packaging Details :
Box
Detail :
Huawei SmartAX MA5600T Super Control Unit Board
Pon Capacity :
8-32Ports
Weight :
Less than 10 kg
Securityfeatures :
MAC authentication, encryption, ACL
Operatingtemperature :
-5°C to +55°C
Dimensions :
442 mm x 420 mm x 44 mm
Size :
19
Compatibility :
Huawei, ZTE,BDCOM,Raisecom onus
Humidity :
5%~95% (non-condensing)
Chassis :
2U
Control Board :
2 x SCUN
Material :
Metal
Backplanecapacity :
1.28 Tbps
Pontype :
GPON/10GPON/XG-PON/XGS-PON
Dc Power Supply :
-38.4V to -72V
Capacity :
Huawei 10G GPON/10G EPON OLT
Description

Overview


The H801SCUN board is a super control unit board. It is the core of the system control and service switching and aggregation. The H801SCUN board can also function as the management and control core of the integrated network management system (NMS). It communicates with service boards about the key management and control information through the master/slave serial port and inband GE/10GE channel. In this manner, the H801SCUN board configures, manages, and controls the device, and also implements the simple route protocol functions.




Quick Specification


Model

H801SCUN

Access Service

Optical and copper

Daughter Board

H801FLBA

H801CKMC

H801CKMD

H801M2XA

Load sharing

Yes (supported in V800R011C00 and later versions)

Ethernet synchronization

No

Temperature querying and high temperature alarming

Yes

Built-in 2GB CF card

No

Centric Management for GE Remote Extended Subracks

Yes

D-CCAP

No

Product Details:


All MA5600T SCU boards support the functions as below:
- System control and management unit
- Active/standby switchover
- Local and remote maintenance through maintenance serial port CON or maintenance Ethernet port ETH
- Environmental monitoring through environment monitoring serial port ESC

Compare to Similar Items:


Board

H801SCUN

H801SCUB

Access Service

Optical and copper

Copper

Daughter Board

H801FLBA

H801CKMC

H801CKMD

H801M2XA

H801FLBA

H801CKMC

H801CKMD

Load sharing

Yes (supported in V800R011C00 and later versions)

No

Ethernet synchronization

No

No

Temperature querying and high temperature alarming

Yes

Yes

Built-in 2GB CF card

No

No

Centric Management for GE Remote Extended Subracks

Yes

No
