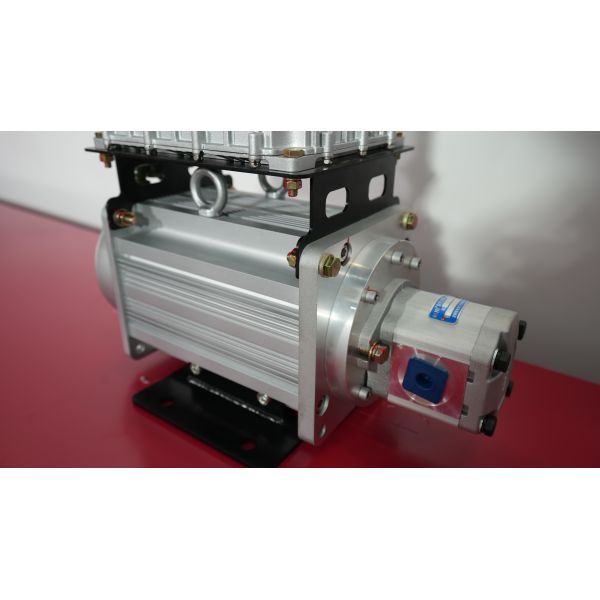

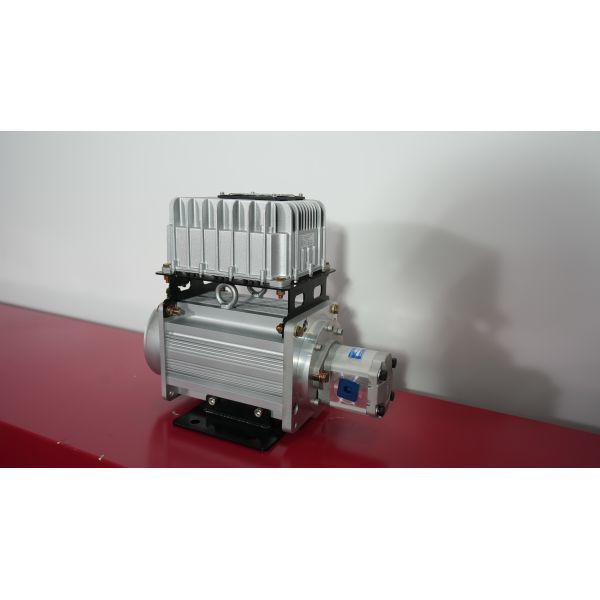

7.5kW IP67 Oil Pump Module Assembly with 540VDC PMSM Motor for Sweeper & Garbage Trucks
7.5kW IP67 Oil Pump Module Assembly with 540VDC PMSM Motor for Sweeper & Garbage Trucks
7.5kW IP67 Oil Pump Module Assembly with 540VDC PMSM Motor for Sweeper & Garbage Trucks
7.5kW IP67 Oil Pump Module Assembly with 540VDC PMSM Motor for Sweeper & Garbage Trucks
7.5kW IP67 Oil Pump Module Assembly with 540VDC PMSM Motor for Sweeper & Garbage Trucks
7.5kW IP67 Oil Pump Module Assembly with 540VDC PMSM Motor for Sweeper & Garbage Trucks
Specifications
Description
7.5kW Oil Pump Module Assembly | PMSM Motor, IP67, for Sweeper & Garbage Trucks
The Oil Pump Module Assembly is a high-performance, integrated pumping solution designed for hydraulic systems on sanitation vehicles and industrial equipment. It combines a 7.5kW permanent magnet synchronous motor (PMSM) with a precision-engineered pump end into a single, compact module—eliminating alignment issues, reducing installation time, and improving overall system reliability.
Product Specifications
Motor Model YW540-W7.5-1500 Motor Type 3-Phase Permanent Magnet Synchronous Motor (PMSM)
Winding Configuration Star Connection Cooling Method Natural Air Cooling
Rated Voltage 380VAC Battery Voltage 540VDC
Rated Speed 1500rpm Ingress Protection IP67
Rated Torque 47.7N.m Number of Poles 4
Rated Power 7.5KW Duty Cycle S1 (Continuous)
Rated Current 13.5A Insulation Class Class H
7.5kW IP67 Oil Pump Module Assembly with 540VDC PMSM Motor for Sweeper & Garbage Trucks 7.5kW IP67 Oil Pump Module Assembly with 540VDC PMSM Motor for Sweeper & Garbage Trucks
Engineered for continuous duty (S1) operation, this module delivers consistent hydraulic power for applications such as garbage truck compactor systems, sweeper brush lifts, and other hydraulically actuated equipment. The IP67-rated motor provides complete protection against dust and water ingress, ensuring reliable performance in harsh outdoor environments where exposure to moisture and debris is unavoidable.

7.5kW IP67 Oil Pump Module Assembly with 540VDC PMSM Motor for Sweeper & Garbage Trucks

Key Features
  • PMSM Technology – High efficiency, low maintenance, and precise speed control
  • IP67 Protection – Dust-tight and waterproof for all-weather operation
  • Natural Air Cooling – Simple, reliable thermal management without external plumbing
  • S1 Continuous Duty – Designed for extended operating hours
  • Class H Insulation – Withstands high temperatures for long-term reliability
  • 540V DC Compatibility – Ideal for electric and hybrid vehicle platforms
  • Compact Integrated Design – Reduces installation complexity and saves space
This module is available for OEM/ODM customization, allowing voltage, interface, and performance adjustments to meet your specific vehicle or system requirements.
