Integrated Water Pump Module – 30kW PMSM, 50m³/h, IP67
Product Overview

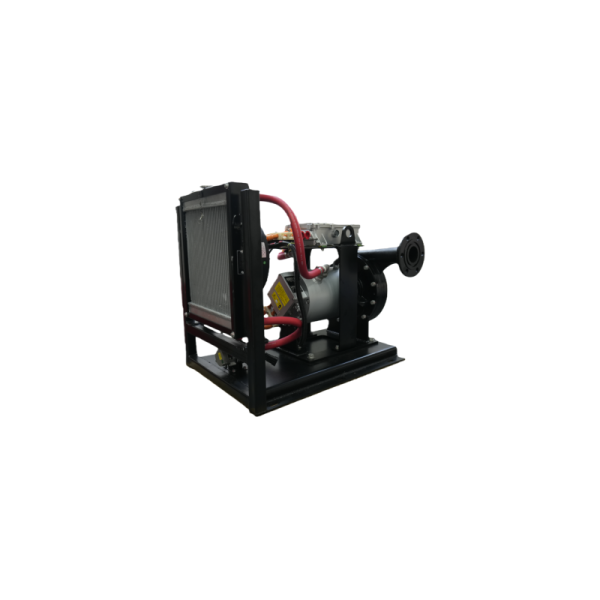

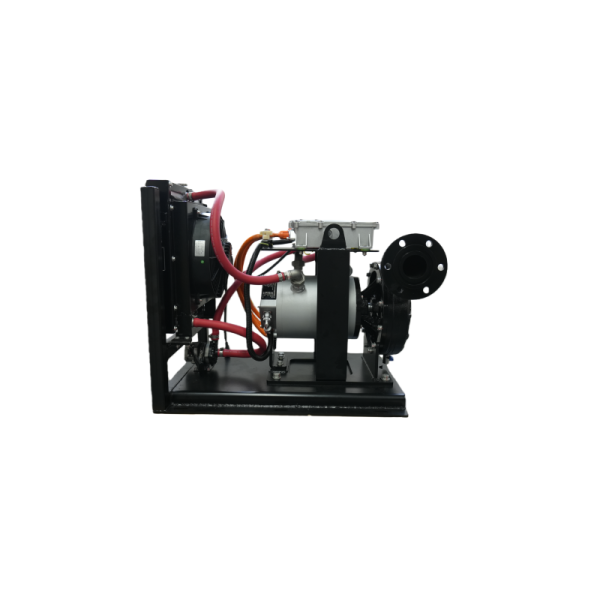

The Integrated Water Pump Module is a high-performance, space-saving solution designed for demanding sanitation vehicle applications. It combines a permanent magnet synchronous motor (PMSM) and a centrifugal pump into a single, modular unit—eliminating the need for external couplings and alignment, reducing installation complexity, and improving overall system reliability.
Technical Specifications
Pump Type Centrifugal Electric Pump
Flow Rate 50 m³/h
Head / Pressure 110 m
Motor Type Permanent Magnet Synchronous Motor (PMSM)
Winding Configuration Star Connection
Cooling Method Water Cooling (via flow channel)
Rated Voltage 380 VAC
Battery Voltage 540 VDC
Rated Speed 3200 rpm
Motor Protection Class IP67
Rated Power 30 kW
Duty Cycle S1 (Continuous)
Rated Current 51 A
Insulation Class Class H
Integrated Water Pump Module with 30kW PMSM Motor, 50 m³/h Flow Rate, and IP67 Protection for Municipal Vehicles Integrated Water Pump Module with 30kW PMSM Motor, 50 m³/h Flow Rate, and IP67 Protection for Municipal Vehicles
Performance & Applications
Engineered for efficiency and durability, this module delivers a flow rate of 50 m³/h and a head of 110 meters, making it ideal for high-pressure washing, dust suppression, and water transfer tasks on sweepers, street flushers, and other municipal vehicles.
Key Features
  • Integrated design – motor and pump in one compact housing
  • PMSM technology – high efficiency, low maintenance
  • Water cooling via internal flow channels for optimal thermal management
  • IP67 protection – dust-tight and waterproof for harsh outdoor environments
  • S1 continuous duty – suitable for long operating hours
  • Class H insulation – withstands high temperatures
Whether you're upgrading existing equipment or developing new vehicle platforms, this module offers a plug-and-play solution backed by precision engineering and rigorous testing.
We support OEM/ODM customization to match your specific voltage, performance, and interface requirements.
