High-Pressure Pump Module for Sweeper Trucks | 10kW PMSM, IP67 Rated
Product Specifications
Motor Model YW326-W10-1500A Motor Type 3-Phase Permanent Magnet Synchronous Motor (PMSM)
Winding Configuration Star Connection Cooling Method Natural Air Cooling
Rated Voltage 230VAC Battery Voltage 326VDC
Rated Speed 1500rpm Ingress Protection IP67
Rated Torque 63.6N.m Number of Poles 4
Rated Power 10KW Duty Cycle S1 (Continuous)
Rated Current 27A Insulation Class Class H

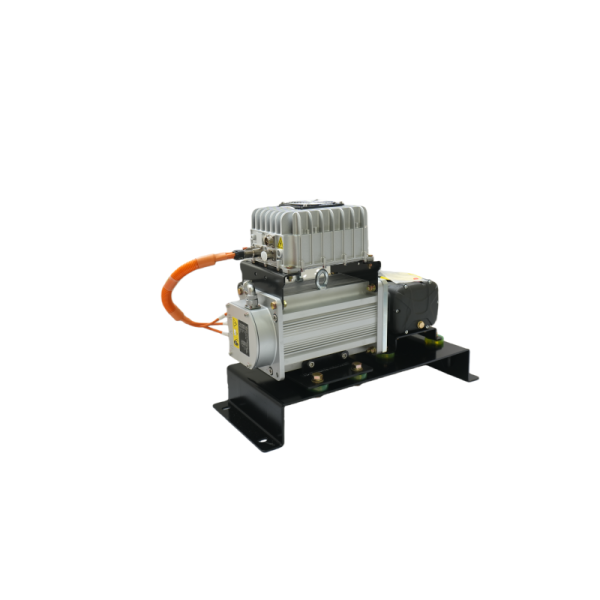

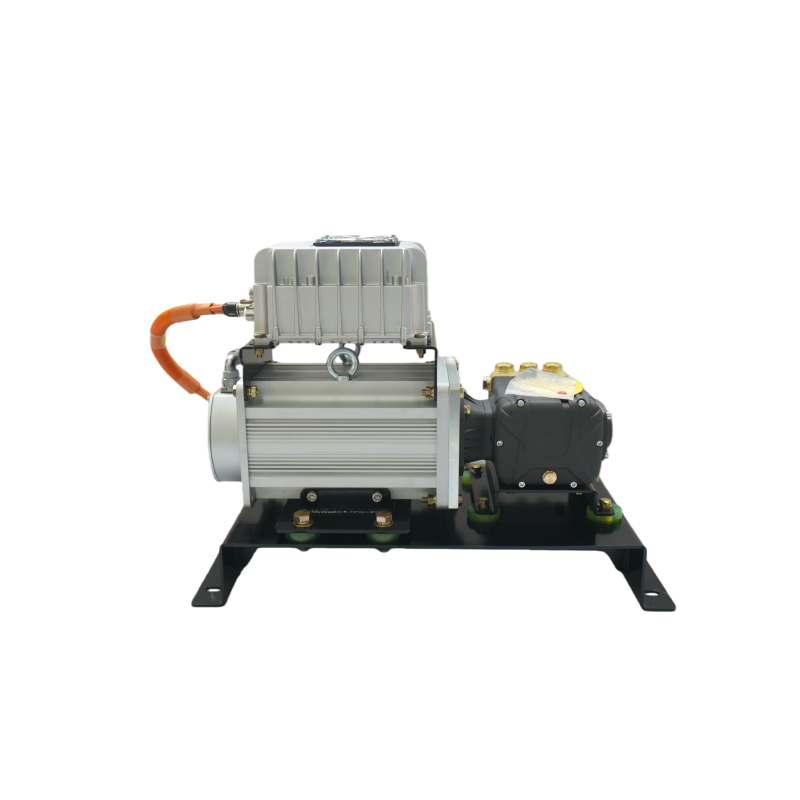

The High-Pressure Water Pump Module is a compact, high-efficiency pumping solution engineered for demanding sanitation and industrial applications. It integrates a 10kW permanent magnet synchronous motor (PMSM) with a precision-engineered pump end, delivering reliable performance in a space-saving package.
10kW PMSM High-Pressure Pump Module with IP67 Rating for Continuous Duty in Sweeper Trucks 10kW PMSM High-Pressure Pump Module with IP67 Rating for Continuous Duty in Sweeper Trucks
With a rated flow and pressure capacity suitable for sweeper truck washdown systems, high-pressure cleaning, and dust suppression, this module is built to perform under continuous duty (S1) conditions. The IP67-rated motor ensures complete protection against dust and water ingress, making it ideal for harsh outdoor environments where exposure to moisture and debris is unavoidable.
Key Features
  • PMSM Technology – High efficiency, low maintenance, and precise speed control
  • IP67 Protection – Dust-tight and waterproof for all-weather operation
  • Natural Air Cooling – Simple, reliable thermal management without additional plumbing
  • S1 Continuous Duty – Designed for extended operating hours
  • Class H Insulation – Withstands high temperatures for long-term reliability
  • Compact Footprint – Easy integration into vehicle chassis or equipment skids
This module is available for OEM/ODM customization, allowing voltage, interface, and performance adjustments to meet your specific vehicle or system requirements.
