10kW Oil Pump Motor for Sweepers & Garbage Trucks | IP67 PMSM
Product Specifications
Motor Model YW326-W10-1500B
Motor Type 3-Phase Permanent Magnet Synchronous Motor (PMSM)
Winding Configuration Star Connection
Cooling Method Natural Air Cooling
Rated Voltage 230VAC
Battery Voltage 326VDC
Rated Speed 1500rpm
Ingress Protection IP67
Rated Torque 63.6N.m
Number of Poles 4
Rated Power 10KW
Duty Cycle S1 (Continuous)
Insulation Class Class H
10kW Oil Pump Motor with IP67 Protection and 1500rpm Speed for Sweepers & Garbage Trucks

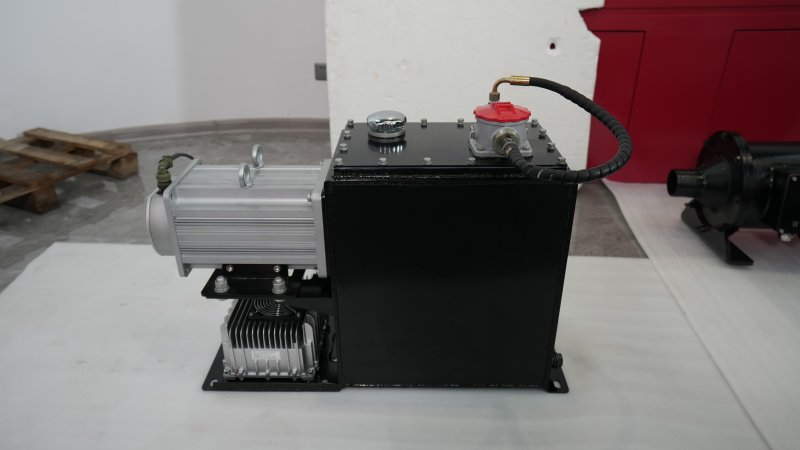

The Oil Pump Motor Module is a compact, high-efficiency permanent magnet synchronous motor (PMSM) designed specifically for hydraulic pump applications in sanitation vehicles and industrial equipment. With 10kW rated power and 63.6 N·m torque at 1500rpm, this module delivers reliable hydraulic power for systems such as garbage truck compactors, sweeper brush lifts, and other hydraulically actuated mechanisms.
Engineered for continuous duty (S1 operation), the motor features IP67 ingress protection—complete dust-tight and waterproof sealing for harsh outdoor environments where exposure to moisture, dust, and debris is unavoidable. The natural air cooling system simplifies installation and eliminates the need for external cooling circuits, while Class H insulation ensures long-term reliability even under high-temperature conditions.

10kW Oil Pump Motor with IP67 Protection and 1500rpm Speed for Sweepers & Garbage Trucks

Key Features
  • 10kW PMSM Technology - High efficiency, precise speed control, low maintenance
  • Natural Air Cooling - Simple, reliable thermal management without external plumbing
  • IP67 Protection - Dust-tight and waterproof for all-weather operation
  • 326V DC Compatibility - Ideal for electric and hybrid vehicle platforms
  • S1 Continuous Duty - Designed for extended operating hours without interruption
  • Class H Insulation - Withstands high temperatures for enhanced durability
  • Compact Design - Easy integration into vehicle hydraulic systems
This motor module is available for OEM/ODM customization, allowing voltage, interface, and performance adjustments to meet your specific vehicle or system requirements.
