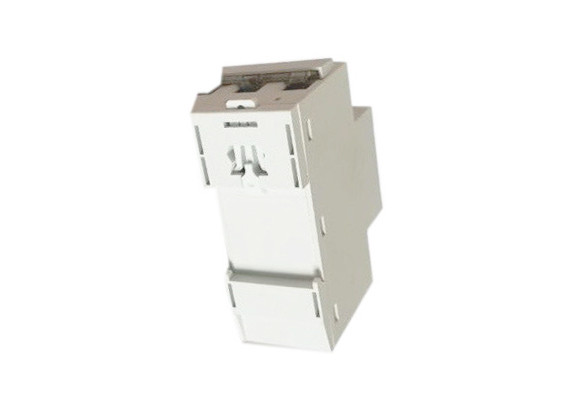

40kA Din Rail Mounting Surge Protection Device IEC61643 Standard Lightning Protector
40kA Din Rail Mounting Surge Protection Device IEC61643 Standard Lightning Protector
40kA Din Rail Mounting Surge Protection Device IEC61643 Standard Lightning Protector
40kA Din Rail Mounting Surge Protection Device IEC61643 Standard Lightning Protector
40kA Din Rail Mounting Surge Protection Device IEC61643 Standard Lightning Protector
40kA Din Rail Mounting Surge Protection Device IEC61643 Standard Lightning Protector
40kA Din Rail Mounting Surge Protection Device IEC61643 Standard Lightning Protector
40kA Din Rail Mounting Surge Protection Device IEC61643 Standard Lightning Protector
Specifications
Uc :
150V / 275V / 320V / 385V / 440V
Material :
Thermal plastic UL94-V0
Item :
Surge protection device
Mounting on :
35mm Din rail
tA :
≤25ns
Tu :
-40℃...+80℃
Keyword :
lightning protection
Brand Name :
BRITEC
Model Number :
BR-40 1P
Certification :
CE/TUV/CB/S
Place of Origin :
China
MOQ :
100 piece / pieces
Payment Terms :
T/T
Supply Ability :
100000 pieces per month
Delivery Time :
15-30 days after payment
Packaging Details :
EXPORT PACKING
In :
20kA
Imax :
40kA
Test standards :
IEC 61643-11 / EN61643-11
Class :
Type 2
Description
SPD 40kA 1P Lightning Protector Din Rail Anti Lightning Electric System IEC61643
Product Features
  • BR-40 1P is for low-voltage power supply 150V / 275V / 320V / 385V / 440V, Imax 40kA, 1pole
  • Class II / Type 2 surge protection
  • Designed and manufactured according to IEC61643 standard
  • Remote signaling can select
  • Designed as module and 35mm din rail mounting
  • With working indication window, fault indication via red mark in the inspection window
  • Accordance with the criterion of surge protective devices connected to low-voltage power systems
Product Specifications
Model BR-40 150 1P BR-40 275 1P BR-40 320 1P BR-40 385 1P BR-40 440 1P
SPD classification (EN61643-11) Type 2 Type 2 Type 2 Type 2 Type 2
SPD classification (IEC61643-11) Class II Class II Class II Class II Class II
Max. continuous operating voltage Uc 150V 275V 320V 385V 440V
Nominal discharge current In (8/20us) 20kA 20kA 20kA 20kA 20kA
Max. discharge current Imax (8/20μs) 40kA 40kA 40kA 40kA 40kA
Voltage protection level Up ≤0.8kV ≤1.3kV ≤1.5kV ≤1.8kV ≤2.0kV
Voltage protection level Up (5kA) ≤0.6kV ≤1kV ≤1.2kV ≤1.4kV ≤1.6kV
Max. backup fuse 125A gG 125A gG 125A gG 125A gG 125A gG
Response time tA ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns
Operating temperature range Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state / fault indication green / red green / red green / red green / red green / red
Cross-section area (Min.) 4mm² 4mm² 4mm² 4mm² 4mm²
Cross-section area (Max.) 35mm² 35mm² 35mm² 35mm² 35mm²
Degree of protection IP20 IP20 IP20 IP20 IP20
Order Code B8101 B8103 B8105 B8107 B8109
Order Code (With remote signaling) B8102 B8104 B8106 B8108 B8110
For mounting on: 35mm Din rail
Enclosure material: Thermoplastic UL94-V0
Dimensions
40kA Din Rail Mounting Surge Protection Device IEC61643 Standard Lightning Protector
Applications
BR-40 1P surge protective device are suitable for lightning and surge protection in AC 50/60Hz systems including:
  • Communications systems
  • TV broadcasting equipment
  • Computer rooms
  • Automatic control systems
  • Mechanical and electric control systems
  • Mechanical and electrical equipment
  • Related AC power equipment
For the protection of low voltage equipment against transient voltages and current surges from lightning and transients produced by switching characteristics such as in switching of distribution networks, transformers, motors, etc.
Product Advantages
  • Low leakage current, fast response time, low residual voltage
  • Modular design for easy installation
  • Advanced technology with high-energy protection
  • Window color indicates working condition
  • OEM & ODM services available
  • Custom production according to customer requirements
Our Services
  • 22 years global leading profession manufacture of electrical products surge arrester
  • All products well packed before shipping
  • Standard packaging with custom packaging options available
  • Faster delivery times
  • Individually tested prior to shipment
Installation Guidelines
  • The line of surge arresters includes a full range of compact protectors for installation on DIN rail
  • When the fault indication window turns from green to red, replace the cartridge as soon as possible
  • After installation, check that the protection unit is plugged in place, close the automatic circuit breaker (fuse) switch, and verify normal working status
Company Information
We provide service for surge protection solutions.
40kA Din Rail Mounting Surge Protection Device IEC61643 Standard Lightning Protector
Certifications
40kA Din Rail Mounting Surge Protection Device IEC61643 Standard Lightning Protector
Frequently Asked Questions
Q1: Are you trading company or manufacturer?
A: We are manufacturer.
Q2: How long is your delivery time?
A: Generally, within 30 days.
Q3: Do you provide samples? Is it free or extra?
A: We can provide samples, but it is not free.
Q4: Can we visit your factory?
A: Warmly welcome!
