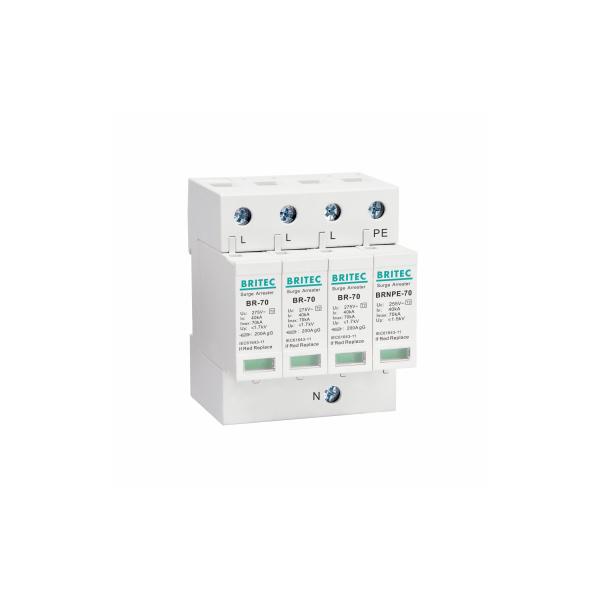

385V 70kA Pluggable Type 2 Surge Protection Device Lightning Arrester for AC Safety
385V 70kA Pluggable Type 2 Surge Protection Device Lightning Arrester for AC Safety
385V 70kA Pluggable Type 2 Surge Protection Device Lightning Arrester for AC Safety
385V 70kA Pluggable Type 2 Surge Protection Device Lightning Arrester for AC Safety
Specifications
Brand Name :
BRITEC
Model Number :
BR-70 3P+NPE
Certification :
CE
Place of Origin :
China
MOQ :
100 piece / pieces
Payment Terms :
T/T
Supply Ability :
100000 pieces per month
Delivery Time :
15-30 days after payment
Packaging Details :
EXPORT PACKING
SPD Type :
Type 2 Class II
Protection Degree :
IP20
In :
40kA
Application :
AC Power, Telecom Towers
Item :
Lightning arrester
Operating Temperature :
-40℃ to 80℃
Enclosure Material :
Thermoplastic UL94-V0
Poles No. :
3+npe
Poles :
3P+NPE
Backup Fuse :
200A gG
Keyword :
lightning protection
Response Time :
≤25ns ≤100ns
Voltage Protection Level :
≤2.3kV
Imax :
70kA
Tu :
-40℃...+80℃
Mounting :
35mm DIN Rail
Uc :
385V
Test Standards :
IEC 61643-11
Description
385V Type 2 Surge Protection Device Pluggable Lightning Arresters 3+ Npe AC Safety Reserve
Product Features
  • Type 2, Imax 70kA
  • Degree of protection: IP20
  • For mounting on: 35 mm Din rail
  • Plug-in modules for easy replacement
  • Option to remotely monitor the status of the surge protector
  • BR-70 3P+NPE with dedicated protection of the neutral pole discharge the common and differential mode overvoltages that may occur in installations with TT and TN-S systems
Technical Specifications
Model BR-70 150 3P+NPE BR-70 275 3P+NPE BR-70 320 3P+NPE BR-70 385 3P+NPE
SPD classification (EN61643-11) Type 2 Type 2 Type 2 Type 2
SPD classification (IEC61643-11) Class II Class II Class II Class II
Max. continuous operating voltage (L-N)Uc 150V 275V 320V 385V
Max. continuous operating voltage (N-PE)Uc 255V 255V 255V 255V
Nominal discharge current (8/20us) In 40kA 40kA 40kA 40kA
Max. discharge current (8/20μs) Imax 70kA 70kA 70kA 70kA
Voltage protection level (L-N)Up ≤1.0kV ≤1.7kV ≤2.0kV ≤2.3kV
Voltage protection level (N-PE)Up ≤1.5kV ≤1.5kV ≤1.5kV ≤1.5kV
Follow current extinguishing capability (N-PE) Ifi 100Arms 100Arms 100Arms 100Arms
Max. backup fuse 200A gG 200A gG 200A gG 200A gG
Response time tA ≤25ns/≤100ns
Operating temperature range -40℃-80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Degree of protection IP20
Order Code B8292 B8294 B8296 B8298
Order Code (With remote signaling) B8293 B8295 B8297 B8299
Product Dimensions
385V 70kA Pluggable Type 2 Surge Protection Device Lightning Arrester for AC Safety
Applications
Lightning strikes create surge currents which generate overvoltages in the power distribution and data transmission networks. The surge protective devices divert the surge current harmlessly to the ground and limit overvoltage to values compatible with the equipment connected to the network.
The series protects private homes, industrial equipment, and radio base stations. Used for AC power lines in houses, banks, telecom towers, and similar applications.
Product Advantages
  • Easy changing of the surge protection module thanks to a two-part design
  • Clearly readable function control indication and status display
  • Customizable color options
  • Customizable logo
  • Customizable packaging
Our Services
  • 22 years global leading profession manufacture of electrical products surge arrester
  • All products will be well packed before shipping
  • Standard packaging with custom packaging options available
  • Faster delivery
  • Individually tested prior to shipment
Certifications
385V 70kA Pluggable Type 2 Surge Protection Device Lightning Arrester for AC Safety
Shipping Information
385V 70kA Pluggable Type 2 Surge Protection Device Lightning Arrester for AC Safety
Company Profile
Wenzhou Britec Electric Co., Ltd. is founded in 2003, which is a professional SPD manufacturer. Through the unremitting efforts of company leaders and employees, it has formed a one-stop service enterprise integrating technology, research and development, design, production and sales, and is committed to creating high-quality surge protection products. Our products have been tested and certified by testing agencies and hold certification certificates.
385V 70kA Pluggable Type 2 Surge Protection Device Lightning Arrester for AC Safety
Why You Need Surge Arresters
Surge arresters are designed to interrupt and divert transient surge events to ground. Surge events are responsible for significant damage annually and can be caused by electrical storms or bank switching on electrical distribution lines. These events can affect sensitive electrical equipment, telephone networks, and computer networks.
SPDs are designed to protect sensitive equipment, minimize preventative maintenance, and prevent unscheduled equipment downtime.
