Type 2 Surge Protection Device 40kA DIN Rail Lightning Arrester 5 Year Warranty
Type 2 Surge Protection Device 40kA DIN Rail Lightning Arrester 5 Year Warranty
Type 2 Surge Protection Device 40kA DIN Rail Lightning Arrester 5 Year Warranty
Type 2 Surge Protection Device 40kA DIN Rail Lightning Arrester 5 Year Warranty
Specifications
Color :
White
Test standards :
IEC 61643-11 / EN61643-11
Product Warranty :
5 years
Maximum continuous operating voltage :
150V/275V/320V/385V/440V AC
SPD Type :
Type 2 Class II
Response Time :
≤25ns
Installation Type :
Mounting on DIN rail 35mm
Number of Poles :
1P
Mounting :
35mm DIN Rail
Protection Degree :
IP20
Operating Temperature :
-40℃ to 80℃
Current Wave :
8/20 µs
Warranty :
5 Years
Voltage Protection Level :
≤1.5kV
Dimensions :
90 x 70 x 18 mm
Max Continuous Voltage :
150V-440V AC
Keyword :
lightning protection
Nominal Discharge Current :
20kA (8/20μs)
Installation :
Parallel Arrester
Max Discharge Current :
40kA (8/20μs)
Brand Name :
BRITEC
Model Number :
BR-40 1P
Certification :
CE/TUV/CB/S
Place of Origin :
China
MOQ :
100 piece / pieces
Payment Terms :
T/T
Supply Ability :
100000 pieces per month
Delivery Time :
15-30 days after payment
Packaging Details :
EXPORT PACKING
Pole :
1P
Enclosure Material :
Thermoplastic UL94-V0
Description
35mm Type 2 Surge Arrester DIN Rail Surge Protector 1P Product Features
  • Protection class: Type 2, Class II
  • Pole number: 1P
  • Max. continuous operating voltage (Uc) (AC): 150V / 275V / 320V / 385V / 440V
  • Nominal discharge current (8/20μs) (In): 20kA
  • Max. discharge current (8/20μs) (Imax): 40kA
  • Width of one pole: 18mm
  • Remote contacts: available
  • High performance varistor with thermal disconnection tripping device
Technical Specifications
Model BR-40 150 1P BR-40 275 1P BR-40 320 1P BR-40 385 1P BR-40 440 1P
SPD classification (EN61643-11) Type 2 Type 2 Type 2 Type 2 Type 2
SPD classification (IEC61643-11) Class II Class II Class II Class II Class II
Max. continuous operating voltage Uc 150V 275V 320V 385V 440V
Nominal discharge current In 20kA 20kA 20kA 20kA 20kA
Max. discharge current Imax 40kA 40kA 40kA 40kA 40kA
Voltage protection level Up ≤0.8kV ≤1.3kV ≤1.5kV ≤1.8kV ≤2.0kV
Voltage protection level 5kA Up ≤0.6kV ≤1kV ≤1.2kV ≤1.3kV ≤1.5kV
Max. backup fuse 100A gG 100A gG 100A gG 100A gG 100A gG
Response time tA ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns
Operating temperature range Tu -40°C - 80°C -40°C - 80°C -40°C - 80°C -40°C - 80°C -40°C - 80°C
Cross-section area (Min.) 4mm² 4mm² 4mm² 4mm² 4mm²
Cross-section area (Max.) 35mm² 35mm² 35mm² 35mm² 35mm²
For mounting on 35mm DIN rail
Enclosure material Thermoplastic UL94-V0
Degree of protection IP20 IP20 IP20 IP20 IP20
Operating state / fault indication green / red green / red green / red green / red green / red

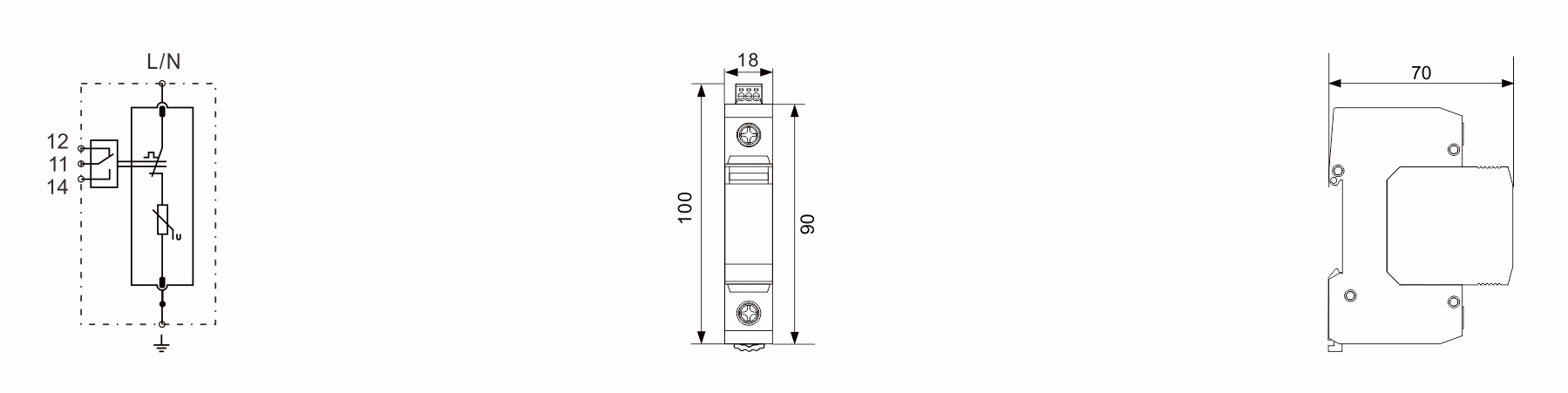

Product Dimensions Type 2 Surge Protection Device 40kA DIN Rail Lightning Arrester 5 Year Warranty Applications
  • Protects low-voltage consumer installations against indirect lightning discharges
  • Installation in LEMP zone: LPZ1 - LPZ2 as per IEC 62305
  • Provides protection to electrical/electronic equipment against overvoltage spikes and disturbances
  • Suitable for second stage protection in supply distribution panels with Type 1 protection upstream
  • First stage protection in commercial applications not exposed to direct strikes
Product Advantages
  • Patented casing design for enhanced durability
  • Advanced high-energy MOV technology
  • Window color indicates working condition at a glance
  • OEM & ODM services available
  • Custom production according to customer requirements
  • Plug-in module/base design for easy replacement without rewiring
Our Services
  • 22 years as manufacturer of electrical surge protection products
  • Comprehensive product testing prior to shipment
  • Standard and custom packaging options available
  • Fast delivery times
  • All products carefully packed before shipping
Installation Guidelines
  • Compact design for standard 35mm DIN rail installation
  • Replace cartridge immediately when fault indication window turns from green to red
  • After installation, verify protection unit is properly plugged in
  • Close automatic circuit breaker switch and check normal working status
Certifications Type 2 Surge Protection Device 40kA DIN Rail Lightning Arrester 5 Year Warranty Company Profile

Wenzhou Britec Electric Co., Ltd specializes in manufacturing surge protection devices. Our product range includes AC power surge protectors, DC surge protective devices, data lightning arresters, and LED lightning protection systems.

Our products are popular in China and exported to Europe, Southeast Asia, the Middle East, South America, and other countries. Britec focuses on technical innovation to meet customer needs and maintains strict quality assurance systems from raw material selection to final product inspection.

Type 2 Surge Protection Device 40kA DIN Rail Lightning Arrester 5 Year Warranty Delivery Information

Lead time depends on order quantity. Typically 30 days for production, with in-stock items shipped within 7 working days after payment. Shipping options include UPS, DHL, TNT, EMS, FedEx, or other preferred carriers.

Type 2 Surge Protection Device 40kA DIN Rail Lightning Arrester 5 Year Warranty Frequently Asked Questions

Q1. Can I have a sample order?

A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: In-stock items ship within 7 days. Mass production typically takes around 30 days.

Q3. What is your after-sales service?

A: We provide technical support and assistance with customer problem resolution.

Q4. How do you ship the goods and how long does it take to arrive?

A: We ship via TNT, DHL, UPS, FedEx or EMS, typically taking 7 days. Airline and sea shipping also available.

Q5. Is it OK to print my logo on your product?

A: Yes. Please inform us before production and confirm the design based on our sample.
