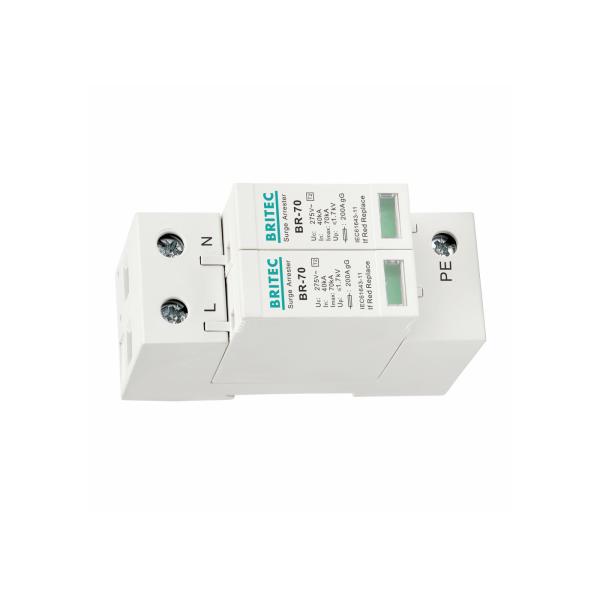

70kA Type 2 Surge Protection Device DIN Rail Mountable Surge Arrester IEC 61643-11 Compliant
70kA Type 2 Surge Protection Device DIN Rail Mountable Surge Arrester IEC 61643-11 Compliant
70kA Type 2 Surge Protection Device DIN Rail Mountable Surge Arrester IEC 61643-11 Compliant
70kA Type 2 Surge Protection Device DIN Rail Mountable Surge Arrester IEC 61643-11 Compliant
Specifications
Imax :
70kA
In :
40kA
Keyword :
lightning protection
Mounting :
35mm DIN Rail
Item :
Surge protection device
Standard :
IEC 61643-11 EN 61643-11
Up :
1.0kV to 2.3kV
Degree of Protection :
IP20
Class :
Type 2
Response Time :
≤25ns
Uc :
150V 275V 320V 385V
Operating Temperature :
-40℃ to 80℃
Brand Name :
BRITEC
Model Number :
BR-70 2P
Certification :
CE
Place of Origin :
China
MOQ :
100 piece / pieces
Payment Terms :
T/T
Supply Ability :
100000 pieces per month
Delivery Time :
15-30 days after payment
Packaging Details :
EXPORT PACKING
Material :
Thermoplastic UL94-V0
Description
AC Type 2 Surge Protection Device 70kA DIN Rail Mountable Surge Arrester
Product Features
  • Class II, Type 2, 70kA 2P
  • Discharge currents: In: 40 kA / Imax: 70 kA
  • IEC 61643-11 and EN 61643-11 compliance
  • DIN rail compatible with plug-in module and fixed base
  • Protects against direct and indirect lightning strikes and large switching transients
  • Ideal for areas with limited space
  • Version with remote signaling for disconnection indication available
Technical Specifications
Specification BR-70 150 2P BR-70 275 2P BR-70 320 2P BR-70 385 2P
SPD classification (EN61643-11)Type 2Type 2Type 2Type 2
SPD classification (IEC61643-11)Class IIClass IIClass IIClass II
Max. continuous operating voltage Uc150V275V320V385V
Nominal discharge current In40kA40kA40kA40kA
Max. discharge current Imax70kA70kA70kA70kA
Voltage protection level Up≤1.0kV≤1.7kV≤2.0kV≤2.3kV
Voltage protection level 5kA Up≤0.5kV≤0.9kV≤1.1kV≤1.3kV
Max. backup fuse200A gG200A gG200A gG200A gG
Response time tA≤25ns≤25ns≤25ns≤25ns
Operating temperature range-40℃-80℃-40℃-80℃-40℃-80℃-40℃-80℃
Operating state / fault indicationgreen / redgreen / redgreen / redgreen / red
Cross-section area (Min.)4mm²4mm²4mm²4mm²
Cross-section area (Max.)35mm²35mm²35mm²35mm²
For mounting on35mm Din rail
Enclosure materialThermoplastic UL94-V0
Degree of protectionIP20IP20IP20IP20
Order CodeB8276B8278B8280B8282
Order Code (With remote signaling)B8277B8279B8281B8283
Product Dimensions
70kA Type 2 Surge Protection Device DIN Rail Mountable Surge Arrester IEC 61643-11 Compliant
Applications
  • High lightning density areas
  • Protection for electrical/electronic equipment against overvoltage spikes and disturbances
  • Telecom installations, oil rigs, and open exposed areas with metal structures
  • Buildings and sites at high risk (schools, hospitals, etc.) with Lightning Protection Systems
Product Advantages
  • Plug-in module for easy and fast maintenance
  • Low leakage current to ground
  • No follow current and low residual clamp voltage
  • Visual fault indicator and protection redundancy
Our Services
  • 22 years global leading professional manufacturer of electrical surge arresters
  • All products well packed before shipping
  • Standard packaging with custom options available
  • Faster delivery
  • Individually tested prior to shipment
Certifications
70kA Type 2 Surge Protection Device DIN Rail Mountable Surge Arrester IEC 61643-11 Compliant
Company Information

Our company has been manufacturing and exporting surge protectors for over 22 years, offering quality products at competitive prices with CE certification. OEM services are welcome. We are committed to providing the best service to each customer.

70kA Type 2 Surge Protection Device DIN Rail Mountable Surge Arrester IEC 61643-11 Compliant
Installation Requirements

• Installed near the power feed to ensure required lightning current equipotential bonding between lightning protection facility and power distribution system.

• All surge arresters must be installed by a qualified electrician.
