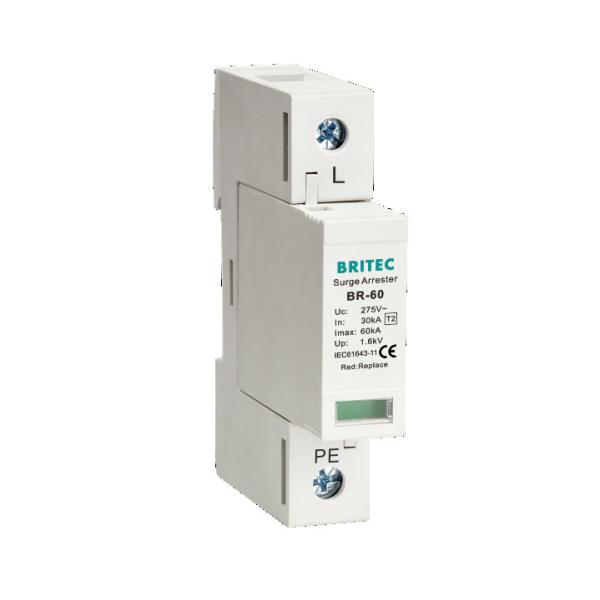

BR-60 3P Surge Protection Device Lightning Arrester Spd Type2 Surge Protective Device Suppliers
BR-60 3P Surge Protection Device Lightning Arrester Spd Type2 Surge Protective Device Suppliers
BR-60 3P Surge Protection Device Lightning Arrester Spd Type2 Surge Protective Device Suppliers
BR-60 3P Surge Protection Device Lightning Arrester Spd Type2 Surge Protective Device Suppliers
BR-60 3P Surge Protection Device Lightning Arrester Spd Type2 Surge Protective Device Suppliers
BR-60 3P Surge Protection Device Lightning Arrester Spd Type2 Surge Protective Device Suppliers
BR-60 3P Surge Protection Device Lightning Arrester Spd Type2 Surge Protective Device Suppliers
BR-60 3P Surge Protection Device Lightning Arrester Spd Type2 Surge Protective Device Suppliers
BR-60 3P Surge Protection Device Lightning Arrester Spd Type2 Surge Protective Device Suppliers
BR-60 3P Surge Protection Device Lightning Arrester Spd Type2 Surge Protective Device Suppliers
BR-60 3P Surge Protection Device Lightning Arrester Spd Type2 Surge Protective Device Suppliers
BR-60 3P Surge Protection Device Lightning Arrester Spd Type2 Surge Protective Device Suppliers
Specifications
Model Numbers :
BR-60 3P
MOQ :
20PCS
Packing :
Carton
Color :
white
Current wave :
8/20 µs
Relative humidity :
≤95％
Brand Name :
BRITEC
Model Number :
BR-60 3P
Certification :
TUV/CB/CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
20 Piece/Pieces
Payment Terms :
L/C,D/A,T/T,Western Union
Supply Ability :
50000 Piece/Pieces Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
EXPORT PACKING
EN type :
Type2
Shipping term :
TNT DHL FEDEX EMS UPS
Item Name :
BR-60 3P
Keyword :
lightning protection
Description

275V surge voltage protector tvss spd Type 2 surge arrester


Among other characteristics that differentiate overvoltage protection devices is their rated surge capacity and the achievable level of protection.

  • Type 1 lightning arrester: Protects against overvoltage and high currents triggered by direct or indirect lightning strikes
  • Type 2 surge arrester: Protects against overvoltage triggered by electrical switching operations
  • Type 3 surge arrester: Protects electrical loads (consumers) against overvoltage


Type 2 surge arrester Technology characteristic:


Type 2 surge arrester Dimension:



Specification
TY-20 275 3P
TY-40 275 3P
TY-60 275 3P
Item name
Surge Arrester
Surge Arrester
Surge Arrester
SPD dassification according to EN61643-11
Type 2
Type 2
Type 2
SPD dassification according to IEC61643-11
Class II
Class II
Class II
Max continuous 0perating a.c. voltage Uc
275V
275V
275V
Norminal discharge current (8/20µs) In
10kA
20kA
30kA
Max. discharge current (8/20μs) Imax
20kA
40kA
60kA
Voltage protection level Up
≤1.3kV
≤1.3kV
≤1.6kV
Width of one pole
18mm
18mm
18mm
Remote contacts
Available
Available
Available
For mounting on
35mm Din rail
35mm Din rail
35mm Din rail
Degree of protection
IP20
IP20
IP20
Enclosure material
Thermoplastic UL94-V0
Thermoplastic UL94-V0
Thermoplastic UL94-V0
Certificate
CE/ROHS/ISO9001 approved standard
CE/ROHS/ISO9001 approved standard
CE/ROHS/ISO9001 approved standard


Other type for choose:
1,Maximum discharge current:10KA,20KA,40KA,65KA,80KA,100KA,120KA
2,Number of poles:1P,1P+N ,2P,3P,3P+N, 4P
3,Maximum continuous operating voltage: 275V,320V,385V ,440V,550V


Type 2 surge arrester Application:

Application from 1 to 4 poles

Protection against surge and overvoltage spikes

Good protection level

High discharge capacity



Type 2 surge arrester Certificate:

CB, CE, TUV,RoHS Certificate:



Company information:

Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. Our company specialized in research and development of surge protection devices.The series of surge protection device Type 1 and Type 2 and Type 3, BR PV and SPDs for Data offer the market with a new choice of high quality surge arresters. We have 18 years of experience in the research & development and production of the surge protection field and provide 5 years warranty.
.


Production line:



Laboratory equipment:




Shipping:


FAQ:

Q: Are you trading company or manufacturer?

A: We are professional manufacturer specialized in orthopedic and sport products. And we trade our products with our clients directly.


Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.


Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request.


Q: What’s your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.


Q: Which payment form you can accept?
A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
