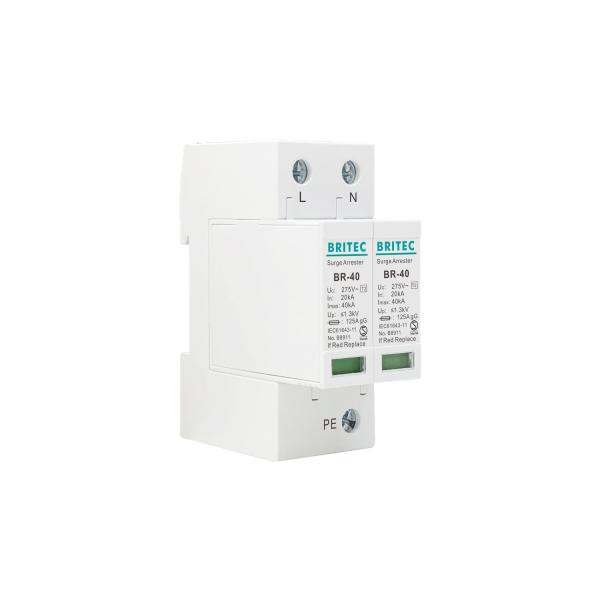

Type 2 Class II Surge Protection Device with 40kA Max Discharge Current and DIN Rail Mounting
Type 2 Class II Surge Protection Device with 40kA Max Discharge Current and DIN Rail Mounting
Type 2 Class II Surge Protection Device with 40kA Max Discharge Current and DIN Rail Mounting
Type 2 Class II Surge Protection Device with 40kA Max Discharge Current and DIN Rail Mounting
Specifications
Brand Name :
BRITEC
Model Number :
BR-40 2P
Certification :
CE/TUV/CB/S
Place of Origin :
China
MOQ :
100 piece / pieces
Payment Terms :
T/T
Supply Ability :
100000 pieces per month
Delivery Time :
15-30 days after payment
Packaging Details :
EXPORT PACKING
Uc :
150V / 275V / 320V / 385V / 440V
Material :
Thermoplastic UL94-V0
Class :
Type 2
Mounting on :
35mm Din rail
tA :
≤25ns
Tu :
-40℃...+80℃
Keyword :
lightning protection
In :
20kA
Test standards :
IEC 61643-11 / EN61643-11
Protection level :
IP20
Imax :
40kA
Description
Lightning Arrester Class II Imax 40kA 2P 20-40kA DIN Rail Surge Protection Over Voltage SPD
Product Features
  • Model: BR-40 2P
  • Reaction time of less than 25 ns
  • Green indicator flag in inspection window shows operating state
  • Remote monitoring switch signal capability
  • Continuous operating voltage: 150 / 275 / 320 / 385 / 440 V
  • IEC61643-11:2012 confirmed
  • Suitable for TN-S systems
Technical Specifications
Parameter BR-40 150 2P BR-40 275 2P BR-40 320 2P BR-40 385 2P BR-40 440 2P
SPD classification (EN61643-11)Type 2Type 2Type 2Type 2Type 2
SPD classification (IEC61643-11)Class IIClass IIClass IIClass IIClass II
Max. continuous operating voltage Uc150V275V320V385V440V
Nominal discharge current In (8/20μs)20kA20kA20kA20kA20kA
Max. discharge current Imax (8/20μs)40kA40kA40kA40kA40kA
Voltage protection level Up≤0.8kV≤1.3kV≤1.5kV≤1.8kV≤2.0kV
Voltage protection level Up (5kA)≤0.6kV≤1kV≤1.2kV≤1.4kV≤1.6kV
Max. backup fuse125A gG125A gG125A gG125A gG125A gG
Response time tA≤25ns≤25ns≤25ns≤25ns≤25ns
Operating temperature range-40℃-80℃-40℃-80℃-40℃-80℃-40℃-80℃-40℃-80℃
Operating state / fault indicationgreen / redgreen / redgreen / redgreen / redgreen / red
Cross-section area (Min.)4mm²4mm²4mm²4mm²4mm²
Cross-section area (Max.)35mm²35mm²35mm²35mm²35mm²
For mounting on35mm Din rail
Enclosure materialThermoplastic UL94-V0
Degree of protectionIP20IP20IP20IP20IP20
Order CodeB8201B8203B8205B8207B8209
Order Code (With remote signaling)B8202B8204B8206B8208B8210
Dimensions
Type 2 Class II Surge Protection Device with 40kA Max Discharge Current and DIN Rail Mounting
Applications
  • Discharge overvoltage from switch-type (8/20µs) over currents
  • Protect electrical systems and on-loading electrical apparatus from thunder and instantaneous over-voltage
  • Protection of electrical installations and connected devices against destructive overvoltage surges
  • Protection against indirect and direct lightning effects or other instant overvoltage surges
  • Suitable for surge protection in residential, tertiary and industrial applications
Product Advantages
  • High quality materials ensuring long service life
  • Easy installation process
  • Stable performance protecting equipment power systems from lightning damage
  • DIN rail mounting with pluggable modules for convenient replacement
Our Services
  • 22 years as global leading professional manufacturer of electrical products and surge arresters
  • All products well packed before shipping
  • Standard packaging with custom packaging options available
  • Faster delivery times
  • Individually tested prior to shipment
Company Profile

We are a professional manufacturer of surge protection devices.

Type 2 Class II Surge Protection Device with 40kA Max Discharge Current and DIN Rail Mounting
Shipping
Type 2 Class II Surge Protection Device with 40kA Max Discharge Current and DIN Rail Mounting
Installation Guidelines
  • Compact protectors designed for installation on DIN rail
  • Green tab indicates normal work status, red tab indicates failure status requiring replacement
  • Installation must be performed only by electrically skilled operators
  • For outdoor locations exposed to elements, mount protector inside suitable weatherproof enclosure
