4 Tank Automatic Feeding Ultrasonic Cleaning Line Automatic Ultrasonic Cleaner With Reciprocating Air Knife Drying
4 Tank Automatic Feeding Ultrasonic Cleaning Line Automatic Ultrasonic Cleaner With Reciprocating Air Knife Drying
4 Tank Automatic Feeding Ultrasonic Cleaning Line Automatic Ultrasonic Cleaner With Reciprocating Air Knife Drying
4 Tank Automatic Feeding Ultrasonic Cleaning Line Automatic Ultrasonic Cleaner With Reciprocating Air Knife Drying
4 Tank Automatic Feeding Ultrasonic Cleaning Line Automatic Ultrasonic Cleaner With Reciprocating Air Knife Drying
4 Tank Automatic Feeding Ultrasonic Cleaning Line Automatic Ultrasonic Cleaner With Reciprocating Air Knife Drying
Specifications
Brand Name :
Hongshun
Model Number :
HS-4500AUC
Certification :
CCC/CE
Place of Origin :
Guangdong
MOQ :
1 set
Price :
$7,000 to $15,000
Payment Terms :
L/C,T/T
Supply Ability :
5 sets/month
Delivery Time :
25 days
Packaging Details :
film
Applications :
degreasing
Tank :
4 tanks
Compressed air supply requirements :
5kg pressure 10L/min
Power supply :
380±10%/50HZ
Ultrasonic frequency :
28-40 KHZ
Description

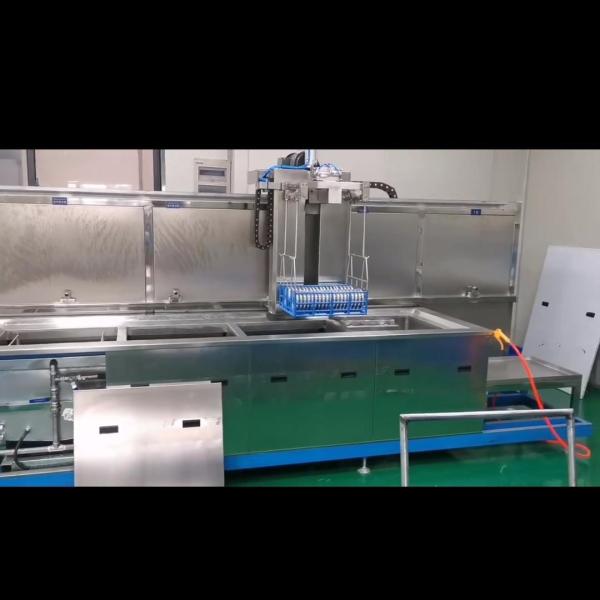

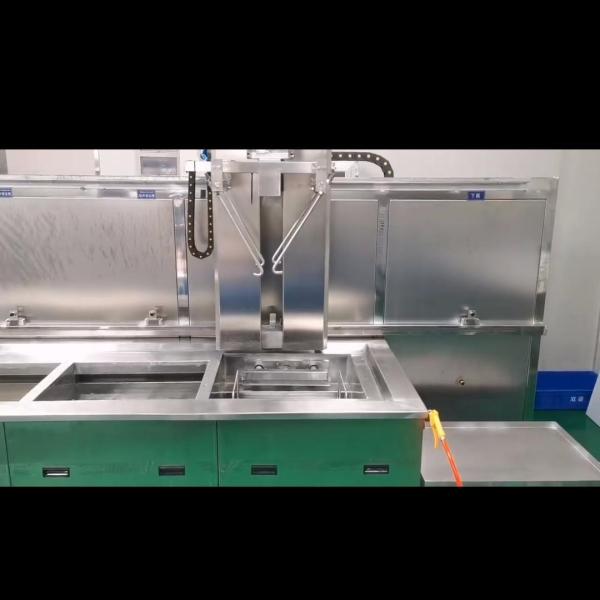

4-tank Automatic Feeding Ultrasonic Cleaning Line Equiped With Reciprocating Air Knife Drying

Ultrasonic Cleaning Line Overview:

The 4-tank Automatic Feeding Ultrasonic Cleaning Line, equipped with reciprocating air knife drying, delivers industrial-grade precision for complex part cleaning. Its four-tank system enables multi-stage cleaning—from pre-rinse to ultrasonic degreasing and final rinsing—ensuring thorough removal of oils, debris, and contaminants from metal, plastic, or ceramic components.
Automated feeding streamlines workflow, reducing manual handling and ensuring consistent processing across batches. The reciprocating air knife drying system uses high-velocity filtered air to eliminate moisture evenly, preventing water spots on sensitive parts.
Ideal for automotive, electronics, and aerospace industries, this line balances efficiency with precision, handling various part sizes while minimizing chemical and energy use. Reliable, scalable, and easy to integrate, it’s a powerful solution for manufacturers aiming to boost cleaning quality and production throughput.



Cleaning process flow:
Process flow: feeding in → ultrasonic cleaning by washing agent → ultrasonic cleaning by municipal water → pure water rinsing → municipal water rinsing → Reciprocating Air Knife Drying → unloading

Main technical parameters of the 4-tank Automatic Feeding Ultrasonic Cleaning Line:

Total ultrasonic power

4.5KW (a total of 4 ultrasonic tanks, each 1.5KW)

Ultrasonic frequency

28KHz.

Maximum total power of the equipment

12KW.

Power supply

380VAC, 3p5w,50HZ.

Machine size

(length x width x height) approximately according to the drawing or physical object

For a complete technical solution Of 4-tank Automatic Feeding Ultrasonic Cleaning Line, please contact me. We will customize the design based on your product technical requirements and factory layout.


Our typical customers:
4 Tank Automatic Feeding Ultrasonic Cleaning Line Automatic Ultrasonic Cleaner With Reciprocating Air Knife Drying 4 Tank Automatic Feeding Ultrasonic Cleaning Line Automatic Ultrasonic Cleaner With Reciprocating Air Knife Drying


About Us:
We provide solid services to every enterprise with a demand for surface treatment equipment. Our strong core software development team and overall design team for electronic circuits and mechanical appearance can ensure that our equipment remains in a leading competitive position in the industry and meets the usage requirements of a wide range of customers. Our experienced customer service team Professional technology and services can provide you with all-round 24-hour technical consultation and services before, during and after sales, so that you have no worries at all.
