Semi Auto 6 Tanks Ultrasonic Cleaning Line 20kHz Automatic Ultrasonic Cleaner With Large Baskets Drying
Semi Auto 6 Tanks Ultrasonic Cleaning Line 20kHz Automatic Ultrasonic Cleaner With Large Baskets Drying
Specifications
Brand Name :
Hongshun
Model Number :
HS-6090SW
Certification :
CCC/CE
Place of Origin :
Guangdong
MOQ :
1 set
Price :
$2,000 to $4,000
Payment Terms :
L/C,T/T
Supply Ability :
5 sets/month
Delivery Time :
20 days
Packaging Details :
film
Applications :
Castings
Total ultrasonic power :
7.5KW
Equipment capacity :
3-5 minutes / basket
Power supply :
380±10%/50HZ
Heating temperature :
75℃
Ultrasonic frequency :
35KHZ
Description

Industrial Semi Auto Multi Tank Ultrasonic Cleaning Line 6 Tanks 20kHz for Castings with Large Baskets Drying

Ultrasonic Cleaning Line Overview:

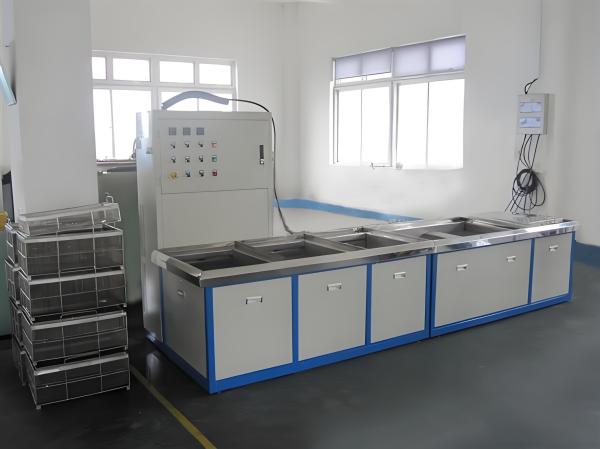

6-tank system (prewash/ultrasound/rise1/rise2/rise3/dry) handles large castings. 20kHz waves and 75℃ heating remove foundry residues. Large baskets fit manifolds, manual transfer, drying tank with strong airflow. Used in foundries, preparing castings for painting.

Main equipment configuration:

Basic principle and characteristics of ultrasonic

The 20KHZ ultrasonic signal generated by the ultrasonic generator is converted into mechanical vibrations of the same frequency through the piezoelectric effect of the transducer, and these vibrations are radiated as ultrasonic mechanical waves in the cleaning solution. The alternating positive and negative pressure zones created by these mechanical waves generate countless tiny bubbles, each exceeding 1000 atmospheres of pressure. These bubbles burst at any moment, creating a fine, localized high-pressure impact on the surface of the object, which rapidly removes dirt from the surface and in the crevices. This phenomenon is known as the 'cavitation effect' in ultrasonic cleaning.

Main technical parameters of the Ultrasonic Cleaning Line:

Total ultrasonic power

6KW (a total of 3 ultrasonic tanks, each 1.5KW)

Ultrasonic frequency

35KHz.

Maximum total power of the equipment

9 KW.

Power supply

380VAC, 3p5w,50HZ.

Machine size

(length x width x height) approximately according to the drawing or physical object

For a complete technical solution Of Ultrasonic Cleaning Line, please contact me. We will customize the design based on your product technical requirements and factory layout.

Our typical customers:

Semi Auto 6 Tanks Ultrasonic Cleaning Line 20kHz Automatic Ultrasonic Cleaner With Large Baskets Drying Semi Auto 6 Tanks Ultrasonic Cleaning Line 20kHz Automatic Ultrasonic Cleaner With Large Baskets Drying

About Us:

Dongguan Hongshun Automation Equipment Co., Ltd. is located in Dongguan City, the global manufacturing capital. It is a professional manufacturer of high-precision surface treatment equipment. Its main products include: We offer a full range of ultrasonic cleaning equipment, vacuum hydrocarbon cleaning machines, high-pressure spray cleaning machines, spraying lines, passivation acid washing equipment, anodizing equipment, electroplating equipment, industrial pure water machines, reclaimed water reuse equipment, tunnel drying furnaces and their peripheral supporting equipment and consumables, etc. We provide turnkey surface treatment projects for our customers. The company integrates independent research and development, production and manufacturing, installation and training, and after-sales service. It also has a complete quality management system and strong technical strength.
