Single Arm Automatic Ultrasonic Cleaning Machine Powerful With Up And Down Oscillation
Single Arm Automatic Ultrasonic Cleaning Machine Powerful With Up And Down Oscillation
Single Arm Automatic Ultrasonic Cleaning Machine Powerful With Up And Down Oscillation
Single Arm Automatic Ultrasonic Cleaning Machine Powerful With Up And Down Oscillation
Single Arm Automatic Ultrasonic Cleaning Machine Powerful With Up And Down Oscillation
Single Arm Automatic Ultrasonic Cleaning Machine Powerful With Up And Down Oscillation
Specifications
Brand Name :
Hongshun
Model Number :
HS-5500AUC
Certification :
CCC/CE
Place of Origin :
Guangdong
MOQ :
1 set
Price :
$7,000 to $15,000
Payment Terms :
L/C,T/T
Supply Ability :
5 sets/month
Delivery Time :
25 days
Packaging Details :
film
Applications :
precision engineering industries
Tank :
5 tanks
Compressed air supply requirements :
5kg pressure 10L/min
Power supply :
380±10%/50HZ
Ultrasonic frequency :
28-40 KHZ
Description

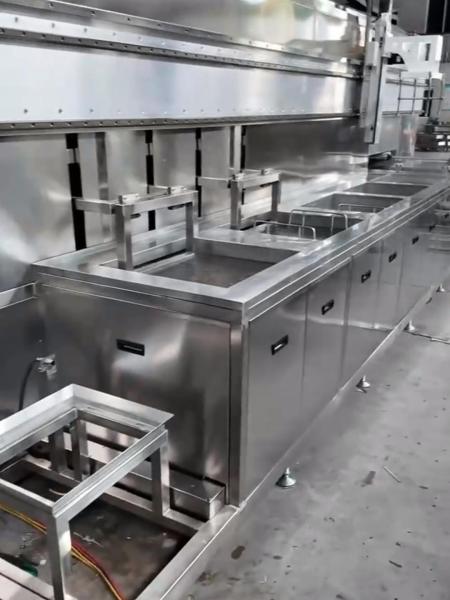

Single-arm Automatic Ultrasonic Cleaning Machine With Up-and-down Oscillation

Automatic Ultrasonic Cleaning Machine Overview:

The Single-arm Automatic Ultrasonic Cleaning Machine with Up-and-down Oscillation is engineered for precise, automated cleaning of small to medium-sized industrial components. Its single-arm robotic system enables seamless loading and unloading, reducing manual intervention and ensuring consistent processing across batches.
Powered by high-frequency ultrasonic technology, it generates intense cavitation to dislodge oils, debris, and contaminants from intricate part surfaces and crevices. The unique up-and-down oscillation feature enhances cleaning efficiency by agitating the solution, ensuring thorough coverage even on complex geometries.
Ideal for electronics, automotive, and precision engineering industries, this machine balances compact design with powerful performance. It minimizes chemical usage, reduces labor costs, and integrates easily into production lines, delivering spotless, residue-free parts to boost manufacturing quality and workflow efficiency. A reliable choice for automated precision cleaning needs.

Cleaning process flow for reference:

Process flow: feeding in → ultrasonic cleaning by washing agent → ultrasonic cleaning by municipal water → pure water rinsing → municipal water rinsing → Reciprocating Air Knife Drying → unloading

Main technical parameters of the Automatic Ultrasonic Cleaning Machine:

Total ultrasonic power

6 KW (a total of 4 ultrasonic tanks, each 1.5KW)

Ultrasonic frequency

28KHz.

Maximum total power of the equipment

15 KW.

Power supply

380VAC, 3p5w,50HZ.

Machine size

(length x width x height) approximately according to the drawing or physical object

For a complete technical solution Of Automatic Ultrasonic Cleaning Machine, please contact me. We will customize the design based on your product technical requirements and factory layout.
