Specifications
Brand Name :
Hongshun
Model Number :
HS-2100-OA
Certification :
CCC/CE
Place of Origin :
Dongguan
MOQ :
1 set
Price :
$200,000 to $5000,000
Payment Terms :
L/C,T/T
Supply Ability :
5 sets/month
Delivery Time :
75 days
Packaging Details :
film
Applications :
Decorative Items
Oxide Layer Thickness :
5–20 microns,
Relative humidity :
less than or equal to 90%
Water pressure :
0.3Mpa
Main power supply :
380±10%/50HZ
Description

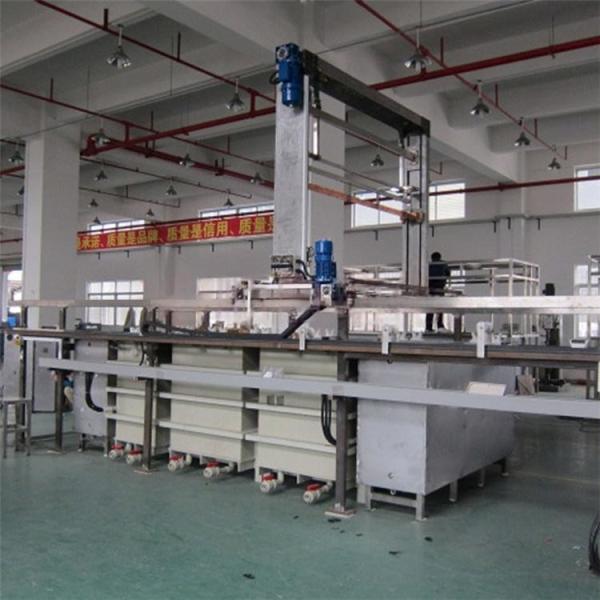

Automated Oxalic Acid Anodizing Line For Decorative Items

Automated Oxalic Acid Anodizing Line Overview:

  • Process: Oxalic acid electrolyte under medium voltage (40–60V).
  • Characteristics:
    • Oxide Layer Thickness: 5–20 microns, with a distinct “wood grain” texture.
    • Surface Finish: Natural bronze to black; no dyeing needed.
    • Corrosion Resistance: Better than sulfuric acid anodizing.
    • Applications: Decorative items (furniture, lighting), architectural elements.
  • Advantages: Unique aesthetic appeal; suitable for outdoor use without dye.

Partial parameter description of Automated Oxalic Acid Anodizing Line:

Basic composition of equipment

1. Surface treatment tank (functional tank)

2. Body frame

3. Gantry single-arm crane

4. Intelligent electric control system

5. Heating and cooling system

6. Air stirring system

7. Recirculation filtration system

8. Oxidation rectifier power supply

9. Water supply and drainage piping system

10. Exhaust ventilation treatment system

11. Target

12. Loading and unloading device

Material list for Automated Oxalic Acid Anodizing Line:

device name

Ingredients specifications

place of production

brand

remarks

gangway

The main structure is made of A3 square tube and angle timber, and the structure is in the form of a landing.

domestic

Pedal 15mm fiberglass shed grid strong grid plate

Guangzhou

Guangzhou glass steel plant

filtering machine

Type: Precision single barrel filter magnetic suction filter machine material PP and SS cylinder

Dongguan

national treasure

Taiwan

pipe system

All pipe fittings are configured with standard products

All the water stop valves are double actuated PVC ball valves

Guangzhou

South Asia Taiwan

South Asia Plastics (Guangzhou) Co., LTD

commutator

Type: three-phase oil-cooled SCR control rectifier type

Output voltage: 0-25V (volt)

Output current: 3000A

Guangzhou

Jewel

Guangzhou

Exhaust air pipe

Main air pipe: 6MM PP plate is used, and the pipe diameter is Φ500mm

Suction hood: PP board is used, 8mm thick washing tower plate is 10mm thick

Hebei

Lida

Stainless steel tank

Material: SS304/3mm thick bending chamfer welding

Foshan

Tricyclic

Plastic tank

Material: PP15mm welding manufacturing

Taiwan

Lida

enter port

Whole machine rack

All the racks are made of A3 square tube, and the leading rail is made of stainless steel flat steel

Foshan

Respect to Yuan Hengyu

Portal crane

The body is made of SS steel plate, bent and welded

Foshan

Tricyclic

Italian worm gear electromagnetic brake motor is adopted

Italy

Simic

enter port

Electronic control system

The intermediate relay of Omron PLC series is selected in Japan

Shanghai

OMRON

Japan

AC contactor

Shanghai

Schneider

Germany

frequency transformer

Shanghai

Mitsubishi

Japan

Kunlun Tongtai touch screen

Beijing

Kunlun is in a state of flux

China

thermostat

Digital display temperature control and sensor

Shanghai

OMRON

Japan

cooling-water machine

The compressor is American Taikang compressor or French Myoyle

Guangdong

Dian Electric

For a complete technical solution of Automated Oxalic Acid Anodizing Line, please contact me. We will customize the design based on your product technical requirements and factory layout.

Our typical customers:

Oxalic Acid Automated Anodizing Line Customised Hard Anodizing Equipment Oxalic Acid Automated Anodizing Line Customised Hard Anodizing EquipmentOxalic Acid Automated Anodizing Line Customised Hard Anodizing Equipment

About us:

Our equipment is widely used in various industries such as new energy, die-casting, auto parts, electronic circuit boards, bearing parts, optical lenses, vacuum ion plating parts, hardware electroplating, degreasing and waxing parts, powder metallurgy, medical devices, liquid crystal displays, aviation equipment, etc. The company's products not only serve customers all over China, but are also exported to countries such as Thailand, South Korea, Vietnam, the Philippines, Cambodia, Indonesia, Russia and Italy.
