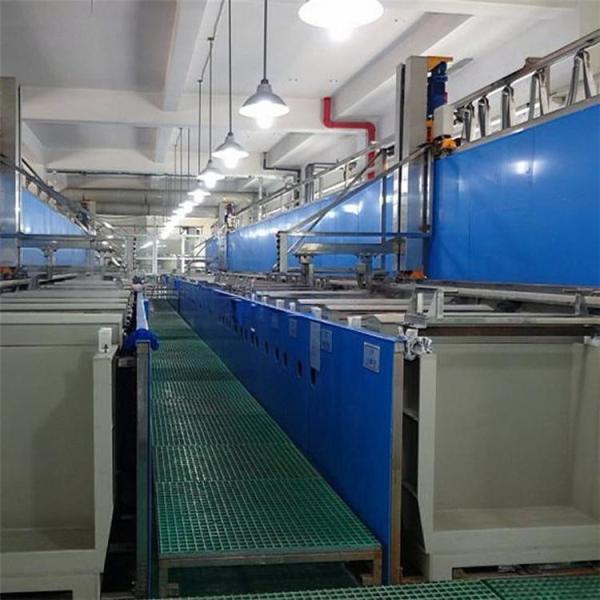

Electronics Automated Anodizing Line Architectural Extrusions Sulfuric Acid Anodizing Line
Electronics Automated Anodizing Line Architectural Extrusions Sulfuric Acid Anodizing Line
Specifications
Brand Name :
Hongshun
Model Number :
HS-2100-Type II
Certification :
CCC/CE
Place of Origin :
Dongguan
MOQ :
1 set
Price :
$300,000 to $5000,000
Payment Terms :
L/C,T/T
Supply Ability :
5 sets/month
Delivery Time :
75 days
Packaging Details :
film
Applications :
Electronics (phone casings), architectural extrusions, bicycle parts
Oxide Layer Thickness :
5–25 microns
Environmental temperature :
0℃~45℃ is most suitable
Relative humidity :
less than or equal to 90%
Water pressure :
0.3Mpa
Main power supply :
380±10%/50HZ
Description

Sulfuric Acid Anodizing Line (Type II Anodizing) For Electronics (phone casings), architectural extrusions, bicycle parts

Sulfuric Acid Anodizing Line Overview:

Process: Aluminum is immersed in a sulfuric acid electrolyte under low voltage (12–24V).

Characteristics:

Oxide Layer Thickness: 5–25 microns, suitable for most commercial applications.

Surface Finish: Transparent, allowing metal’s natural texture to show; can be dyed in various colors.

Corrosion Resistance: Good, but less than hard anodizing.

Applications: Electronics (phone casings), architectural extrusions, bicycle parts.

Advantages: Cost-effective, widely used, and compatible with dyeing.

Material list for Sulfuric Acid Anodizing Line equipment:

device name

Ingredients specifications

place of production

brand

remarks

gangway

The main structure is made of A3 square tube and angle timber, and the structure is in the form of a landing.

domestic

Pedal 15mm fiberglass shed grid strong grid plate

Guangzhou

Guangzhou glass steel plant

filtering machine

Type: Precision single barrel filter magnetic suction filter machine material PP and SS cylinder

Dongguan

national treasure

Taiwan

pipe system

All pipe fittings are configured with standard products

All the water stop valves are double actuated PVC ball valves

Guangzhou

South Asia Taiwan

South Asia Plastics (Guangzhou) Co., LTD

commutator

Type: three-phase oil-cooled SCR control rectifier type

Output voltage: 0-25V (volt)

Output current: 3000A

Guangzhou

Jewel

Guangzhou

Exhaust air pipe

Main air pipe: 6MM PP plate is used, and the pipe diameter is Φ500mm

Suction hood: PP board is used, 8mm thick washing tower plate is 10mm thick

Hebei

Lida

Stainless steel tank

Material: SS304/3mm thick bending chamfer welding

Foshan

Tricyclic

Plastic tank

Material: PP15mm welding manufacturing

Taiwan

Lida

enter port

Whole machine rack

All the racks are made of A3 square tube, and the leading rail is made of stainless steel flat steel

Foshan

Respect to Yuan Hengyu

Portal crane

The body is made of SS steel plate, bent and welded

Foshan

Tricyclic

Italian worm gear electromagnetic brake motor is adopted

Italy

Simic

enter port

Electronic control system

The intermediate relay of Omron PLC series is selected in Japan

Shanghai

OMRON

Japan

AC contactor

Shanghai

Schneider

Germany

frequency transformer

Shanghai

Mitsubishi

Japan

Kunlun Tongtai touch screen

Beijing

Kunlun is in a state of flux

China

thermostat

Digital display temperature control and sensor

Shanghai

OMRON

Japan

cooling-water machine

The compressor is American Taikang compressor or French Myoyle

Guangdong

Dian Electric

For a complete technical solution of Sulfuric Acid Anodizing Line, please contact me. We will customize the design based on your product technical requirements and factory layout.

Our typical customers:

Electronics Automated Anodizing Line Architectural Extrusions Sulfuric Acid Anodizing Line Electronics Automated Anodizing Line Architectural Extrusions Sulfuric Acid Anodizing LineElectronics Automated Anodizing Line Architectural Extrusions Sulfuric Acid Anodizing Line

After-sales technical services of Sulfuric Acid Anodizing Line:

1. After the equipment is delivered and put into use, will provide technical support and service for 12 months free of charge (except consumables), and the manufacturer will be responsible for free maintenance of parts damaged by non-human operation errors. After the expiration of the warranty period,will continue to provide lifetime paid technical support.

2. Provide Chinese and English documents for equipment installation, operation and maintenance to facilitate follow-up support for operator training.

3. Provide mechanical and electronic parts for one year.

4. Provide a copy of the warranty stating the effective date of the warranty, the coverage and the seller's contact person.

5. Engineers will monitor the equipment on site within 6 months after delivery and operation.
