Chromium Acid Aluminium Anodizing Machine Anodizing Oxidation For Special Industry
Chromium Acid Aluminium Anodizing Machine Anodizing Oxidation For Special Industry
Chromium Acid Aluminium Anodizing Machine Anodizing Oxidation For Special Industry
Chromium Acid Aluminium Anodizing Machine Anodizing Oxidation For Special Industry
Specifications
Brand Name :
Hongshun
Model Number :
HS-5600-OP
Certification :
CCC/CE
Place of Origin :
Dongguan
MOQ :
1 set
Price :
$350,000 to $500,000
Payment Terms :
L/C,T/T
Supply Ability :
5 sets/month
Delivery Time :
75 days
Packaging Details :
film
Applications :
Special Industry
Relative humidity :
less than or equal to 90%
Water pressure :
0.3Mpa
Main power supply :
380±10%/50HZ
Electronic control system :
Omron PLC
oxide layer :
5–25μm
Description

Chromium Acid Anodizing Oxidation Production Line For Special Industry, The Yellow Conductive Oxidation Process

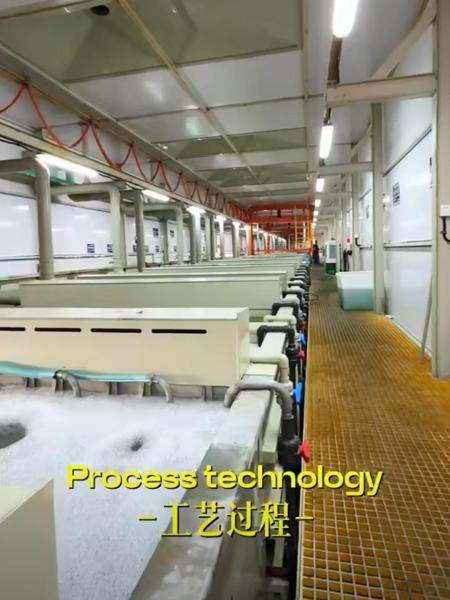

Anodizing Oxidation Production Line Overview:

The Chromium Acid Anodizing Oxidation Production Line, tailored for the Special industry with a specialized yellow conductive oxidation process, delivers superior surface treatment for Special-grade components. This high-performance line creates a durable yellow oxide film through precise chromium acid anodizing, ensuring exceptional corrosion resistance, wear protection, and reliable electrical conductivity—critical for Special equipment operating in harsh environments.
Engineered to meet strict Special standards, it guarantees consistent film adhesion, thickness, and performance across complex part geometries. The automated workflow includes rigorous pre-treatment and controlled oxidation stages, minimizing variability and ensuring compliance with defense specifications.
Ideal for Special aerospace, weaponry, and electronic components, the yellow conductive finish enhances both functionality and identification. Combining Special-grade durability with conductive performance, this production line is a trusted solution for defense manufacturers prioritizing reliability, compliance, and long-term operational excellence.



Material list for Anodizing Oxidation Production Line:

device name

Ingredients specifications

place of production

brand

remarks

gangway

The main structure is made of A3 square tube and angle timber, and the structure is in the form of a landing.

domestic

Pedal 15mm fiberglass shed grid strong grid plate

Guangzhou

Guangzhou glass steel plant

filtering machine

Type: Precision single barrel filter magnetic suction filter machine material PP and SS cylinder

Dongguan

national treasure

Taiwan

pipe system

All pipe fittings are configured with standard products

All the water stop valves are double actuated PVC ball valves

Guangzhou

South Asia Taiwan

South Asia Plastics (Guangzhou) Co., LTD

commutator

Type: three-phase oil-cooled SCR control rectifier type

Output voltage: 0-25V (volt)

Output current: 3000A

Guangzhou

Jewel

Guangzhou

Exhaust air pipe

Main air pipe: 6MM PP plate is used, and the pipe diameter is Φ500mm

Suction hood: PP board is used, 8mm thick washing tower plate is 10mm thick

Hebei

Lida

Stainless steel tank

Material: SS304/3mm thick bending chamfer welding

Foshan

Tricyclic

Plastic tank

Material: PP15mm welding manufacturing

Taiwan

Lida

enter port

Whole machine rack

All the racks are made of A3 square tube, and the leading rail is made of stainless steel flat steel

Foshan

Respect to Yuan Hengyu

Portal crane

The body is made of SS steel plate, bent and welded

Foshan

Tricyclic

Italian worm gear electromagnetic brake motor is adopted

Italy

Simic

enter port

Electronic control system

The intermediate relay of Omron PLC series is selected in Japan

Shanghai

OMRON

Japan

AC contactor

Shanghai

Schneider

French

frequency transformer

Shanghai

Mitsubishi

Japan

Kunlun Tongtai touch screen

Beijing

Kunlun is in a state of flux

China

thermostat

Digital display temperature control and sensor

Shanghai

OMRON

Japan

cooling-water machine

The compressor is American Taikang compressor or French Myoyle

Guangdong

Dian Electric



For a complete technical solution of Anodizing Oxidation Production Line, please contact me. We will customize the design based on your product technical requirements and factory layout.
