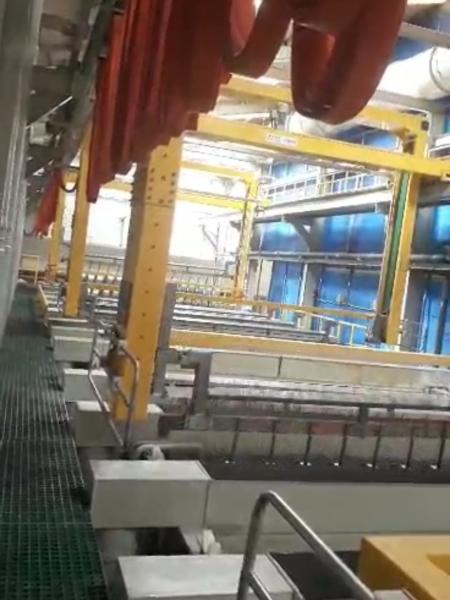

Gantry Structure Anodizing Plant for Heavy Workpieces

Gantry Structure Anodizing Plant Overview:

Our gantry structure anodizing plant is designed for heavy workpieces. It can handle workpieces weighing up to 1000kg. The high - voltage anodizing system creates thick coatings. The automatic loading and unloading mechanism improves efficiency. Ideal for coating large - scale industrial equipment and components.

Partial parameter description of Gantry Structure Anodizing Plant:

7. Recirculation filtration system

The filtration accuracy of the circulating filter device of this production line is 5μ, the flow rate is 30T/H, the filter pump is Taiwan "national treasure" chemical special pump, and the filter bucket is made of PP and SS materials.

8. Oxidized rectifier power supply

This production line adopts the three-phase oil-cooled SCR control rectifier produced by Guangzhou brand "Jia Wei", which has excellent performance with oil-cooled heat dissipation.

main parameter :

Rectifier power: 25V-3000A, three units with stable voltage and current

The rectifier is cooled by oil

For a complete technical solution of Gantry Structure Anodizing Plant, please contact me. We will customize the design based on your product technical requirements and factory layout.

Basic process flow Of Gantry Structure Anodizing Plant:

Feed material → 1 Chemical degreasing → 2 Water washing → 3 Alkali etching → 4 Water washing → 5 Water washing → 6 Acid washing → 7 Water washing → 8 Water washing → 9 Anodizing → 10 Anodizing → 11 Anodizing → 12 Water washing → 13 Water washing → 14 Coloring → 15 Water washing → 16 Coloring → 17 Water washing → 18 Coloring → 19 Water washing → 20 Coloring → 21 Water washing → Unloading

Working conditions Of Gantry Structure Anodizing Plant:

Our typical customers:

Installation and training Of Gantry Structure Anodizing Plant:

1. Installation

1) The seller shall provide all details of the equipment installation to the user in order to prepare the installation site.

2) The seller shall install and debug the equipment at the user's factory site.

2. Training

During the installation, the seller provides on-site training for plant operators, including normal operation, maintenance, analysis of operational problems and emergency procedures.
