Specifications
Brand Name :
Hongshun
Model Number :
HS-1500YH
Certification :
CCC/CE
Place of Origin :
Dongguan
MOQ :
1 set
Price :
$300,000 to $5000,000
Payment Terms :
L/C,T/T
Supply Ability :
5 sets/month
Delivery Time :
75 days
Packaging Details :
film
Workpiece name :
Wheel Rims
Production capacity :
5000 wheel rims per day
Environmental temperature :
0℃~45℃ is most suitable
Relative humidity :
less than or equal to 90%
Water pressure :
0.3Mpa
Main power supply :
380±10%/50HZ
Description

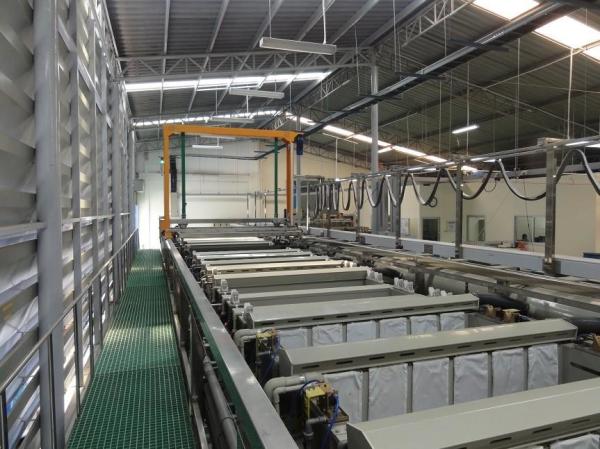

Automotive Anodizing Production System for Wheel Rims


Anodizing Production System Overview:

Our automotive anodizing production system for wheel rims offers high - speed production. It can process 5000 wheel rims per day, creating 200 + finishes. The color - mixing system provides diverse color options. The anti - scratch design protects rims during processing. Meeting OEM requirements, it’s popular among automotive wheel manufacturers.


Partial parameter description of Anodizing Production System:

Tank 15,17,19, and 21:4 coloring tank

1-7-1 structure:

It is made of stainless steel plate bent and welded with SS304 material, with a thickness of 3mm, which ensures that the tank is not deformed, beautiful, non-leakage, corrosion-resistant and easy to maintain. The bottom of the tank is equipped with side drainage port.

1) Tank size: 800 x 4000 x 1600mm (L x W x H)

2) Reinforcement of the tank: 80*40*4mm square tube made of A3 material is welded

3) The thickness of the insulation layer of the tank is 50mm, and the material is 100K rock wool. The outer plate is 1mm thick and 304# stainless steel plate is covered with rivet

4) A set of stainless steel 304 serpentine steam heating tubes are configured in the tank.

5) Two exhaust hoods are arranged on both sides of the tank and connected to the exhaust main pipe.

1-7-2 piping:

1) Pure water pipe: φ3/4" PVC pipe (with PVC ball valve).

2) Drainage pipe: φ3" PVC pipe (with fittings/spherical valve).

3) Stirring: air stirring (φ3/4" PP pipe)

For a complete technical solution of Anodizing Production System, please contact me. We will customize the design based on your product technical requirements and factory layout.


Basic process flow Of Anodizing Production System :

Feed material 1 Chemical degreasing 2 Water washing 3 Alkali etching 4 Water washing 5 Water washing 6 Acid washing 7 Water washing 8 Water washing 9 Anodizing 10 Anodizing 11 Anodizing 12 Water washing 13 Water washing 14 Coloring 15 Water washing 16 Coloring 17 Water washing 18 Coloring 19 Water washing 20 Coloring 21 Water washing Unloading


Working conditions Of Anodizing Production System :

Environmental temperature

0~45is most suitable

Relative humidity

less than or equal to 90%

Water pressure

0.3Mpa

Source of steam

0.2~0.5Mpa

Main power supply

380±10%/50HZ,25V-3000A rectifier,Refrigerator 22.5KW,Filter 8KW



Our typical customers:

Automotive Anodizing Production System for Wheel Rims Automotive Anodizing Production System for Wheel RimsAutomotive Anodizing Production System for Wheel Rims


Installation and training Of Anodizing Production System :

1. Installation

1) The seller shall provide all details of the equipment installation to the user in order to prepare the installation site.

2) The seller shall install and debug the equipment at the user's factory site.

2. Training

During the installation, the seller provides on-site training for plant operators, including normal operation, maintenance, analysis of operational problems and emergency procedures.
