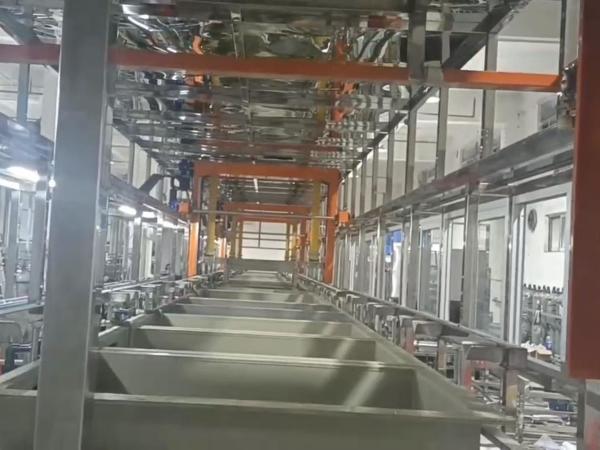

Titanium Anodizing Equipment for Aerospace Parts

Titanium Anodizing Equipment Overview:

Engineered for aerospace parts, our titanium anodizing equipment creates high - strength coatings. It can withstand extreme conditions, forming durable oxide layers on titanium alloys. The AI - controlled system adjusts parameters in real - time, ensuring precision. With a large - size processing capacity, it meets the strict requirements of the aerospace industry.

Partial parameter description of Anodizing Equipment:

Tank 4: Alkali etching tank

1-4-1 structure:

1) Inner tank size: 800×4000×1600mm (L×W×H)

2) Made of Taiwan Lida 15mm PP material to ensure that the tank is not deformed, does not leak, has good corrosion resistance and beautiful appearance. The bottom of the tank is set with side drainage.

3) Reinforcement of the tank: A3 material 80×40×4mm square tube is used, and 6mm PP plate of the same color is welded after three layers of rust prevention.

4) Reinforcement of the tank edge: chamfer welding of PP material with a thickness of 15mm and the same color

5) Two exhaust hoods are arranged on both sides of the tank and connected to the exhaust main pipe.

6) A separately manufactured exhaust hood is installed at the top of the tank and connected to the exhaust main pipe)

7) A set of SS serpentine steam heating tubes (on both sides) are arranged in the tank.

1-4-2 piping:

1) Inlet pipe: Ø3/4" PVC pipe (with fittings/spherical valve)

2) Drainage pipe: Ø3 "" PVC pipe (with fittings/spherical valve)

3) Stirring: air stirring (Ø3/4" PP pipe)

For a complete technical solution of Anodizing Equipment, please contact me. We will customize the design based on your product technical requirements and factory layout.

Basic process flow Of Anodizing Equipment :

Feed material → 1 Chemical degreasing → 2 Water washing → 3 Alkali etching → 4 Water washing → 5 Water washing → 6 Acid washing → 7 Water washing → 8 Water washing → 9 Anodizing → 10 Anodizing → 11 Anodizing → 12 Water washing → 13 Water washing → 14 Coloring → 15 Water washing → 16 Coloring → 17 Water washing → 18 Coloring → 19 Water washing → 20 Coloring → 21 Water washing → Unloading

Working conditions Of Anodizing Equipment :

Our typical customers:

Installation and training Of Anodizing Equipment :

1. Installation

1) The seller shall provide all details of the equipment installation to the user in order to prepare the installation site.

2) The seller shall install and debug the equipment at the user's factory site.

2. Training

During the installation, the seller provides on-site training for plant operators, including normal operation, maintenance, analysis of operational problems and emergency procedures.
